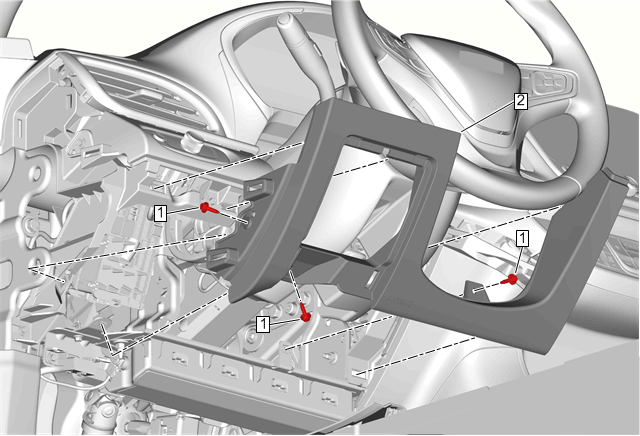

Instrument Panel Knee Bolster Replacement

Callout	Component Name
Preliminary Procedure Instrument Panel Outer Trim Cover Replacement Instrument Panel Fuse Block Access Hole Cover Replacement Front Floor Console Applique Replacement - Left Side
1	Instrument Panel Knee Bolster Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Knee Bolster Procedure Use a flat bladed plastic trim tool.

Callout

Component Name

Preliminary Procedure

Instrument Panel Knee Bolster Bolt [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Knee Bolster
Procedure
Use a flat bladed plastic trim tool.
