Instrument Panel Compartment Replacement

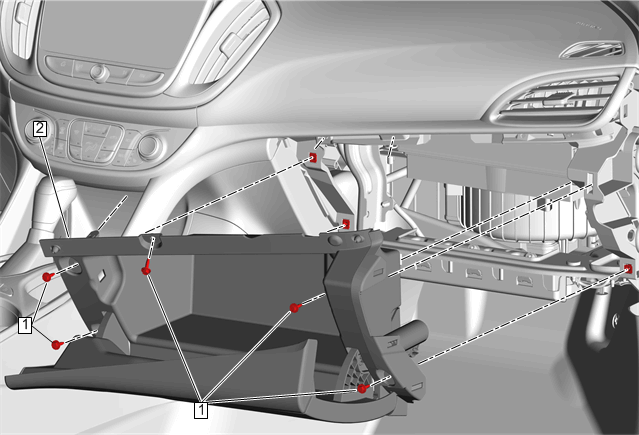

Callout	Component Name
Preliminary Procedure Instrument Panel Outer Trim Cover Replacement
1	Instrument Panel Compartment Bolt [5x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Compartment Procedure Release the retaining tab. Release the retainer. Transfer components as necessary.

Callout

Component Name

Instrument Panel Compartment Bolt [5x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Compartment

Procedure
