Removal Procedure
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Injection Fuel Rail Assembly Replacement - Remove
- Fuel Feed Intermediate Pipe Replacement - Remove
- Ignition Coil Replacement - Remove
- Vacuum Pump Assembly Replacement - Remove
- Air Cleaner Assembly Replacement - Remove
Remove the wiring harness fasteners (1) then reposition the wiring harness (2) as needed.
- Disconnect and reposition remaining wiring harness connectors as needed.
- Air Cleaner Outlet Duct Replacement - Remove
- NOTE:
The PCV valve and tube assembly (2) are not reusable. If reinstalling the camshaft cover, do not remove the PCV valve and tube assembly (2) from the camshaft cover.
Remove the PCV valve tube fastener (1).
- Turbocharger Coolant Return Pipe Replacement (LE2)Turbocharger Coolant Return Pipe Replacement (LUV) - Remove
- Engine Lift Front Bracket Replacement - Remove
- Engine Lift Rear Bracket Replacement - Remove
- Remove the engine oil level indicator.
- NOTE:
Note the location of the two camshaft cover double end fasteners (1) for correct installation.

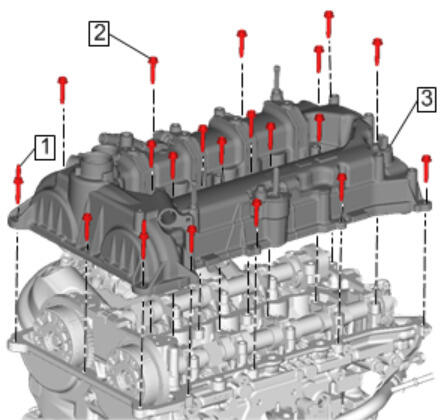

Remove the camshaft cover fasteners (1) and (2) then remove the camshaft cover (3).
- Camshaft Position Actuator Solenoid Valve Replacement - Intake - Remove
- Camshaft Position Actuator Solenoid Valve Replacement - Exhaust - Remove
- Camshaft Position Sensor Replacement - Intake - Remove
- Camshaft Position Sensor Replacement - Exhaust - Remove
Remove and DISCARD the camshaft cover gaskets (1) from the camshaft cover (2).
- If reinstalling the camshaft cover, clean and inspect the cover then transfer components as needed.
