Camshaft Position Sensor Replacement - Exhaust
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

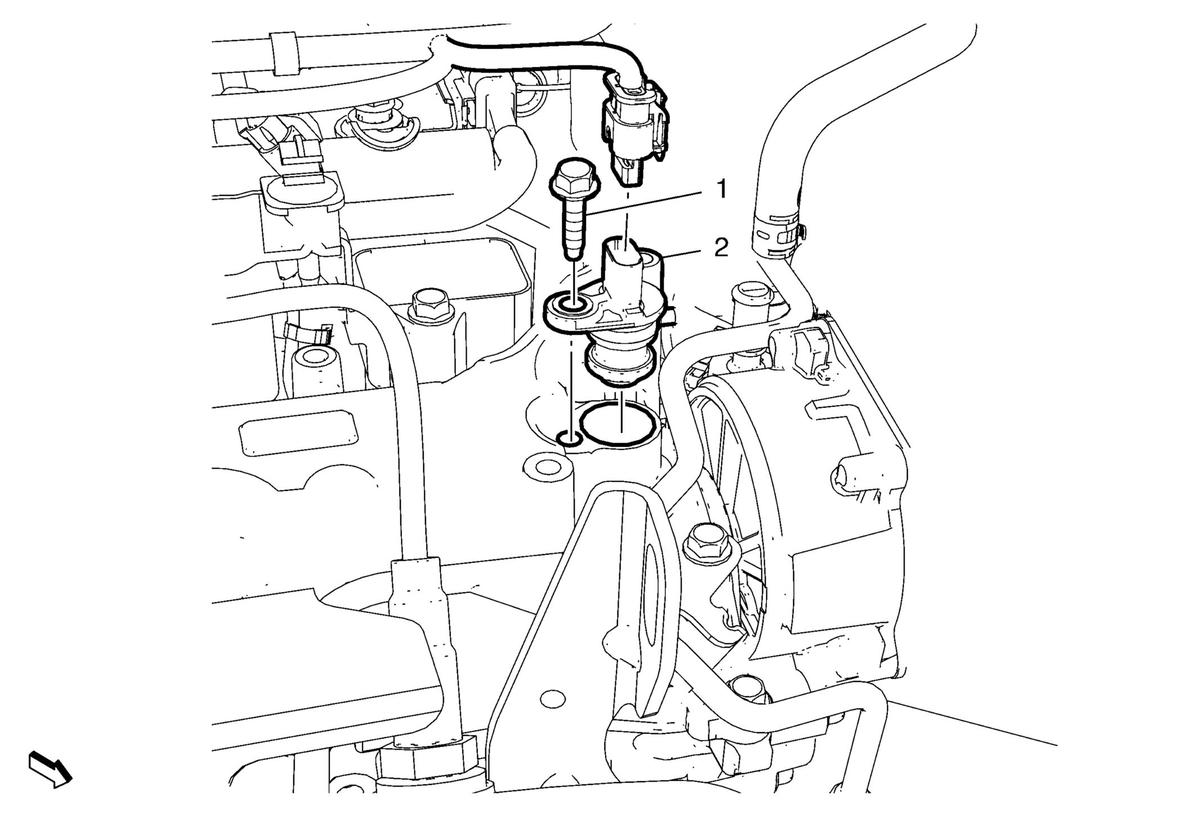

| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Manifold Cover Replacement |
|
| 1 | Camshaft Position Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Camshaft Position Sensor Procedure
|
