Air Cleaner Outlet Duct Replacement
WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

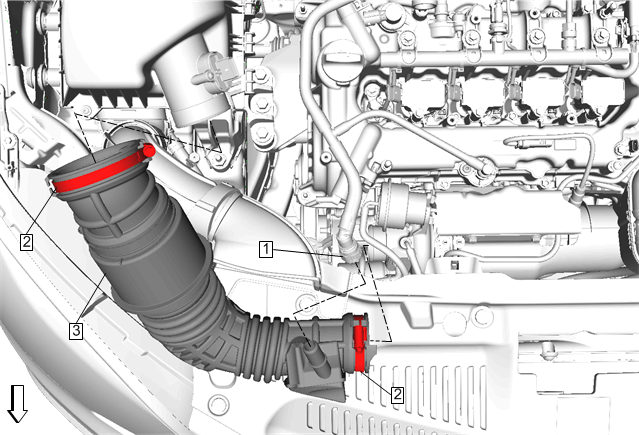

| Callout | Component Name |
|---|---|
| 1 | Positive Crankcase Ventilation Tube Procedure PCV Tube @ Air Cleaner Outlet Duct - Disconnect - Plastic Collar Quick Connect Fitting Service |
| 2 | Air Cleaner Outlet Duct Clamp [2x]
CAUTION:
Refer to Fastener Caution .
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 3 N.m (27 lb in) |
| 3 | Air Cleaner Outlet Duct Procedure Perform the intake system learned values reset. Intake System Learned Values Reset |
