Camshaft Position Actuator Solenoid Valve Replacement - Exhaust

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

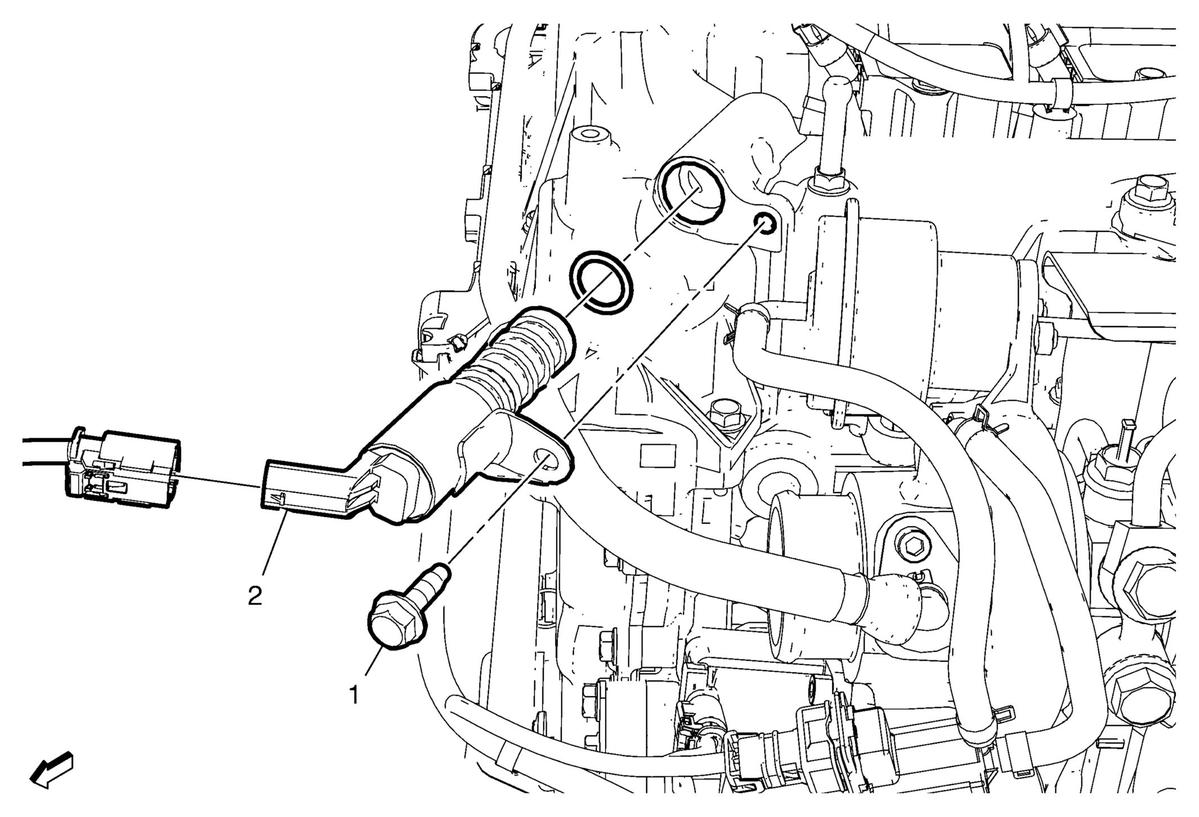

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Disconnect the electrical connector.
1	Camshaft Position Actuator Solenoid Valve Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Solenoid Valve Procedure Install a NEW seal.

Callout

Component Name

Preliminary Procedures

Intake Manifold Cover Replacement
Disconnect the electrical connector.

Camshaft Position Actuator Solenoid Valve Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Camshaft Position Actuator Solenoid Valve
Procedure
Install a NEW seal.
