Quarter Lower Rear Trim Panel Replacement

Preliminary Procedures

1. Remove the load floor front trim panel support. Refer to Load Floor Front Trim Panel Support Replacement (Buick) Load Floor Front Trim Panel Support Replacement (Chevrolet) .
2. Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
3. Remove the load floor panel rear extension panel. Refer to Load Floor Panel Rear Extension Panel Replacement (Buick) Load Floor Panel Rear Extension Panel Replacement (Chevrolet) .
4. Remove the luggage shade. Refer to Luggage Shade Replacement (Buick) Luggage Shade Replacement (Chevrolet) .
5. Remove the rear side door step mat retainer. Refer to Rear Side Door Step Mat Retainer Replacement .
6. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40%)Rear Seat Back Cushion Removal and Installation (60%) .

Procedure

1. Release the rear seat belt anchor bracket from the rear seat.

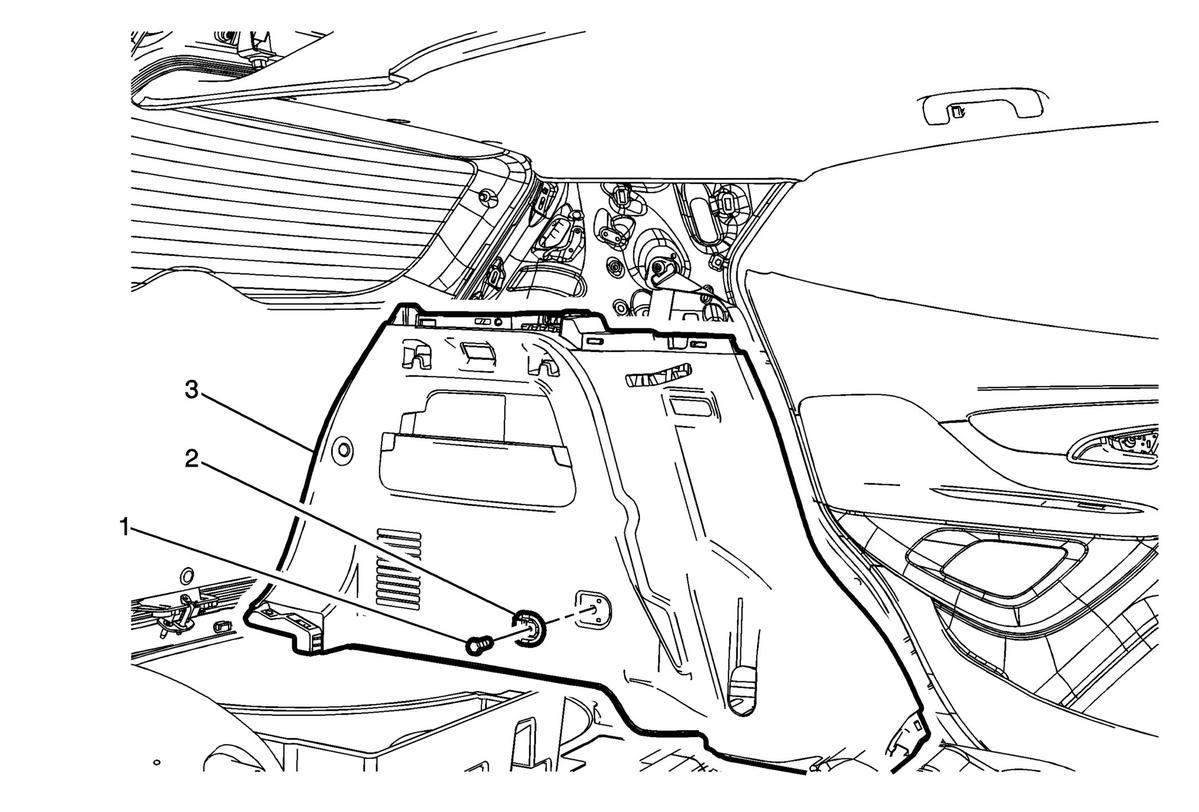

2. Use a flat-bladed plastic trim tool to release the quarter lower rear trim panel from the quarter inner panel.
3. Disconnect the electrical connectors.
