Load Floor Panel Rear Extension Panel Replacement (Buick)

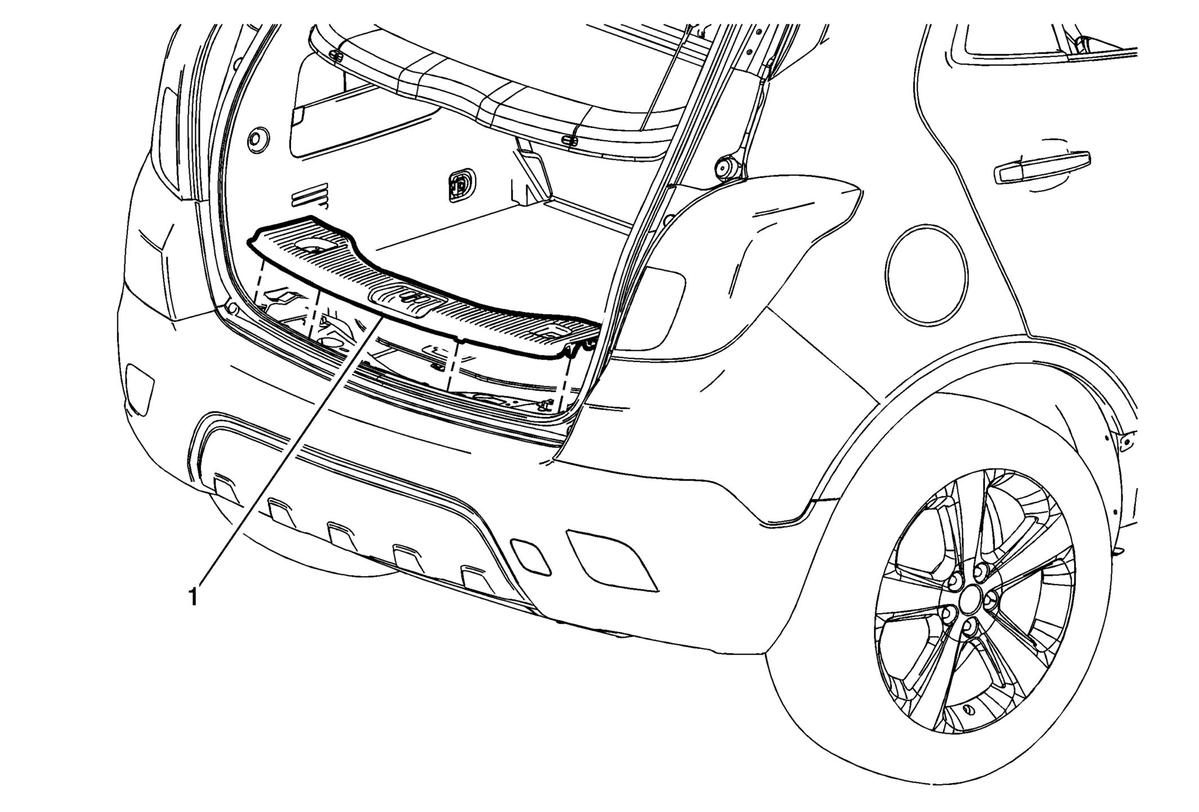

GM2790951
Callout Component Name
Preliminary Procedure
Remove the cargo tie down hooks. Refer to Cargo Tie Down Loop Replacement (Buick) .
1 Load Floor Panel Rear Extension Panel Assembly
Procedure
Grasp and gently pull up on the load floor panel rear extension panel in order to release the integral retaining clips.
