Luggage Shade Replacement (Chevrolet)

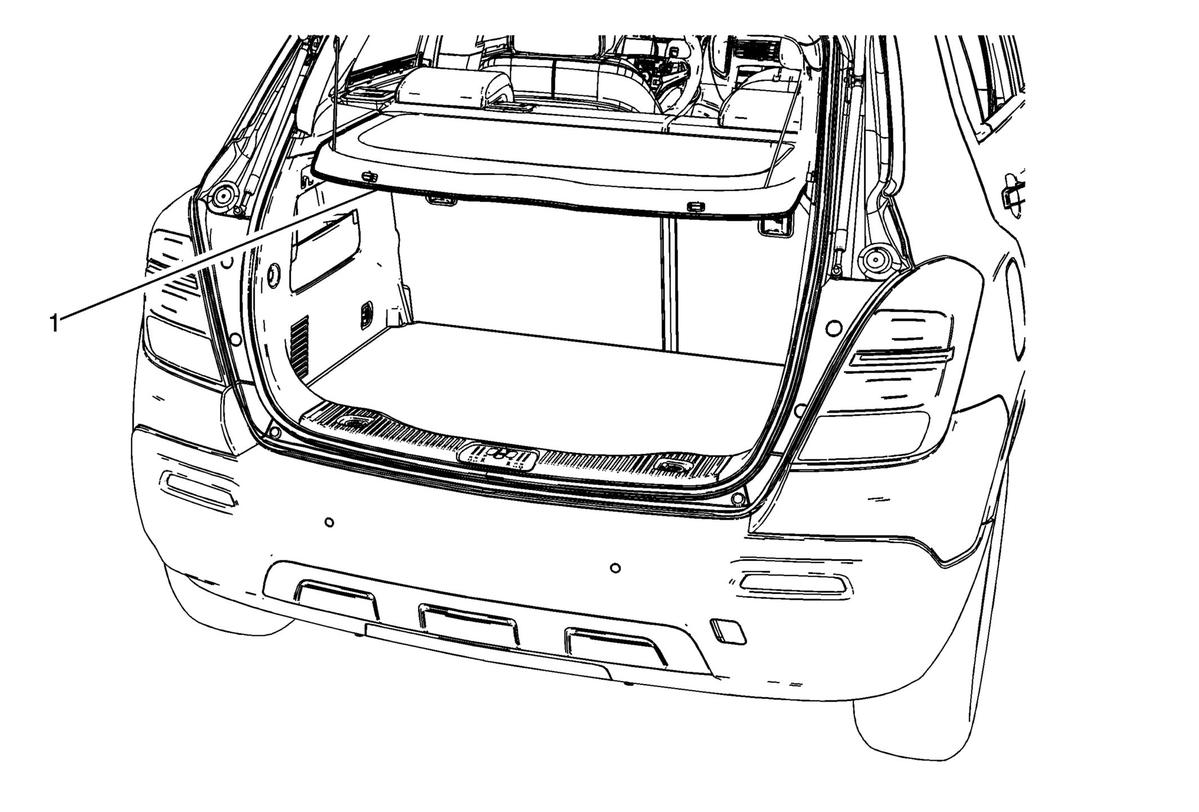

GM2884272
Callout Component Name
1 Luggage Shade Assembly

Procedure

  1. Release the luggage shade straps from the liftgate.
  2. Pull gently upon the luggage shade to disengage from the body lock pillar upper trim panel. Release the luggage shade from the pivot supports.
