Front Seat Cushion Center Frame Replacement

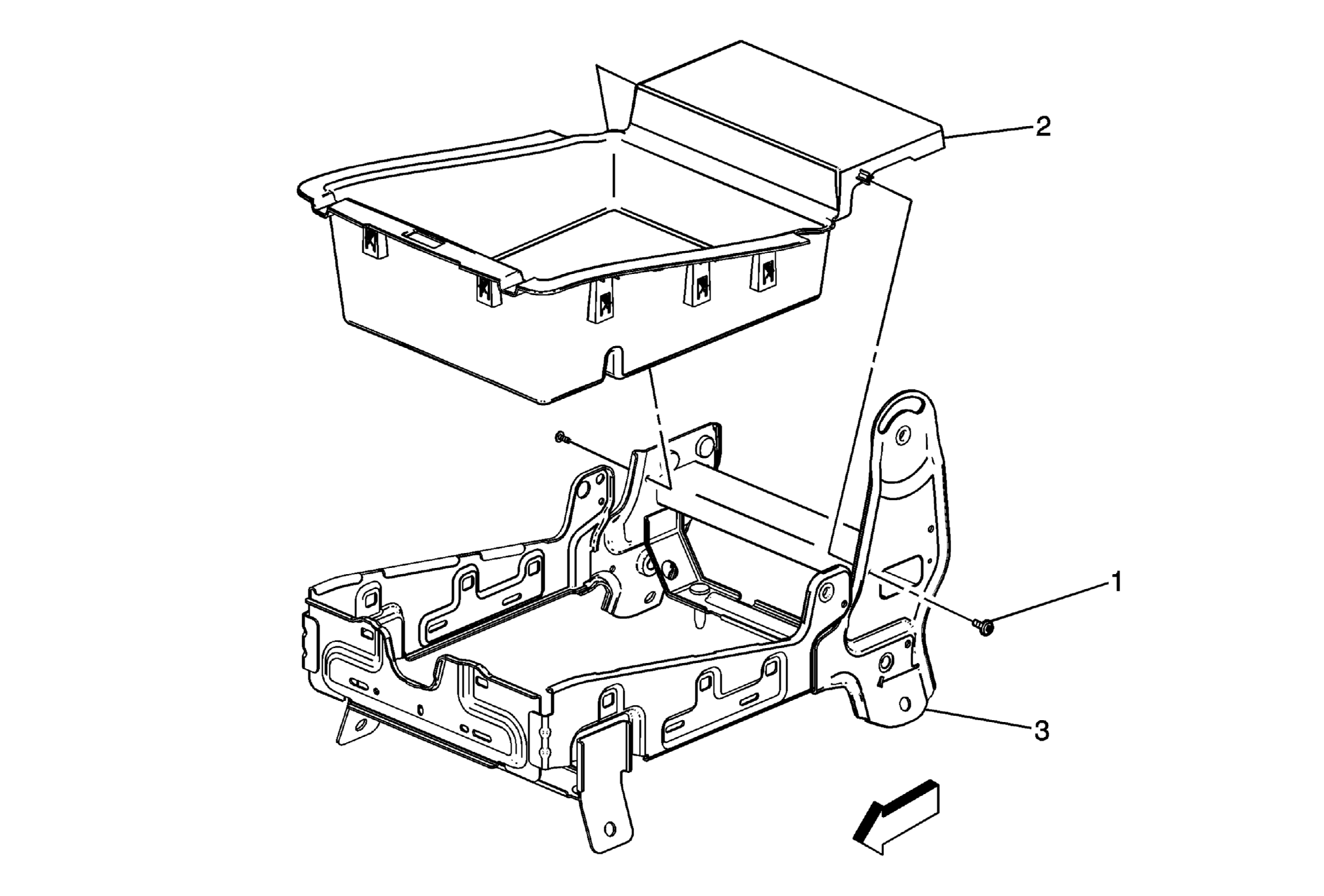

Fig 1: Front Seat Cushion Center Frame
GM3271910Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front seat cushion center cover. Refer to Front Seat Cushion Center Cover Replacement .
  2. Remove the front center seat back cushion latch. Refer to Front Center Seat Back Cushion Latch Replacement .
  3. Remove the front seat center armrest hinge finish inner cover. Refer to Front Seat Center Armrest Hinge Finish Inner Cover Replacement .
1 Front Seat Cushion Center Frame Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Front Seat Cushion Center Storage Bin
3 Front Seat Cushion Center Frame
