Front Seat Cushion Center Cover Replacement

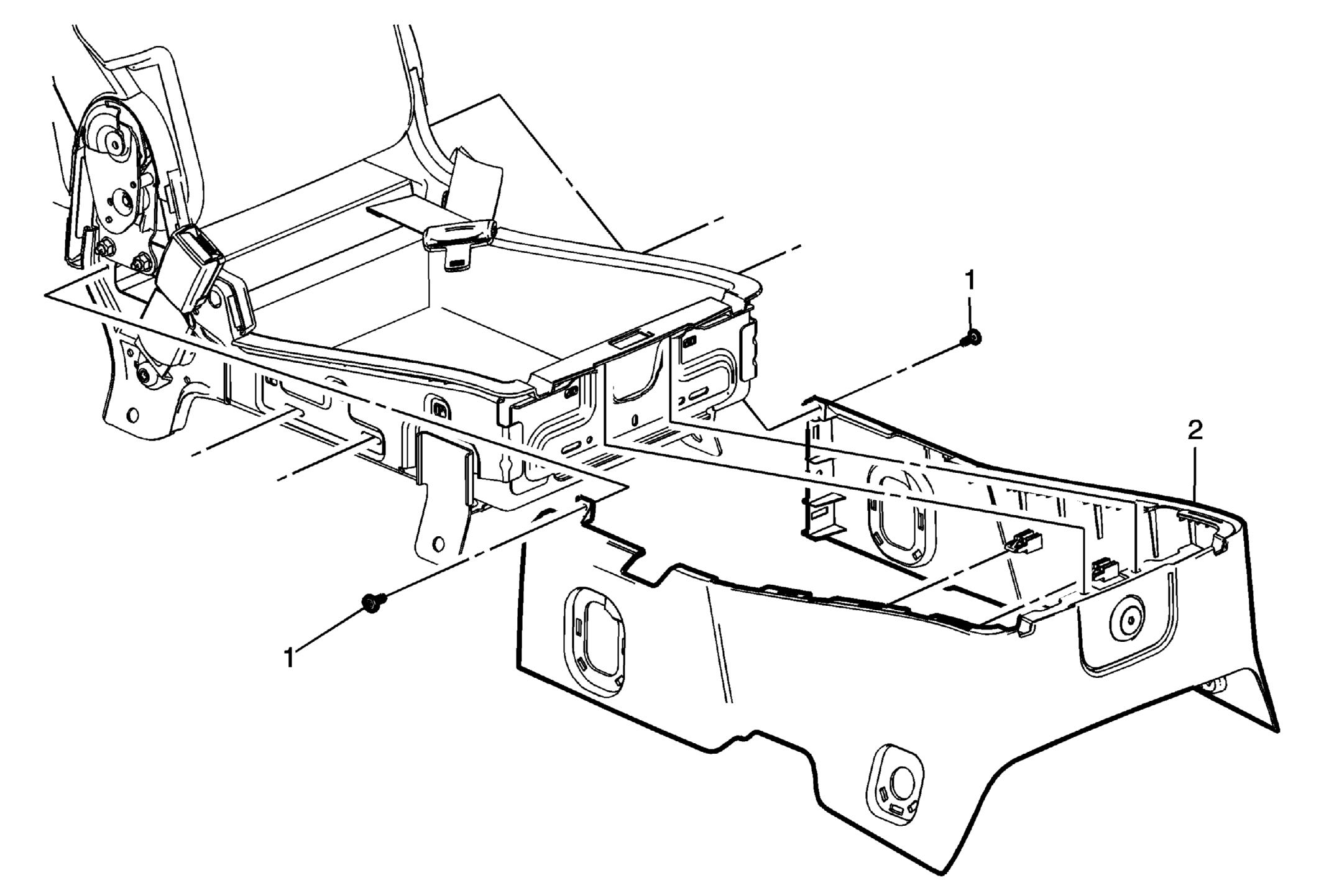

Fig 1: Front Seat Cushion Center Cover
GM3268468Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front center seat. Refer to Front Center Seat Removal and Installation .
  2. Remove the front seat cushion rear frame center cover. Refer to Front Seat Cushion Rear Frame Center Cover Replacement .
  3. Remove the front seat center armrest hinge finish cover. Refer to Front Seat Center Armrest Hinge Finish Cover Replacement .
  4. Remove the front seat cushion center pad. Refer to Front Seat Cushion Center Pad Replacement .
1 Front Seat Cushion Center Cover Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Front Seat Cushion Center Cover

Procedure

  1. Pull downward on the front of the cushion center cover to disengage it from the storage bin.
  2. Pull outward on the cushion center cover sides to disengage it from the center seat frame.
  3. Pull forward to disengage the remaining retainers.
