Front Seat Center Armrest Hinge Finish Inner Cover Replacement

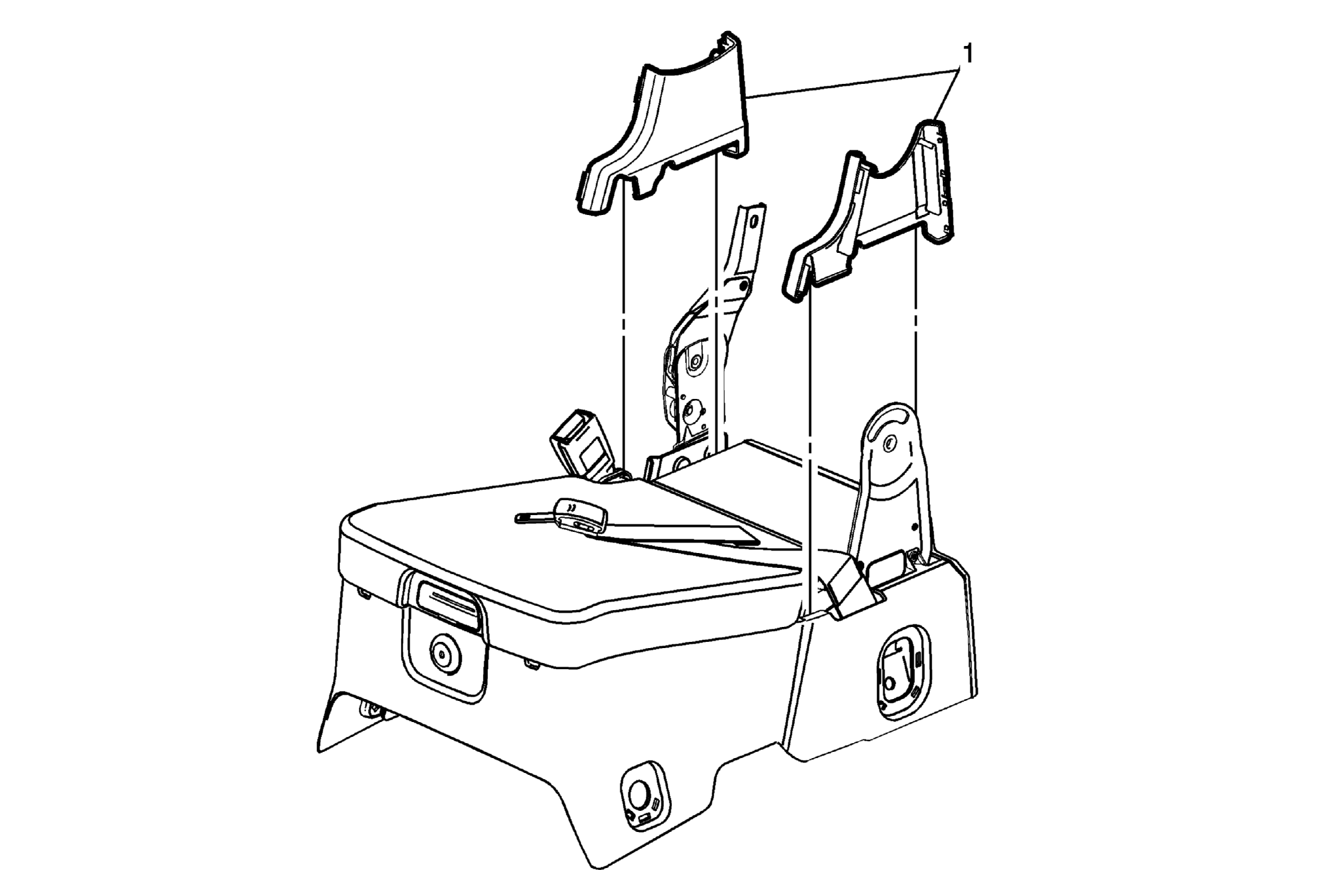

Fig 1: Front Seat Center Armrest Hinge Finish Inner Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front seat center armrest. Refer to Front Seat Center Armrest Replacement .
1	Front Seat Center Armrest Hinge Finish Inner Cover (Qty: 2) Procedure  Use a flat bladed tool to release the plastic tabs attaching the inner finish cover to the outer finish cover.
