Front Center Seat Back Cushion Latch Replacement

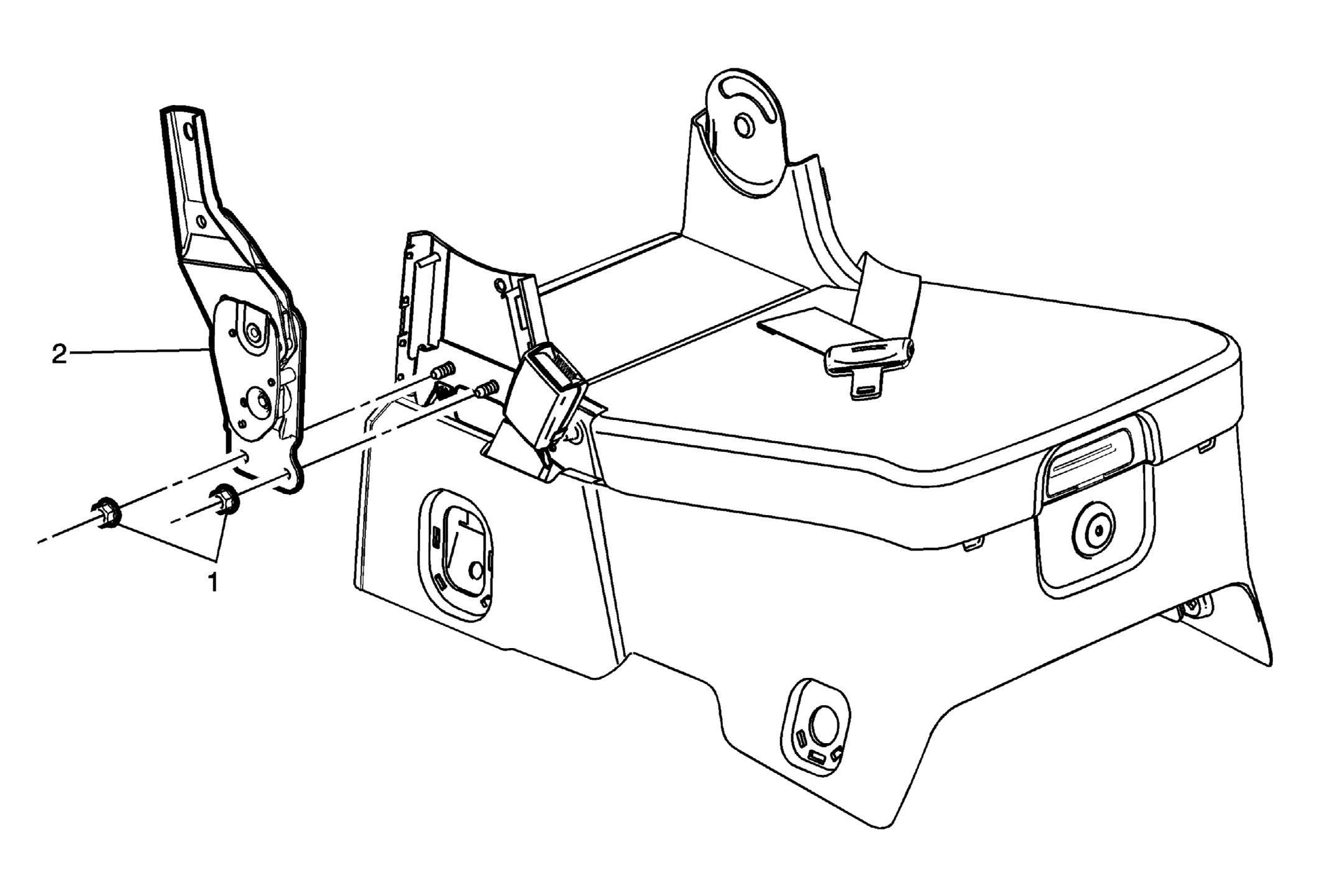

Fig 1: Front Center Seat Back Cushion Latch (Except HP5)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front seat center armrest. Refer to Front Seat Center Armrest Replacement .
1	Front Center Seat Back Cushion Latch Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Center Seat Back Cushion Latch
