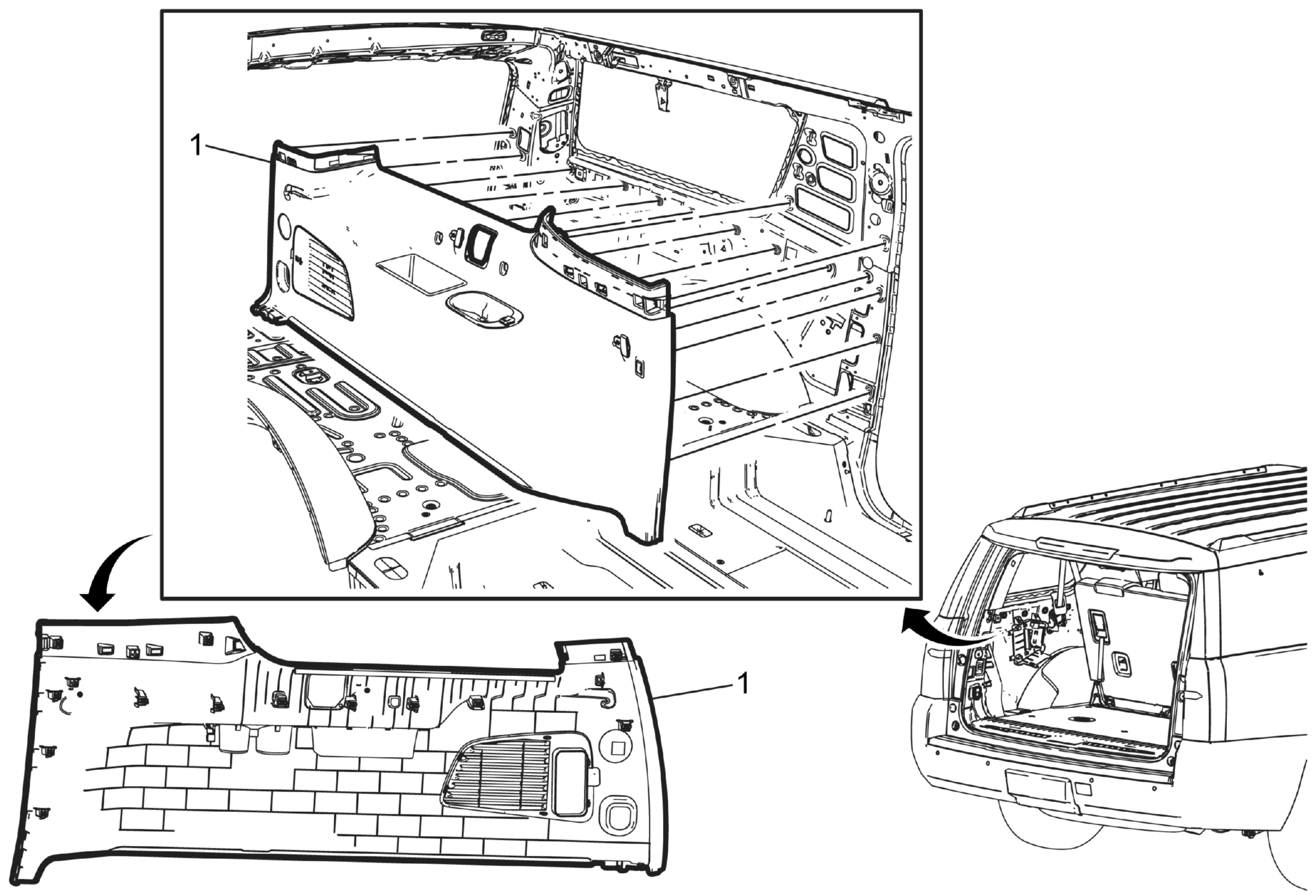

Quarter Lower Rear Trim Panel Replacement (Left Side, Extended Wheelbase)

Preliminary Procedures

1. Disable roof rail SIR system. Refer to SIR Disabling and Enabling .
2. Remove the luggage shade. Refer to Luggage Shade Replacement .
3. Remove third row seats. Refer to 3rd Row Seat Removal and Installation .
4. Remove the rear seat belt retractor lower anchor. Refer to Rear Seat Belt Retractor Replacement (Long Wheelbase) .
5. Remove the third row seat belt retractor lower anchor. Refer to 3rd Row Seat Belt Retractor Replacement (Long Wheelbase) .
6. Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
7. Remove the body rear corner upper garnish molding. Refer to Body Rear Corner Upper Garnish Molding Replacement (Extended Wheelbase) .
8. Remove the rear side door sill garnish molding. Refer to Rear Side Door Sill Garnish Molding Replacement .
9. Remove the cargo tie down loops. Refer to Cargo Tie Down Loop Replacement .
10. Remove the liftgate sill garnish molding. Refer to Liftgate Sill Garnish Molding Replacement .

Procedure

1. Open the liftgate.
2. Disconnect the electrical connector.
