Luggage Shade Replacement

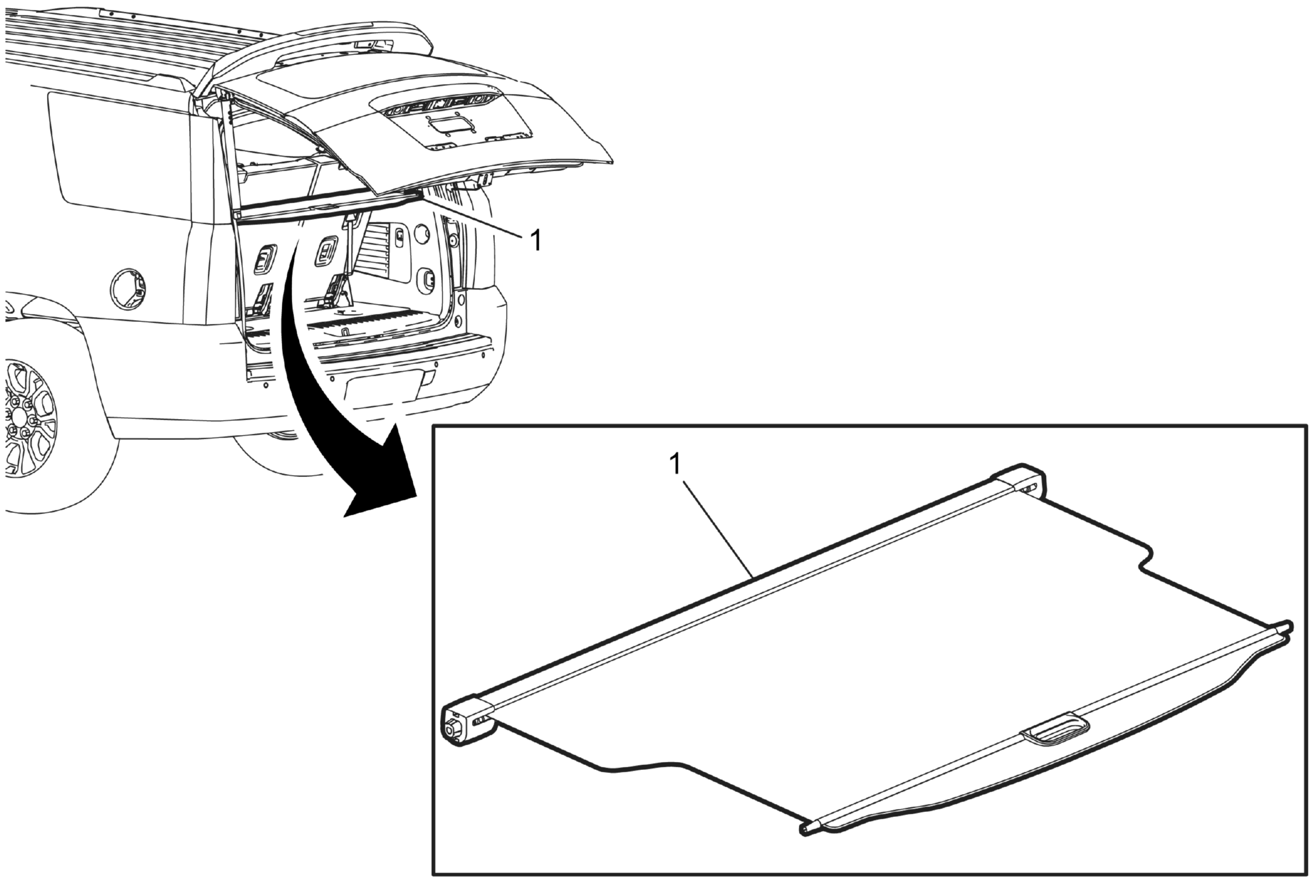

Fig 1: Luggage Shade
GM3636971Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Luggage Shade Assembly

Procedure

  1. Lift up on the luggage shade to disengage from the quarter lower rear trim panel.
  2. Maneuver the luggage shade assembly from the vehicle.
