Body Lock Pillar Upper Trim Panel Replacement

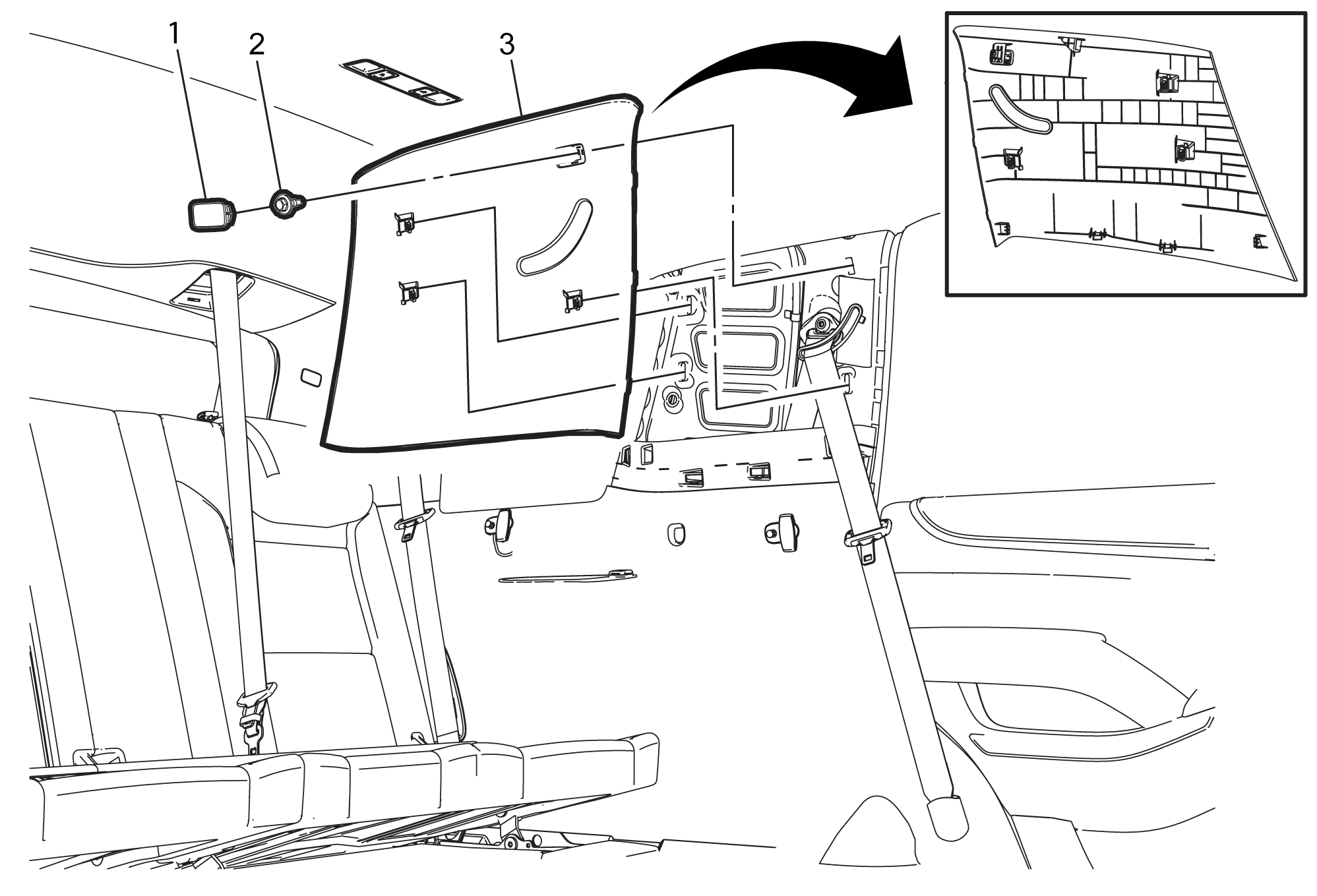

Fig 1: Body Lock Pillar Upper Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the rear seat belt anchor bolt. Refer to Rear Seat Belt Retractor Replacement (Long Wheelbase)Rear Seat Belt Retractor Replacement (Short Wheelbase) .
1	Body Lock Pillar Upper Trim Panel Cover
2	Body Lock Pillar Upper Trim Panel Fastener CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Body Lock Pillar Upper Trim Panel Assembly Procedure Route the seat belt through the opening in the body lock pillar upper trim panel.
