Cargo Tie Down Loop Replacement

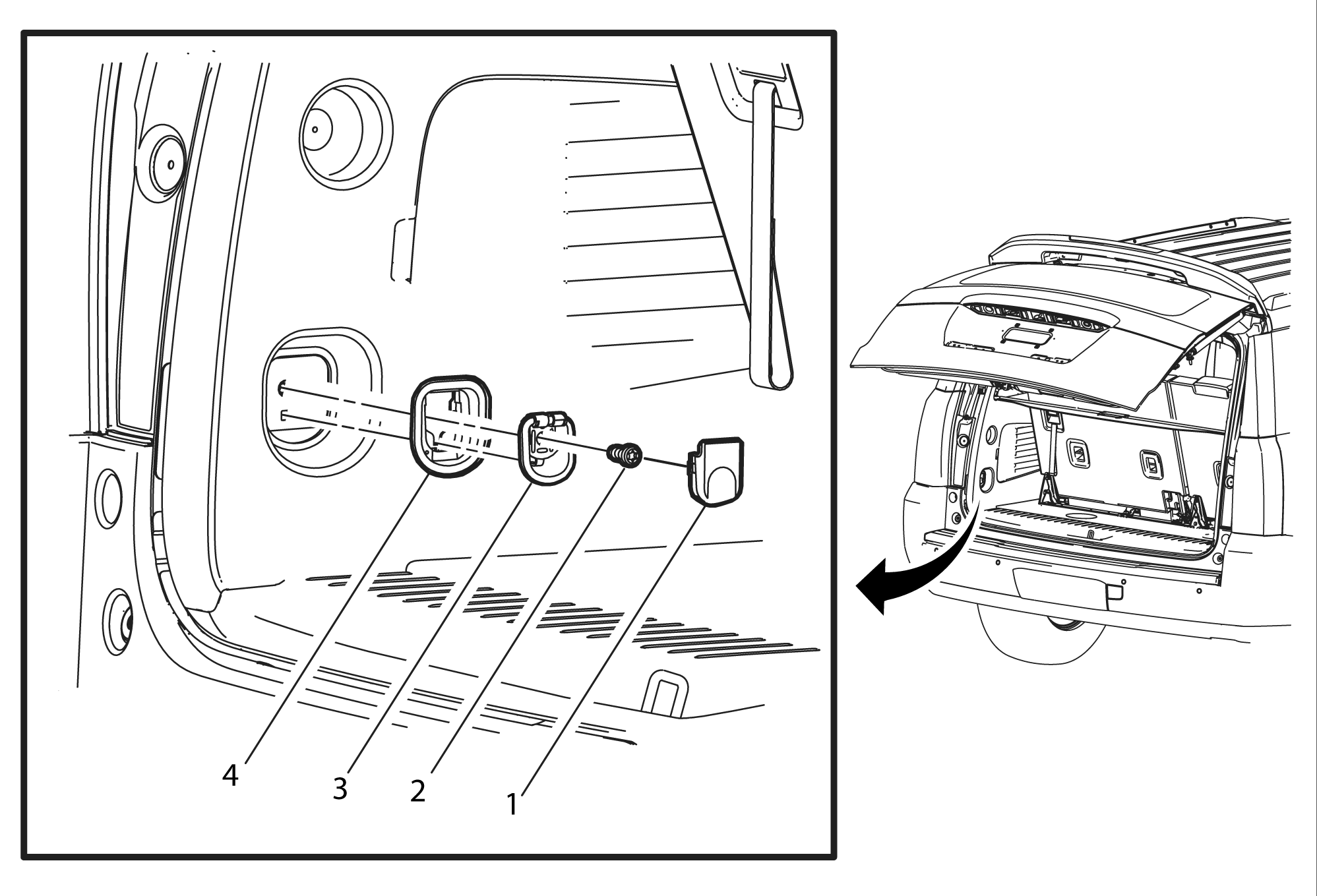

Fig 1: Cargo Tie Down Loop

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Cargo Tie Down Loop Bolt Cap
2	Cargo Tie Down Loop Fastener CAUTION: Refer to Fastener Caution . Procedure Remove the cargo tie down loop bolt cap to access the fastener. Tighten 20 N.m (15 lb ft)
3	Cargo Tie Down Loop Assembly
4	Cargo Tie Down Loop Bezel
