Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
An audible click will be heard when the clip (arrows) is correctly seated.

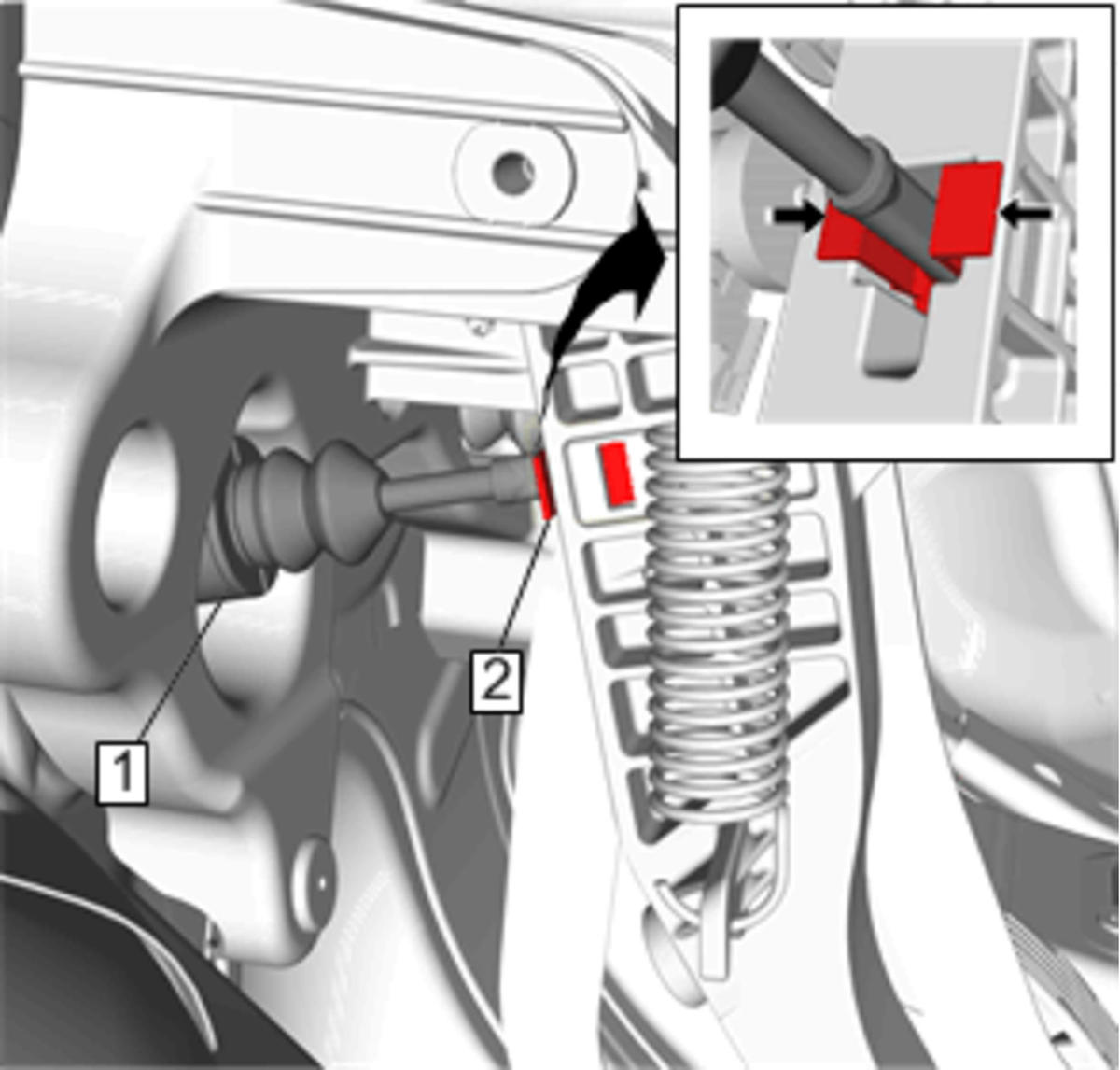

Install the clutch master cylinder (1) into the brake pedal assembly.
Connect the push rod retainer (2) to the clutch pedal.
Install the clutch pedal position sensor. Refer to Clutch Pedal Position Sensor Replacement .
Install the clutch pedal return spring. Refer to Clutch Pedal Return Spring Replacement (Left Hand Drive) Clutch Pedal Return Spring Replacement (Right Hand Drive) .
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

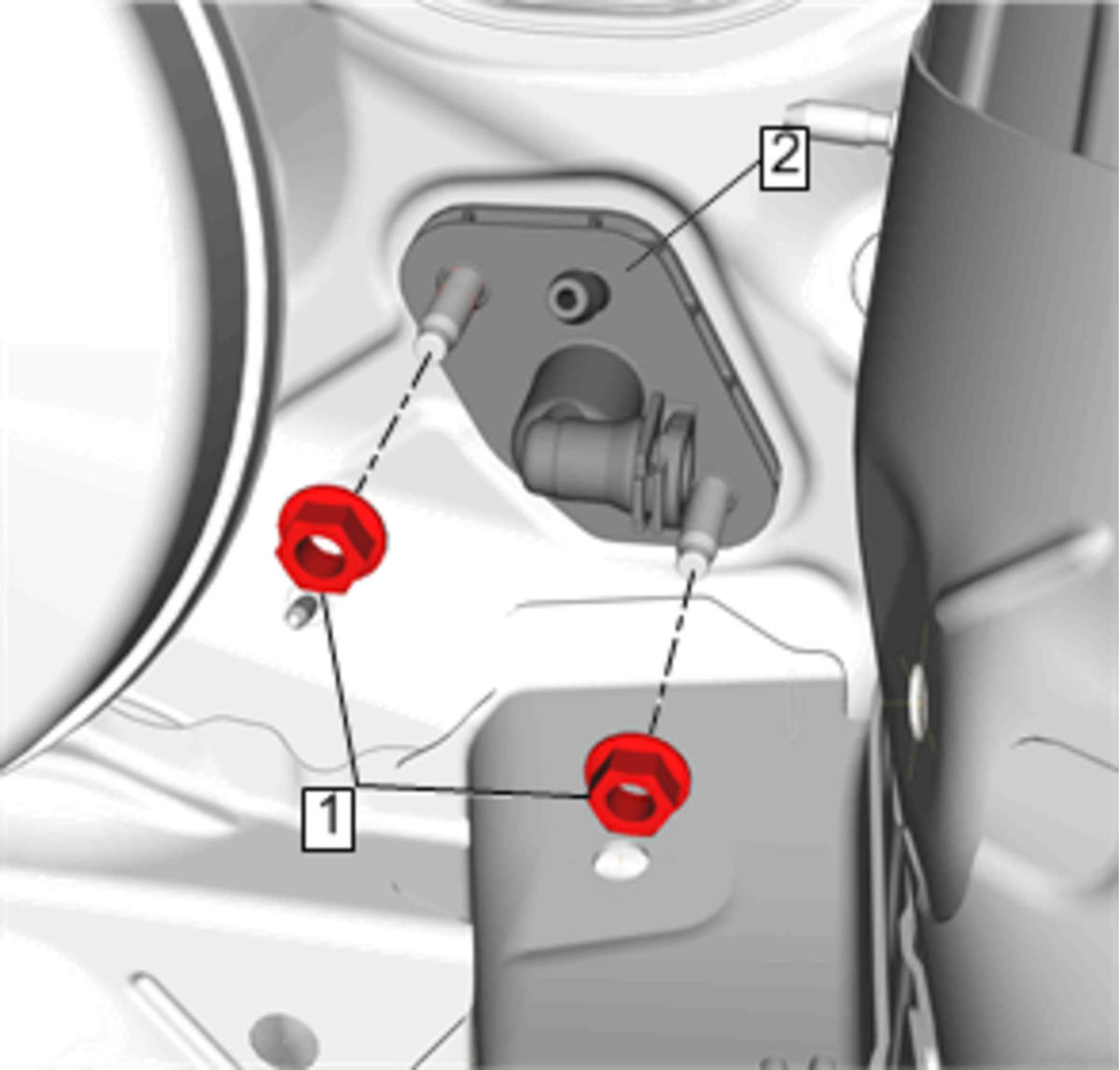

Install the 2 clutch master cylinder mount nuts (1) and tighten to 22 N.m (16 lb ft).
Courtesy of GENERAL MOTORS COMPANY

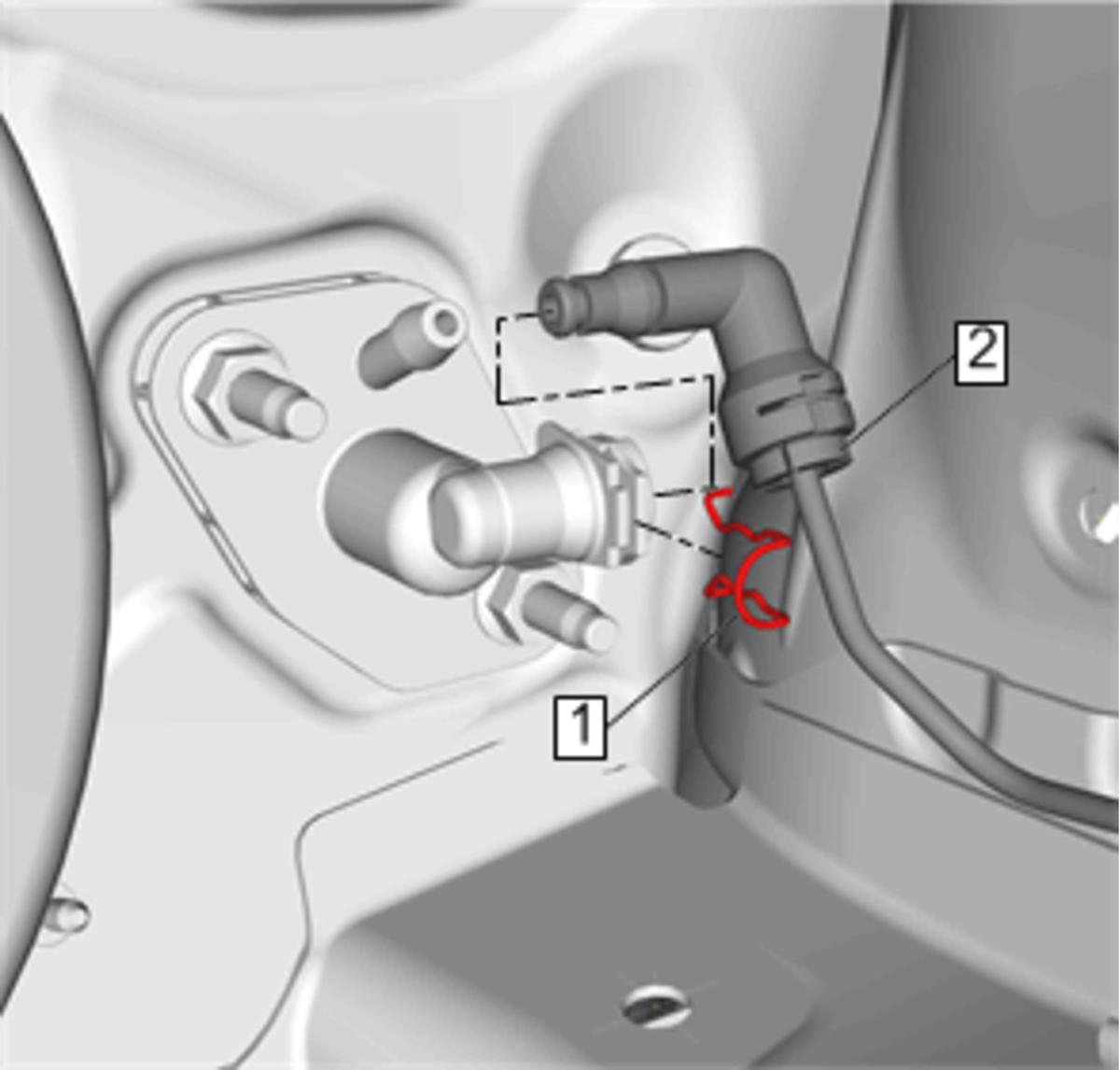

Connect the clutch actuator cylinder front pipe (2) to the clutch master cylinder.
Install the retaining clip (1).
Courtesy of GENERAL MOTORS COMPANY

Install the clutch actuator cylinder front pipe (2) to the retainers (1).
Install the clutch master cylinder reservoir hose to the clutch master cylinder. Refer to Clutch Master Cylinder Reservoir Hose Replacement (Left Hand Drive) Clutch Master Cylinder Reservoir Hose Replacement (Right Hand Drive) .
Install the brake pressure modulator valve bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement .
Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding .
Install the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
