Clutch Pedal Position Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

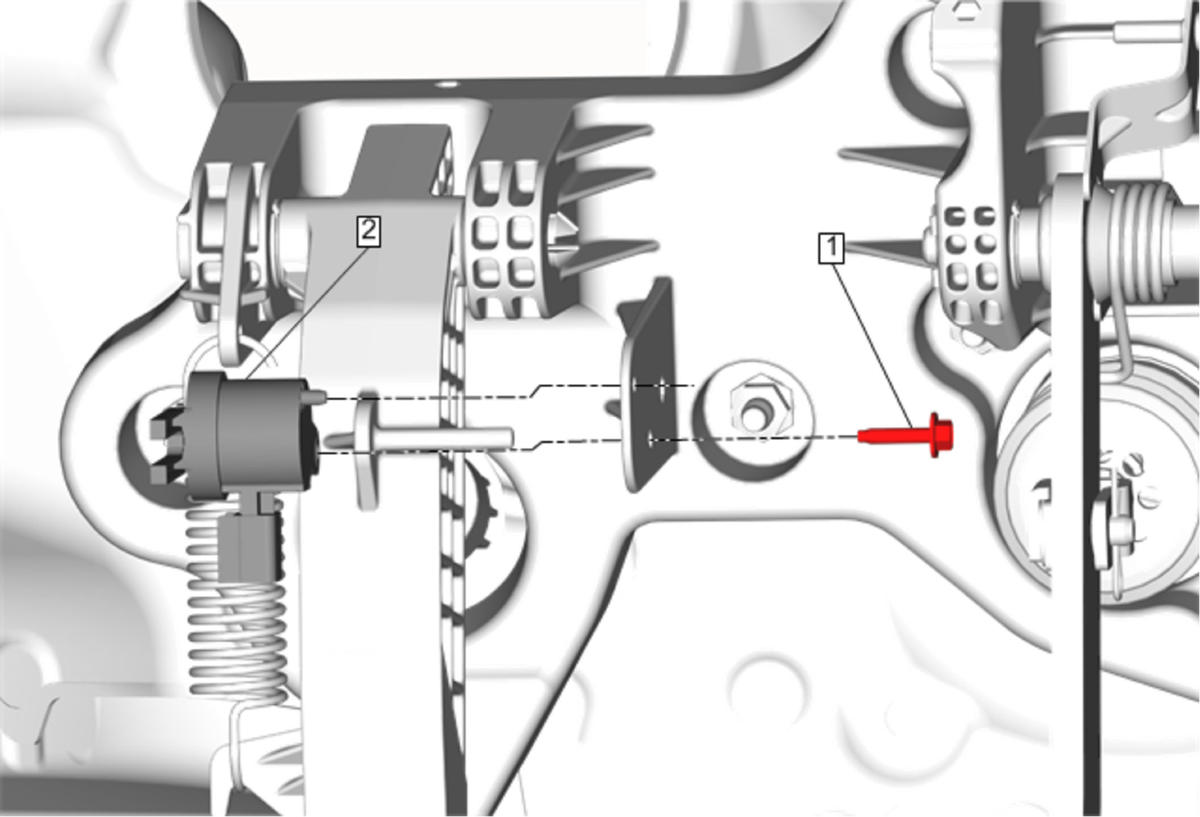

Callout	Component Name
1	Clutch Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Clutch Pedal Position Sensor Procedure Disconnect the electrical connector. Learn the clutch pedal position sensor. Clutch Pedal Position Learn

Callout

Component Name

Clutch Pedal Position Sensor Bolt

CAUTION:

Tighten
3 N.m (27 lb in)

Clutch Pedal Position Sensor

Procedure
