Hydraulic Clutch System Bleeding
Refer to Brake Fluid Irritant Warning .
Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
The hydraulic clutch actuation must only be bled from "below", i.e. from the bleeder valve.
- NOTE:
The following operational stages must be undertaken to fill the pressure line between the master cylinder and the clutch actuator cylinder. When bleeding, ensure that the brake fluid reservoir is always full and does not run dry.
Bleed pressure line between the clutch master cylinder and the clutch actuator cylinder using the following procedure:

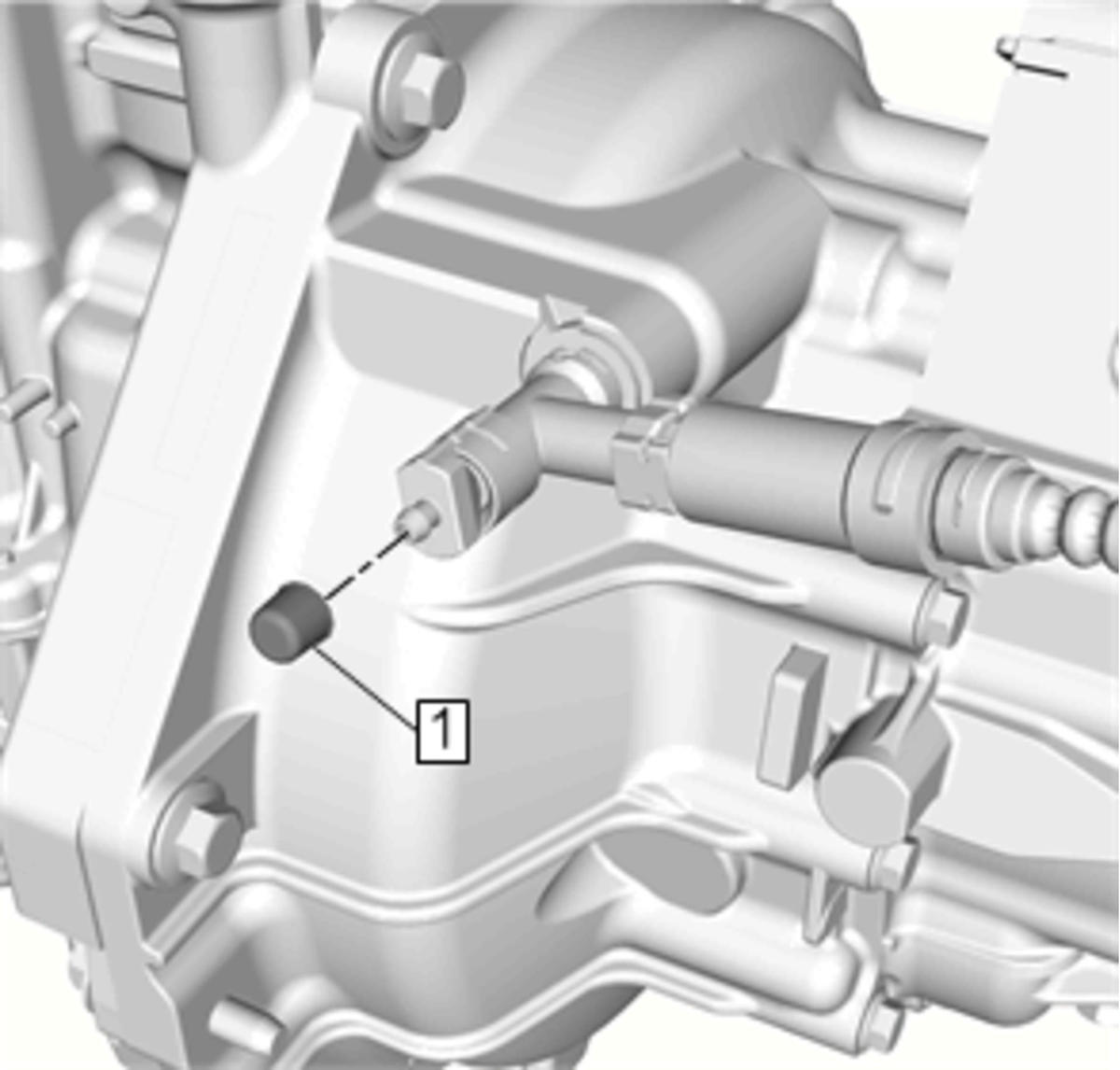

- Remove the valve cap (1) from the bleeder valve.
- Fill brake fluid reservoir up to "MAX" marking.
- Press and hold clutch pedal.
- Open bleeder valve until air or air/brake fluid mixture emerges.
- Close the bleeder valve.
- Release the clutch pedal slowly.
- Wait approximately 5 seconds.
- Repeat this bleeding process 4 times.
- Push valve cap (1) on to bleeder valve to protect the bleeder valve.
NOTE:Do not close the bleeder valve too fast.
- Check shifting for ease of movement with vehicle stationary, with engine running and with clutch disengaged.
- Ensure that the fluid reservoir is at the correct level.
- Road test the vehicle to ensure proper operation.
Undertake road test using varying RPM ranges and frequent gear changes, bring vehicle to operating temperature during this process. Ensure the brake and clutch system is operating correctly.
