Clutch Pedal Return Spring Replacement (Right Hand Drive)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right side floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) . |
|

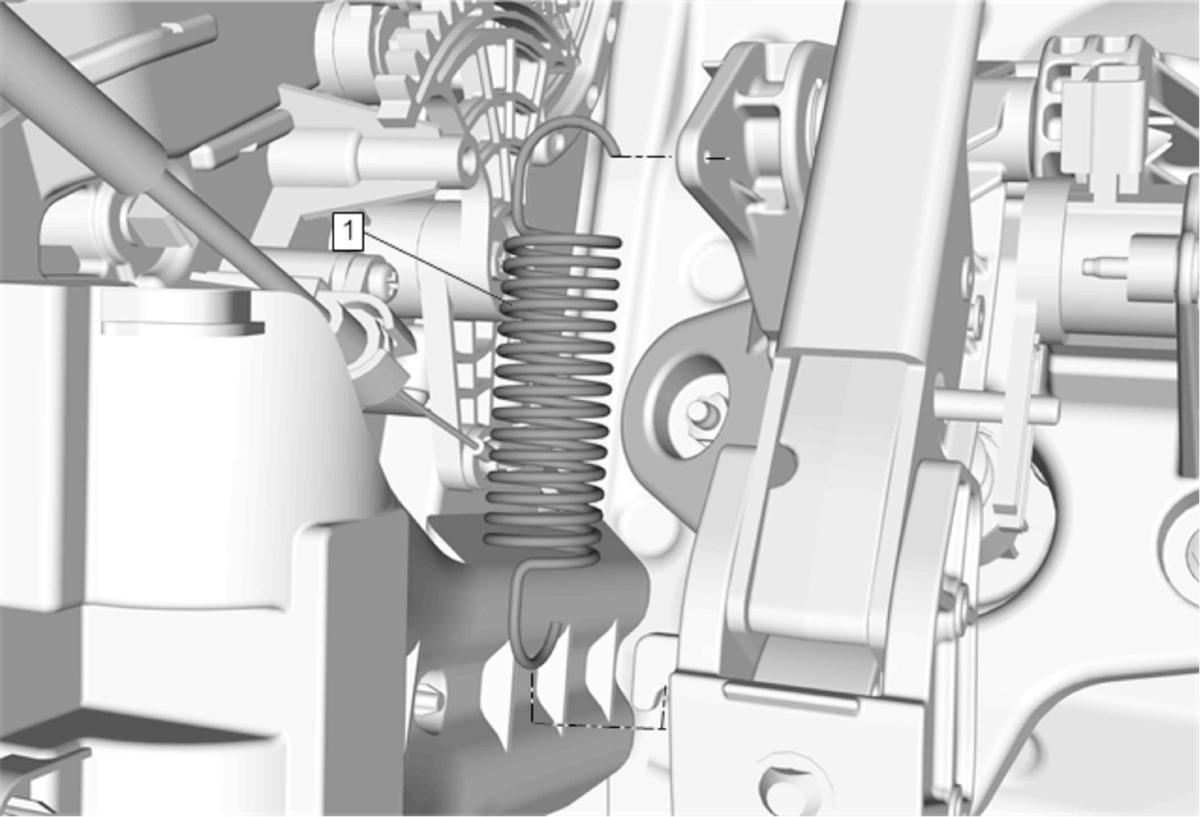

| 1 | Clutch Pedal Return Spring Procedure Disengage the clutch pedal return spring, using suitable pliers. |
