Rear Seat Center Shoulder Belt Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

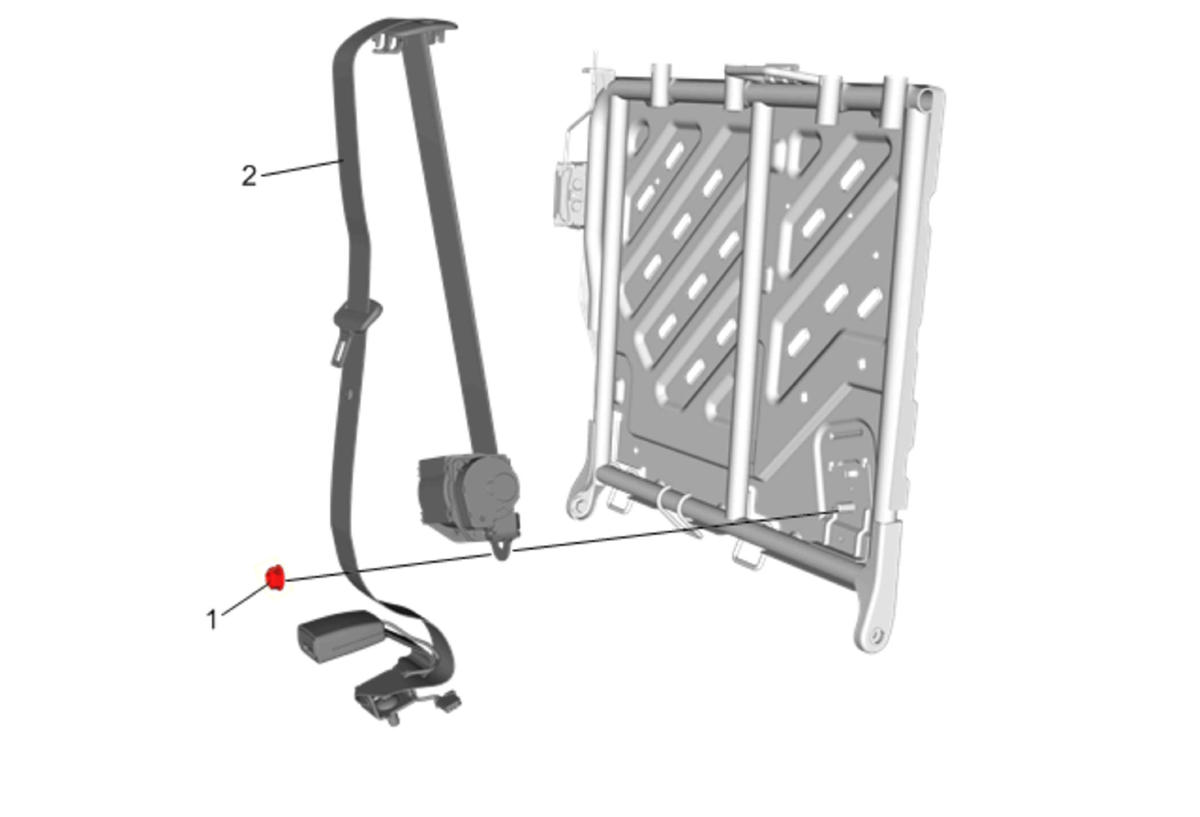

Fig 1: Rear Seat Center Shoulder Belt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat belt buckle. Refer to Rear Seat Belt Buckle Replacement . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Base)Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat)Rear Seat Back Cushion Cover and Pad Replacement (60 Percent Seat) . Remove the center shoulder belt cover from the rear seat back cushion frame.
1	Rear Center Seat Belt Retractor Nut CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Center Belt Retractor Assembly

Callout

Component Name

Preliminary Procedures

Remove the rear seat belt buckle. Refer to Rear Seat Belt Buckle Replacement .
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Base)Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat)Rear Seat Back Cushion Cover and Pad Replacement (60 Percent Seat) .
Remove the center shoulder belt cover from the rear seat back cushion frame.

Rear Center Seat Belt Retractor Nut

CAUTION: Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

Rear Seat Center Belt Retractor Assembly
