Rear Seat Belt Buckle Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

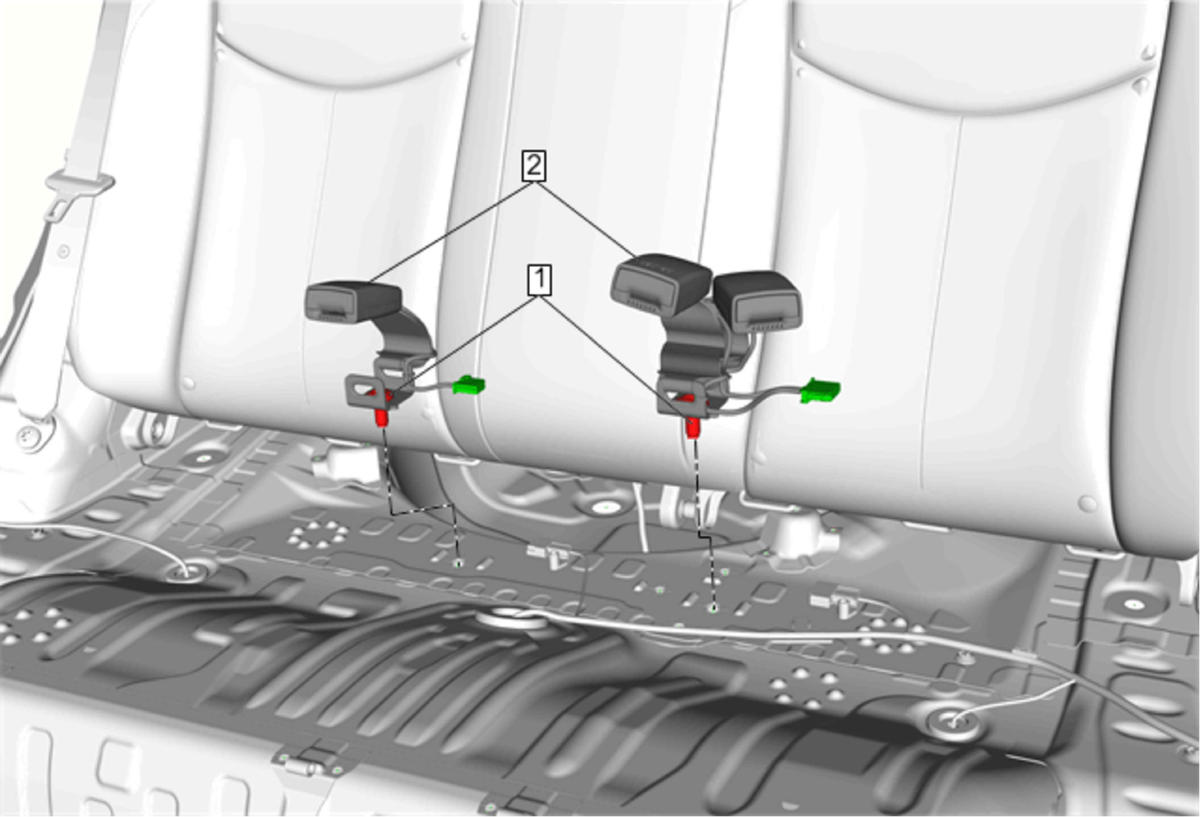

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Base)Rear Seat Cushion Removal and Installation (60 Percent Seat)Rear Seat Cushion Removal and Installation (40 Percent Seat) . |
|
| 1 | Rear Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 40 N.m (30 lb ft) |
| 2 | Rear Seat Belt Buckle Assembly Procedure Disconnect the electrical connectors, if needed. |
