Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

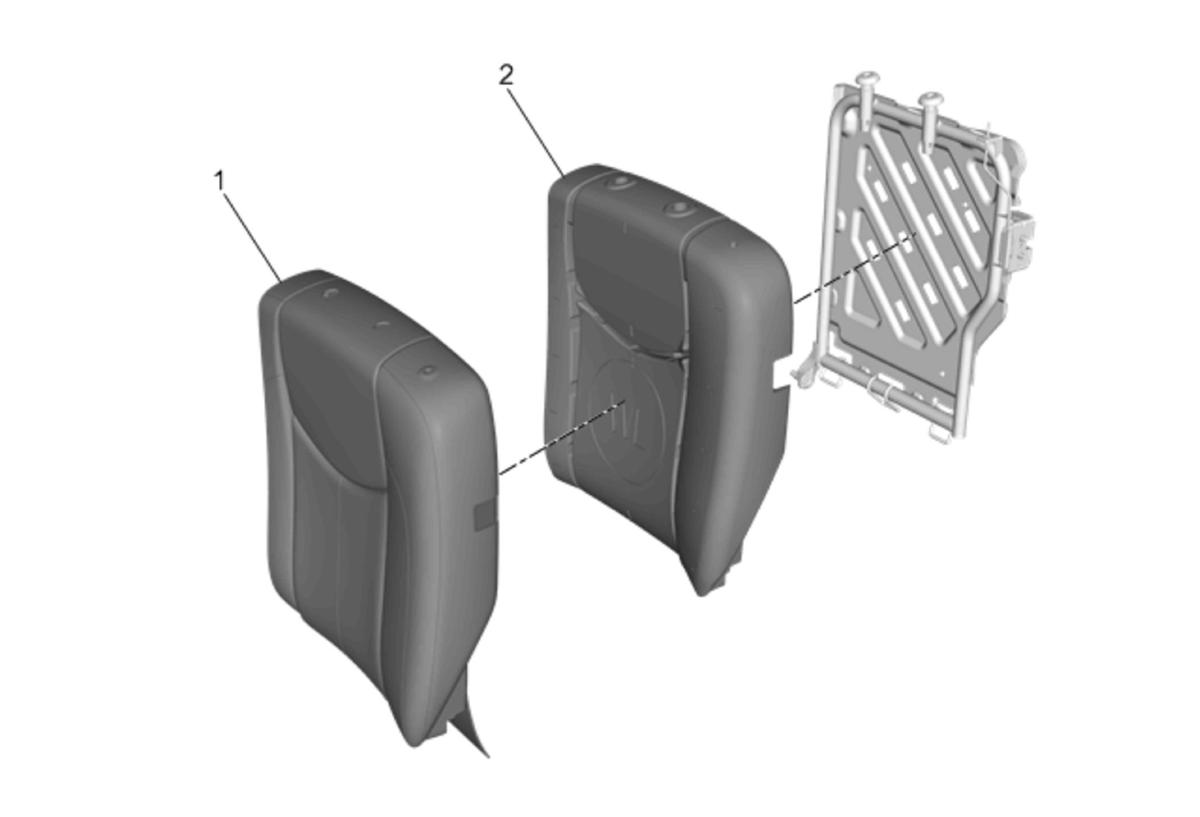

Fig 1: Rear Seat Back Cushion Cover and Pad (40 Percent Seat)
GM4620566Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Seat Back Cushion Removal and Installation (40 Percent Seat) .
  2. Rear Seat Head Restraint Replacement .
  3. Rear Seat Back Cushion Latch Release Handle Replacement .
1 Rear Seat Back Cushion Cover

Procedure

  1. Remove the hog rings and retainers.
  2. Remove the seat back cushion cover and pad from the seat cushion frame as an assembly.
2 Rear Seat Back Cushion Pad
Procedure
Remove the hog rings between rear seat back cushion cover and rear seat back cushion pad.
