Rear Seat Back Cushion Cover and Pad Replacement (Base)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

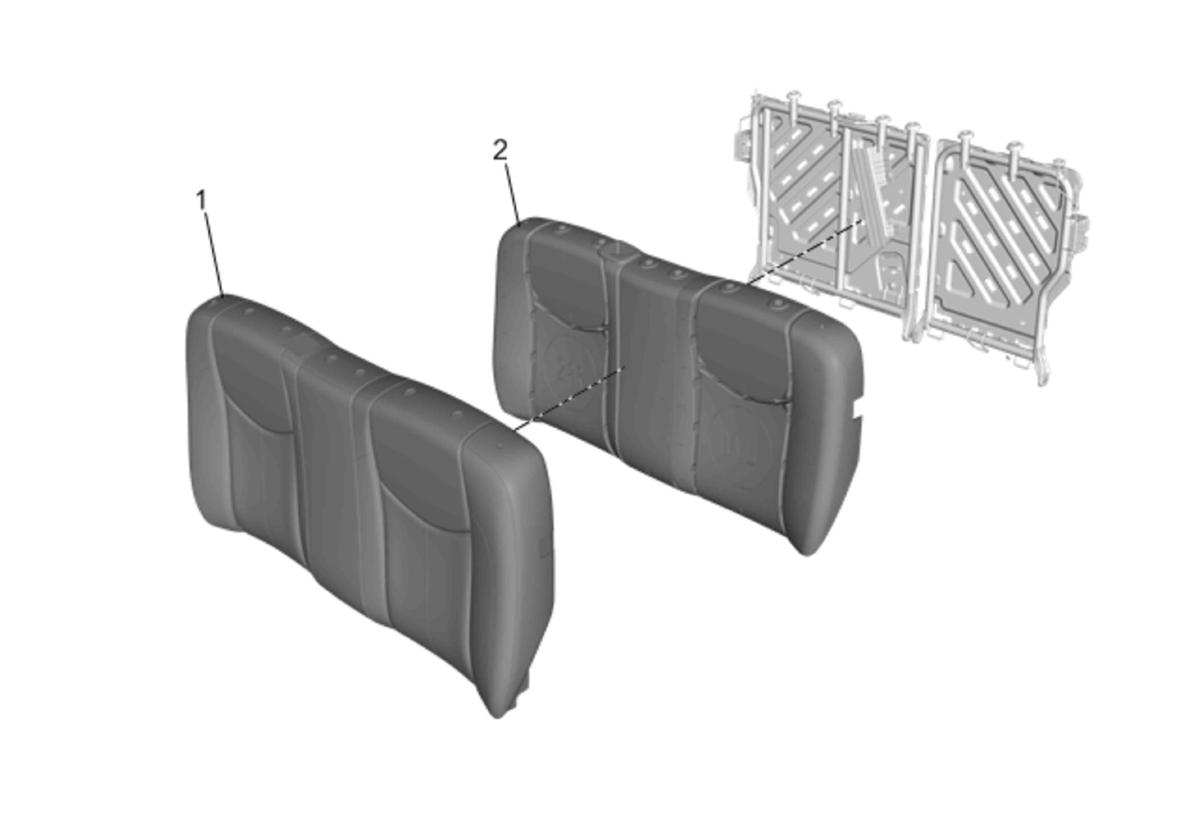

Fig 1: Rear Seat Back Cushion Cover and Pad (Base)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Base) . Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement . Remove the rear seat back cushion latch release handle. Refer to Rear Seat Back Cushion Latch Release Handle Replacement .
1	Rear Seat Back Cushion Cover Procedure Remove the hog rings and retainers. Remove the seat back cushion cover and pad from the seat cushion frame as an assembly.
2	Rear Seat Back Cushion Pad Procedure Remove the hog rings between rear seat back cushion cover and rear seat back cushion pad.

Callout

Component Name

Preliminary Procedure

Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Base) .
Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement .
Remove the rear seat back cushion latch release handle. Refer to Rear Seat Back Cushion Latch Release Handle Replacement .

Rear Seat Back Cushion Cover

Procedure

Remove the hog rings and retainers.
Remove the seat back cushion cover and pad from the seat cushion frame as an assembly.

Rear Seat Back Cushion Pad
Procedure
Remove the hog rings between rear seat back cushion cover and rear seat back cushion pad.
