Installation Procedure
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

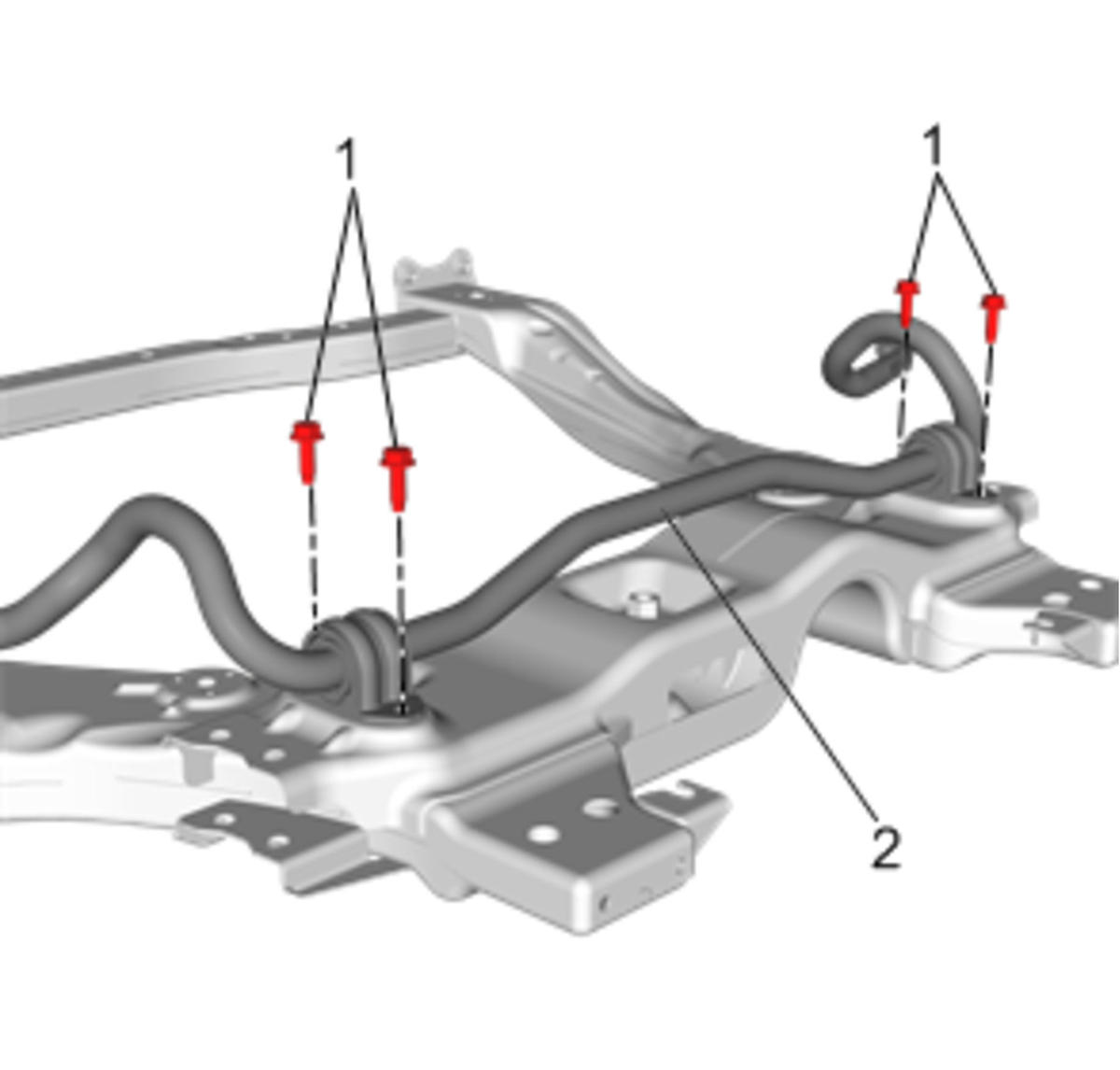

- Install the front stabilizer shaft assembly (2) to the cradle.
- Install the front stabilizer shaft insulator clamp bolts (1) and tighten to 25 N.m (18 lb ft).CAUTION: Refer to Fastener Caution .
- Raise the rear portion of cradle and align the cradle to the body floor panel. Install the cradle front bolts, the cradle bracket bolts and the cradle rear bolts. Refer to Drivetrain and Front Suspension Cradle Replacement .
- Remove the hydraulic jack from the cradle.
- Connect the transmission rear mount to the transmission rear mount bracket. Refer to Transmission Rear Mount Replacement .
- Connect both of the control arm ball joints to the steering knuckles. Refer to Lower Control Arm Replacement .
- Install both of the stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement .
- Connect both of the steering gear tie rod ends to the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement .
- Install the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q)Exhaust Muffler Replacement (LV7) .
- Install the front compartment insulator. Refer to Front Compartment Insulator Replacement .
- Install both of the front bumper fascia opening lower covers. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
- Install the front tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
- Install the steering column dash seal. Refer to Steering Column Dash Inner Seal Replacement .
- Connect the intermediate steering shaft to the steering gear. Refer to Intermediate Steering Shaft Replacement .
