Stabilizer Shaft Link Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

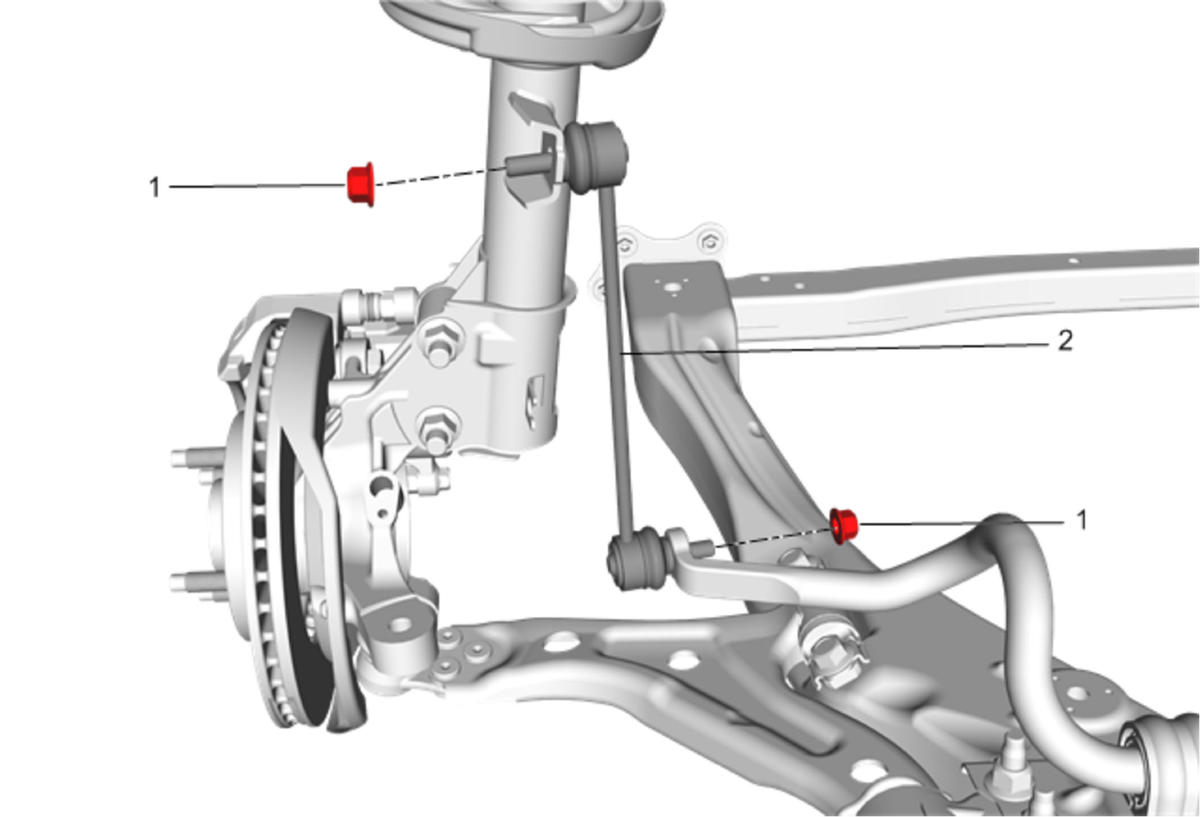

Fig 1: Stabilizer Shaft Link

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Vehicle Lifting and Jacking Caution . Remove the wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
1	Front Stabilizer Shaft Link Nut (Qty: 2) CAUTION: Refer to Fastener Caution . NOTE: When removing the stabilizer shaft link nuts, remove both of the upper nuts first and then lift up the stabilizer bar ends in order to get the tool access to lower nuts. Tighten 70 N.m (52 lb ft)
2	Front Stabilizer Shaft Link

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Vehicle Lifting and Jacking Caution .
Remove the wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .

Front Stabilizer Shaft Link Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

NOTE: When removing the stabilizer shaft link nuts, remove both of the upper nuts first and then lift up the stabilizer bar ends in order to get the tool access to lower nuts.

Tighten
70 N.m (52 lb ft)

Front Stabilizer Shaft Link
