Mode Valve Link Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

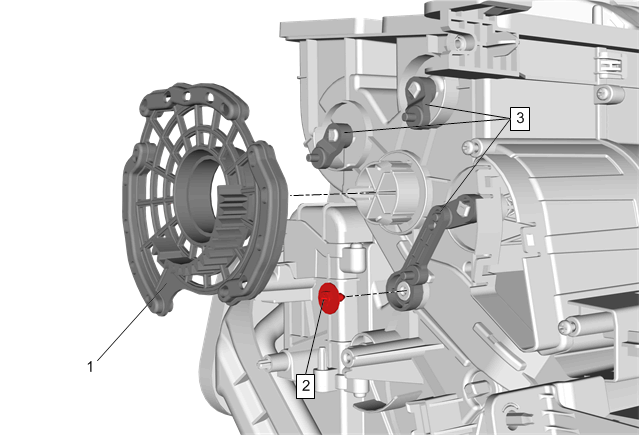

Fig 1: Mode Valve Link Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
NOTE: Align the mode valve link correctly on installation. Refer to Mode Control Cam Alignment . Preliminary Procedures Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement . Remove the left side floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Left Side (Right Hand Drive) . Remove the mode valve actuator. Refer to Mode Valve Actuator Replacement .
1	Mode Valve Link Assembly
2	Mode Valve Link Screw CAUTION: Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in)
3	Mode Valve Link Assembly
