Floor Air Outlet Duct Replacement - Left Side (Right Hand Drive)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

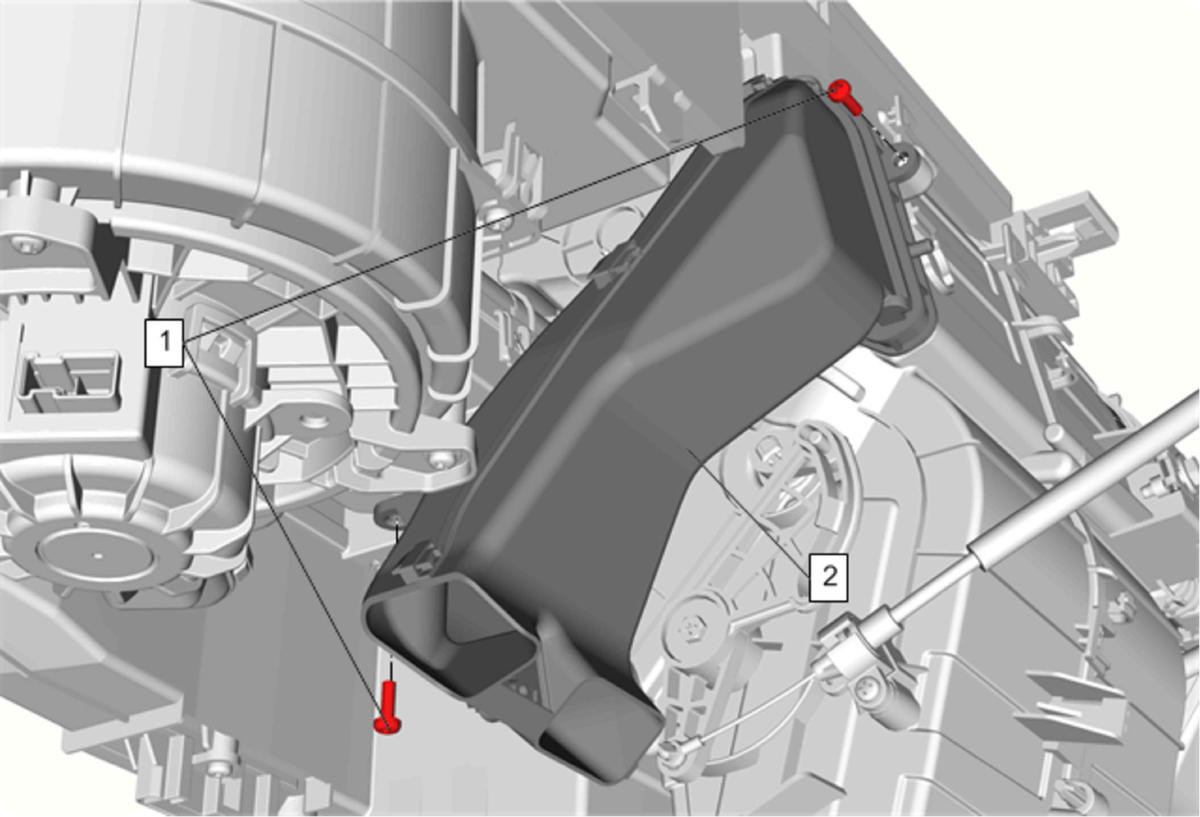

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement . |
|
| 1 | Left Floor Air Outlet Duct Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 1.2 N.m (11 lb in) |
| 2 | Floor Air Outlet Duct - Left |
