Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) .
  4. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  5. Remove the headlamp. Refer to Headlamp Replacement (Projection/SBV)Headlamp Replacement (BASE/SBM) .
  6. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  7. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (L5Q) .
  8. Release the air cleaner inlet duct from air cleaner outlet resonator. Refer to Air Cleaner Inlet Duct Replacement .
  9. Remove the surge tank bolts and reposition the surge tank. Refer to Radiator Surge Tank Replacement .
  10. Remove the radiator air upper baffle. Refer to Radiator Air Upper Baffle and Deflector Replacement .
  11. Disconnect the A/C refrigerant pressure sensor electrical connector.
  12. Remove the air conditioning evaporator hose assembly nut (1) to air conditioning evaporator thermal expansion valve.
    Fig 1: Air Conditioning Evaporator Hose Assembly Nut And Evaporator Hose Assembly Mounting Bracket Nut
    GM4051913Courtesy of GENERAL MOTORS COMPANY
  13. Remove the air conditioning evaporator hose assembly mounting bracket nut (2).
  14. Unclip the air conditioning evaporator hose assembly clips (1) from hose assembly (2).
    Fig 2: Air Conditioning Evaporator Hose Assembly Clips And Hose Assembly
    GM4051917Courtesy of GENERAL MOTORS COMPANY
  15. Remove the air conditioning evaporator hose assembly bolt (1) to air conditioning compressor.
    Fig 3: Air Conditioning Evaporator Hose Assembly Bolt And Nut
    GM4051918Courtesy of GENERAL MOTORS COMPANY
  16. Remove the air conditioning evaporator hose assembly nut (2) to air conditioning condenser.
  17. Remove the upper tie bar to impact bar retaining bolts left side (1).
    Fig 4: Left Side Upper Tie Bar To Impact Bar Retaining Bolts
    GM4051949Courtesy of GENERAL MOTORS COMPANY
  18. Remove the upper tie bar to impact bar retaining bolts right side (1).
    Fig 5: Right Side Upper Tie Bar To Impact Bar Retaining Bolts
    GM4051950Courtesy of GENERAL MOTORS COMPANY
  19. Remove the upper tie bar to front compartment side rail retaining nut left side (1).
    Fig 6: Left Side Upper Tie Bar To Front Compartment Side Rail Retaining Nut
    GM4051951Courtesy of GENERAL MOTORS COMPANY
  20. Remove the upper tie bar to front compartment side rail retaining nut right side (1).
    Fig 7: Right Side Upper Tie Bar To Front Compartment Side Rail Retaining Nut
    GM4051952Courtesy of GENERAL MOTORS COMPANY
  21. Disconnect any electrical connectors around the front upper tie bar assembly.
  22. Unclip the electrical wiring harness retaining clips around the front upper tie bar assembly.
  23. Pull up and reposition the upper tie bar assembly (1).
    Fig 8: Upper Tie Bar Assembly
    GM4051953Courtesy of GENERAL MOTORS COMPANY
  24. Remove the air conditioning evaporator hose assembly (1).

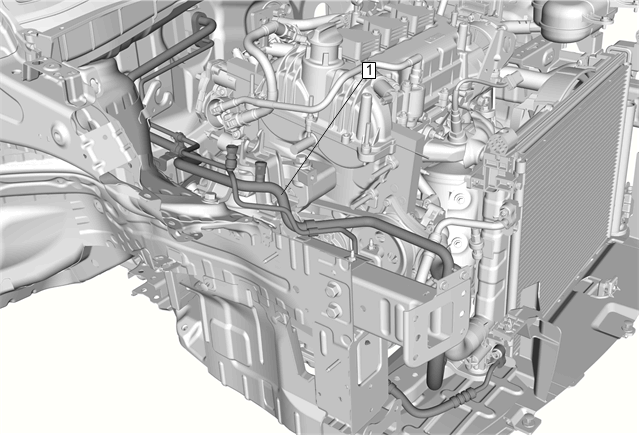

    Fig 9: Air Conditioning Evaporator Hose Assembly
    GM4051921Courtesy of GENERAL MOTORS COMPANY
  25. Remove and discard the old sealing washers and replace NEW sealing washers.
