Headlamp Replacement (Projection/SBV)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

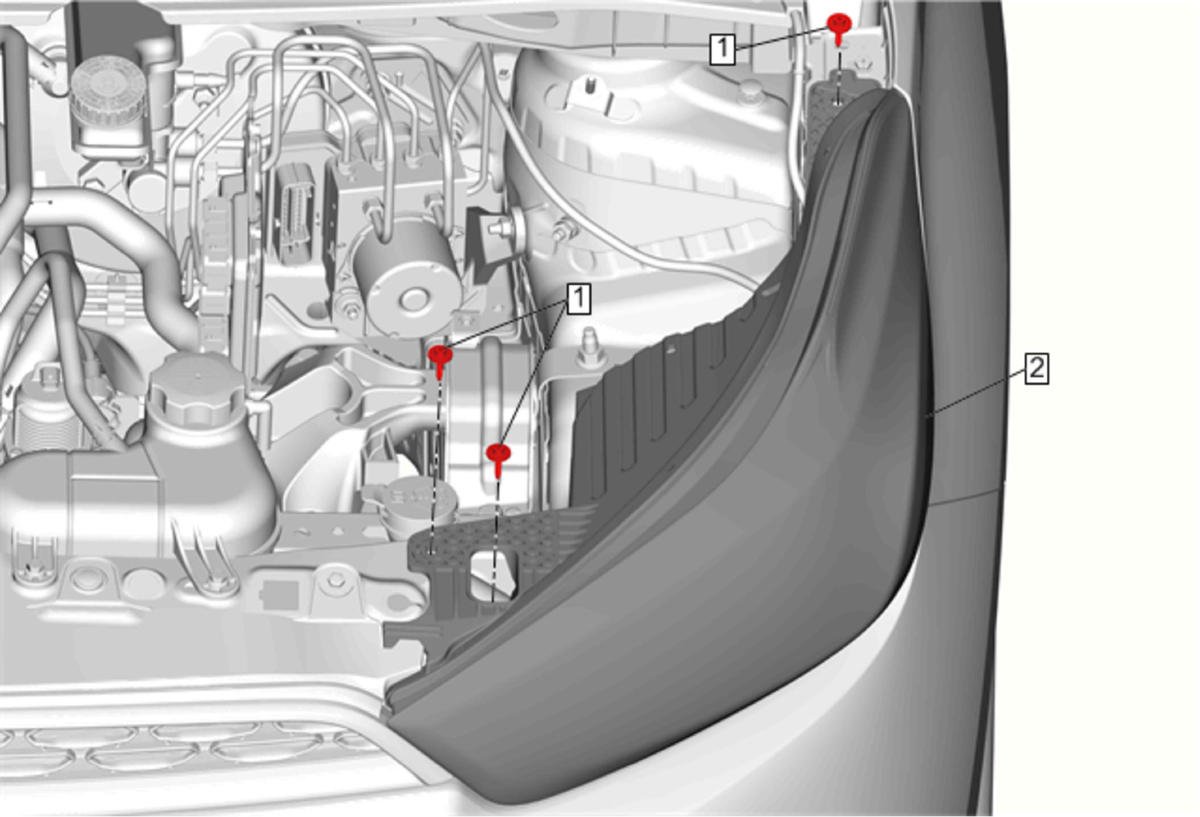

Fig 1: Headlamp (Projection/SBV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Headlamp Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Assembly Procedure Pull the headlamp assembly forward far enough to access the electrical connection. Disconnect the headlamp electrical connector from the forward lamp harness connector. Remove the headlamp assembly. Aim the headlamps after installation. Refer to Headlamp Aiming (North America) Headlamp Aiming (Except North America) .

Callout

Component Name

Headlamp Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Headlamp Assembly

Procedure

Pull the headlamp assembly forward far enough to access the electrical connection.
Disconnect the headlamp electrical connector from the forward lamp harness connector.
Remove the headlamp assembly.
Aim the headlamps after installation. Refer to Headlamp Aiming (North America) Headlamp Aiming (Except North America) .
