Disassembly Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporative emission canister. Refer to Evaporative Emission Canister Replacement (32L (8.5 US Gallon) Tank) Evaporative Emission Canister Replacement (35L (9 US Gallon) Tank) .
  2. Disconnect the fuel feed/evaporative emission separator (1) from the fuel tank fuel pump module. Refer to Plastic Collar Quick Connect Fitting Service .

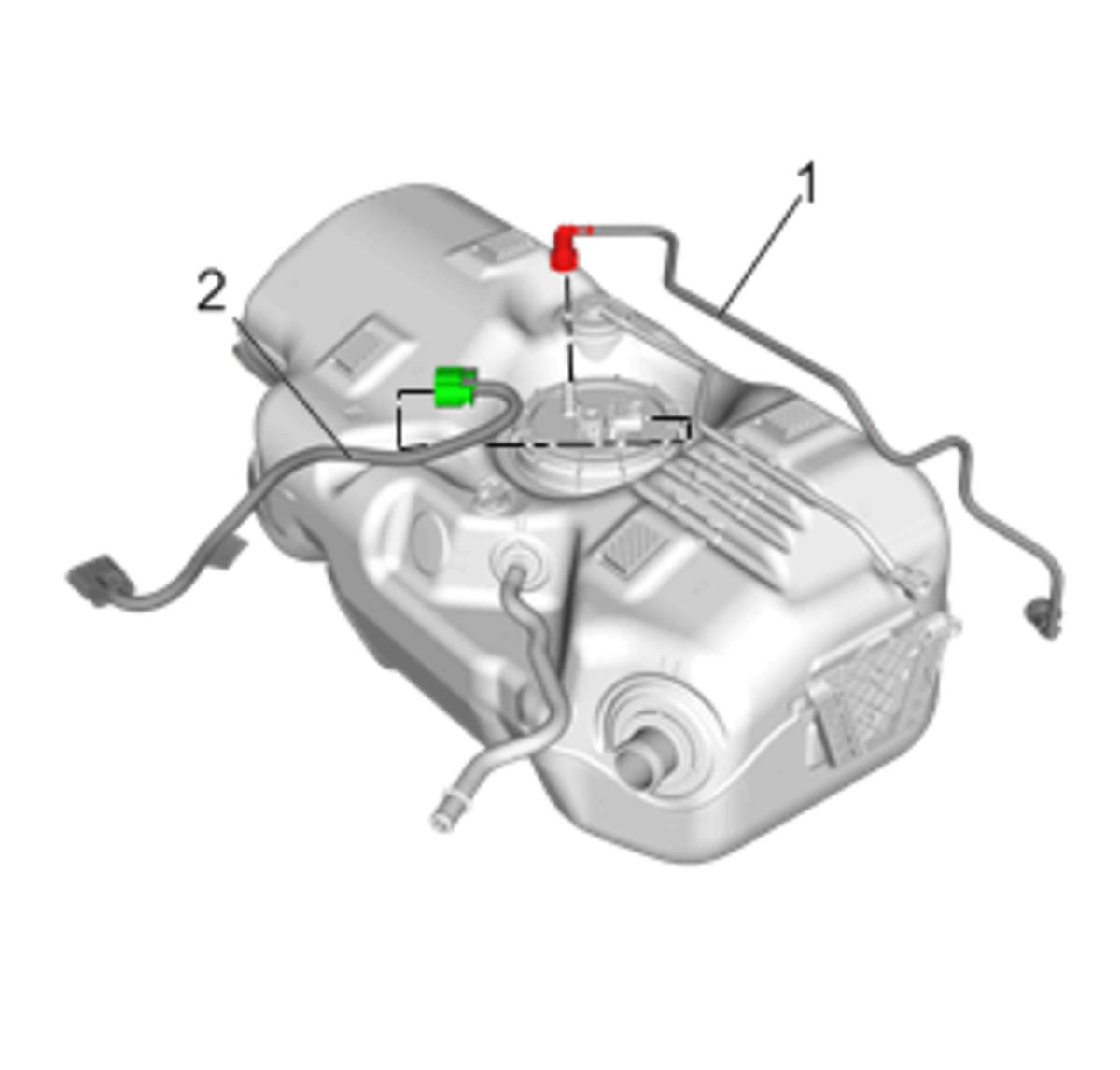

    Fig 1: Fuel Feed/Evaporative Emission Separator And Fuel Tank Wiring Harness
    GM4013976Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the fuel tank wiring harness (2) from the fuel tank fuel pump module.
  4. Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement (32L (8.5 US Gallon) Tank) Fuel Tank Fuel Pump Module Replacement (35L (9 US Gallon) Tank) .
