Evaporative Emission Canister Replacement (32L (8.5 US Gallon) Tank)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

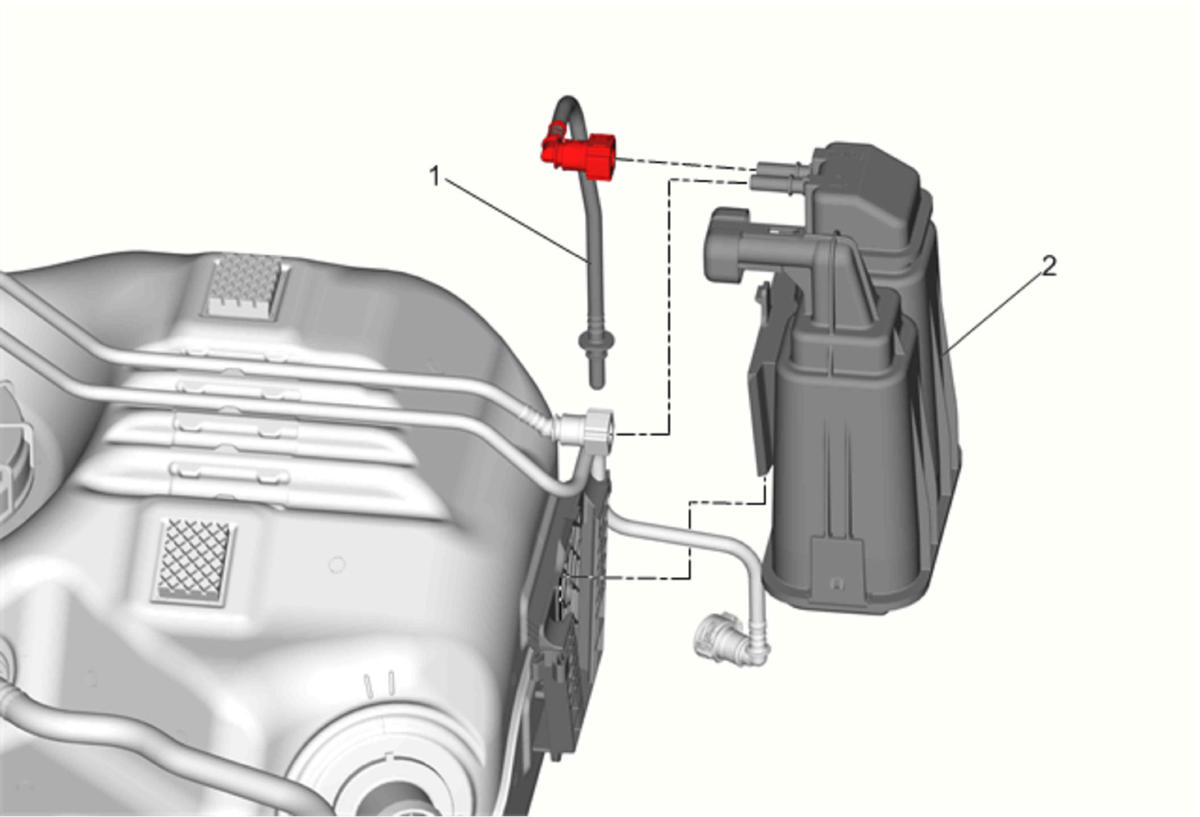

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement (32L (8.5 US Gallon) Tank) . |
|
| 1 | Evaporative Emission Canister Purge Pipe Refer to Plastic Collar Quick Connect Fitting Service . |
| 2 | Evaporative Emission Canister |
