Fuel Tank Fuel Pump Module Replacement (35L (9 US Gallon) Tank)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

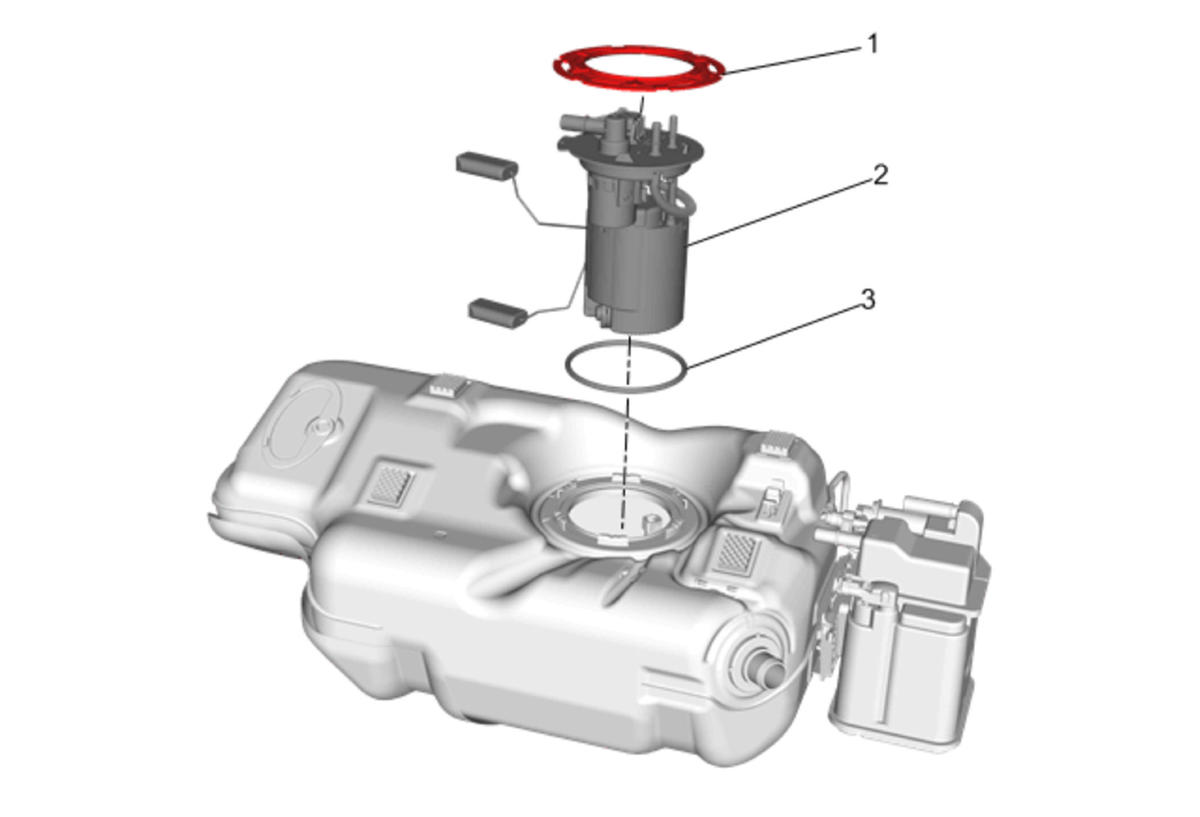

Fig 1: Fuel Tank Fuel Pump Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel tank. Refer to Fuel Tank Replacement (35L (9 US Gallon) Tank) . Disconnect the fuel feed/evaporative emission separator from the fuel tank fuel pump module. Disconnect the fuel feed/evaporative emission separator hose from the fuel tank fuel pump module. Disconnect the fuel tank vent valve assembly from the fuel tank fuel pump module. Remove the electrical connector.
1	Fuel Pump Lock Ring Special Tools J-45747 Fuel Pump Lock Ring Remover/Installer For equivalent regional tools, refer to Special Tools (Diagnostic Tools)Special Tools (Service Repair Tools) .
2	Fuel Pump
3	Fuel Pump Seal Procedure Discard the old seal and replace it with the new fuel pump seal.
