Fuel Tank Fuel Pump Module Replacement (32L (8.5 US Gallon) Tank)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

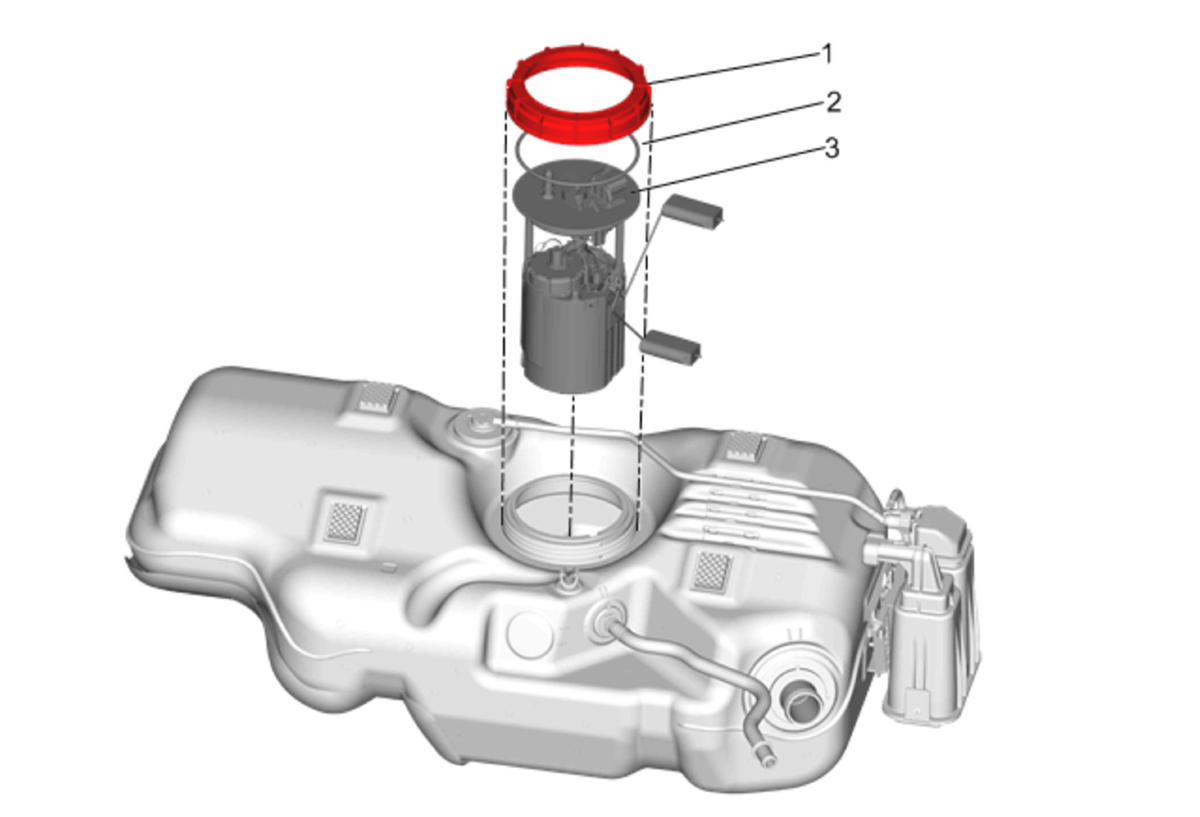

Fig 1: Fuel Tank Fuel Pump Module
GM4032575Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the fuel tank. Refer to Fuel Tank Replacement (32L (8.5 US Gallon) Tank) .
  2. Disconnect the fuel feed/evaporative emission separator from the fuel tank fuel pump module.
  3. Remove the electrical connector.
1 Fuel Pump Lock Ring
Special Tools
EN-50167  Fuel Pump Lock Ring Remover/Installer
For equivalent regional tools, refer to Special Tools (Diagnostic Tools)Special Tools (Service Repair Tools) .
2 Fuel Pump Seal
Procedure
Discard the old seal and replace it with the New fuel pump seal.
3 Fuel Pump
