Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a NEW gasket to the water outlet (3).

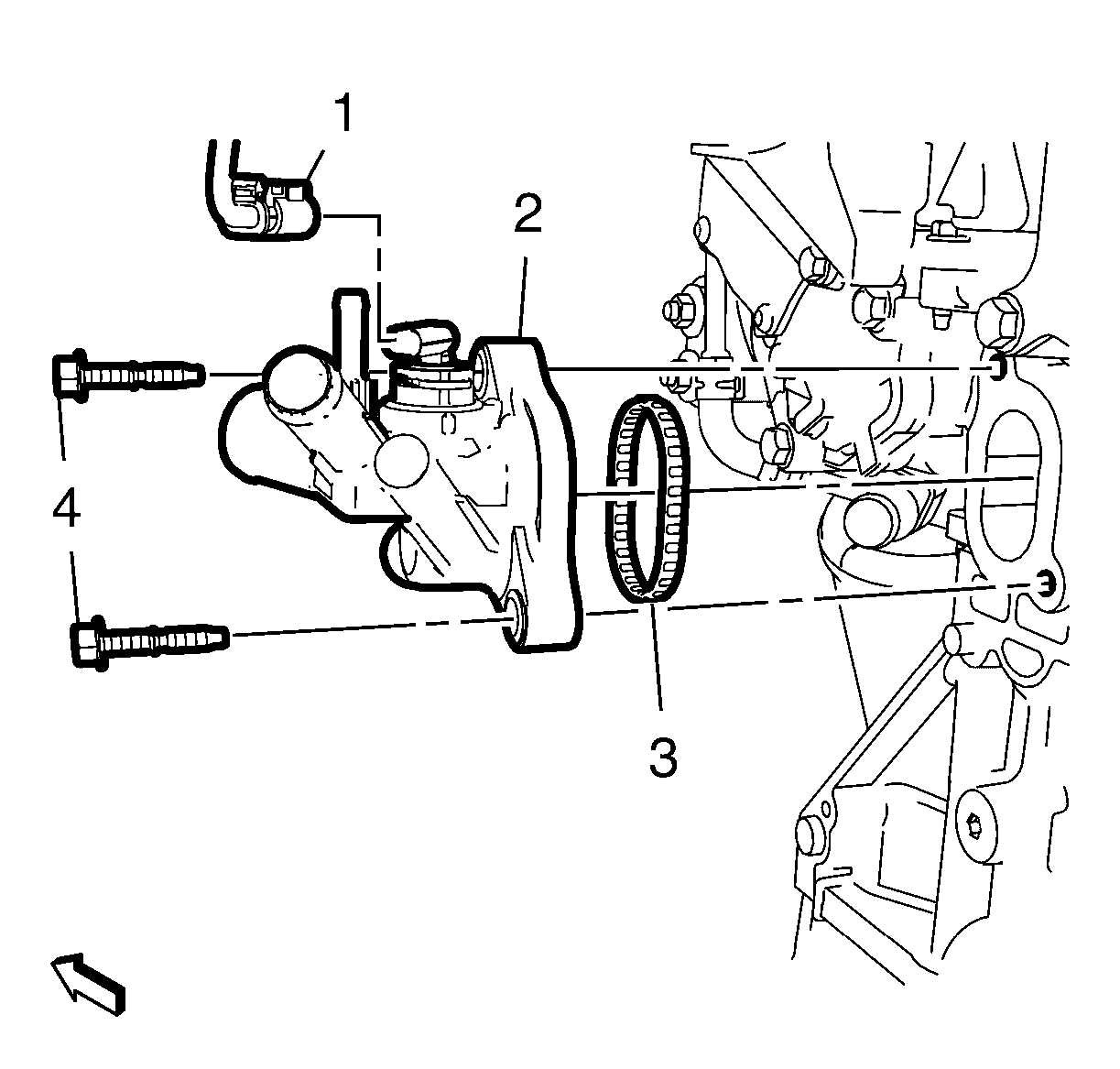

    Fig 1: Wiring Harness Plug And Water Outlet Bolts
    GM3682491Courtesy of GENERAL MOTORS COMPANY
  2. Install the water outlet (2).
  3. Install the 2 water outlet bolts (4) and tighten to 12 N.m (106 lb in).
    CAUTION: Refer to Fastener Caution .
  4. Connect the wiring harness plug (1).
  5. Install the thermostat bypass hose. Refer to Thermostat Bypass Hose Replacement (L5Q) .
  6. Install the radiator inlet hose. Refer to Radiator Inlet Hose Replacement .
  7. Install the heater outlet hose. Refer to Heater Outlet Hose Replacement .
  8. Install the heater inlet hose. Refer to Heater Inlet Hose Replacement .
  9. Install the engine coolant air bleed hose. Refer to Engine Coolant Air Bleed Hose Replacement .
  10. Fill the cooling system. Refer to Cooling System Draining and Filling .
