Engine Coolant Air Bleed Hose Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

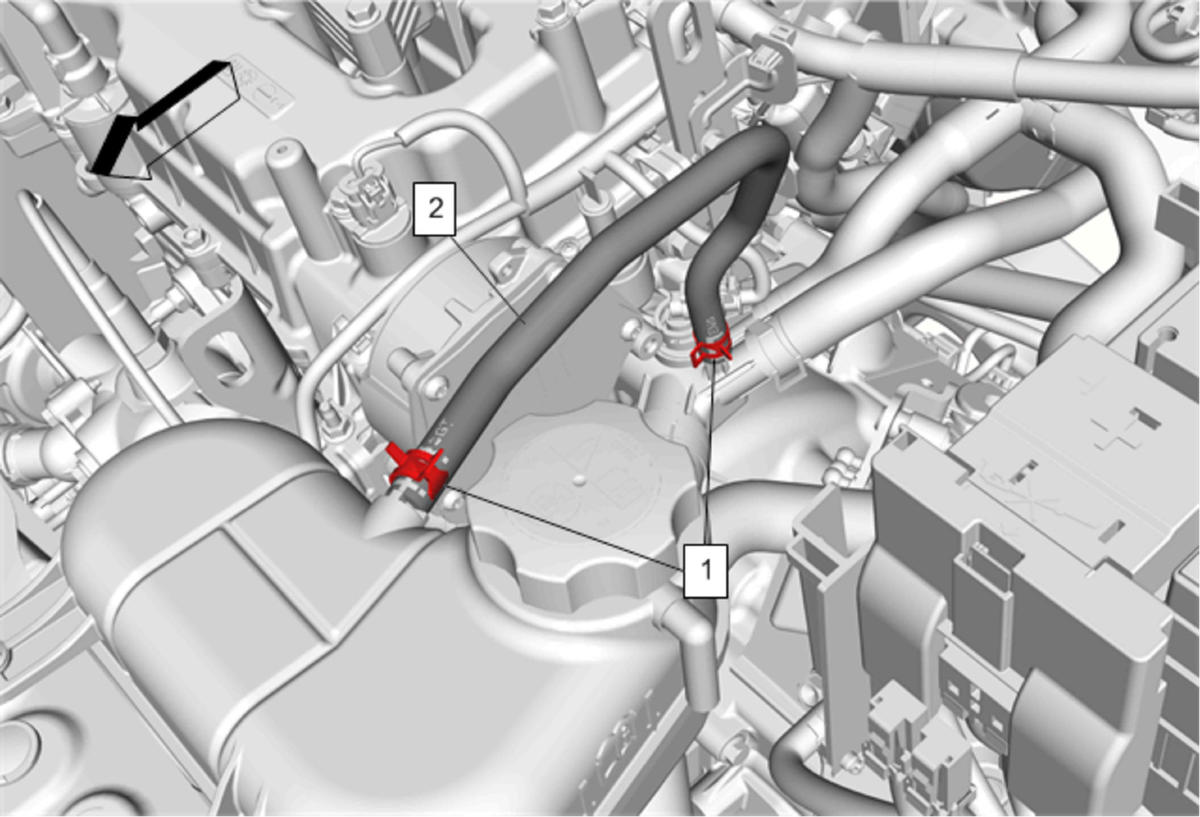

Fig 1: Engine Coolant Air Bleed Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Drain the cooling system. Refer to Cooling System Draining and Filling .
1	Engine Coolant Air Bleed Hose Clamp (Qty: 2)
2	Engine Coolant Air Bleed Hose Procedure Add engine coolant to the surge tank, if necessary.

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Drain the cooling system. Refer to Cooling System Draining and Filling .

Engine Coolant Air Bleed Hose Clamp (Qty: 2)

Engine Coolant Air Bleed Hose
Procedure
Add engine coolant to the surge tank, if necessary.
