Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator lower bracket (2).

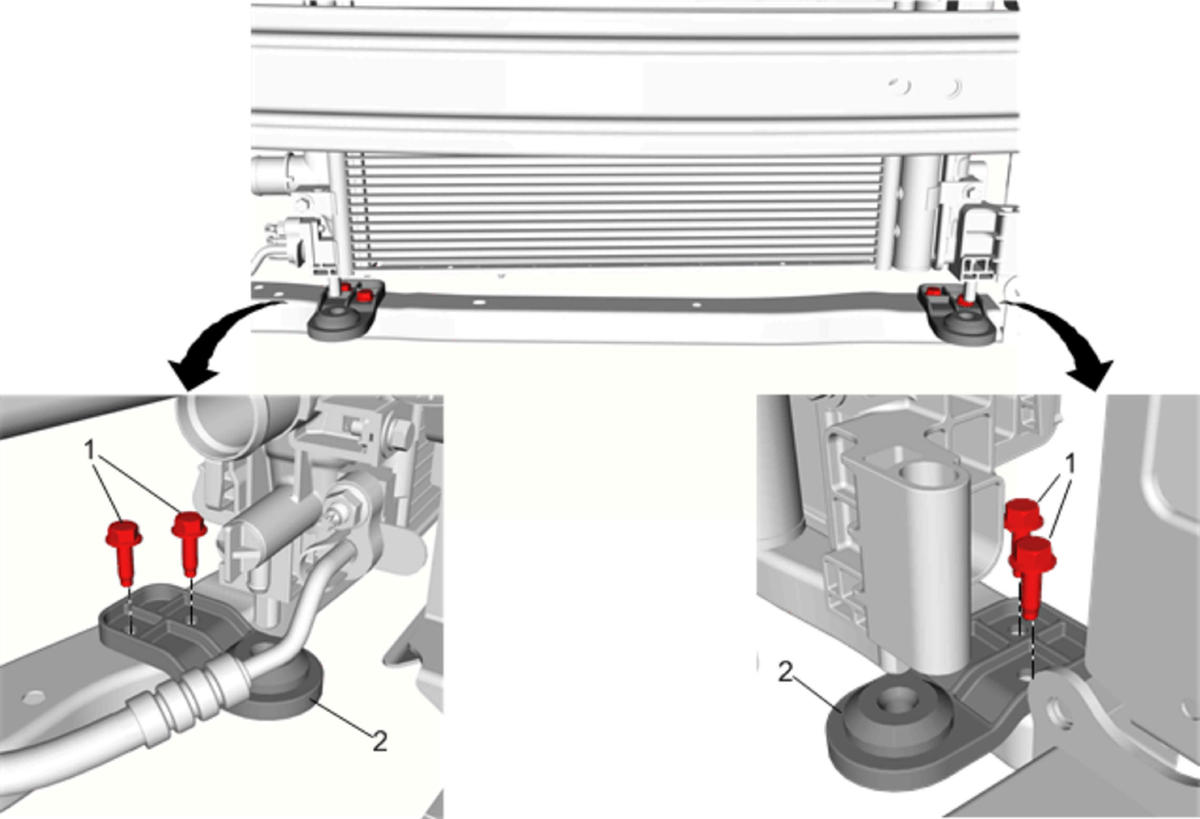

    Fig 1: Radiator Lower Bracket Bolts
    GM4051709Courtesy of GENERAL MOTORS COMPANY
  2. Install the condenser radiator fan module.
  3. Install the radiator lower bracket bolts (1) to tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. Position the upper tie bar assembly (1).

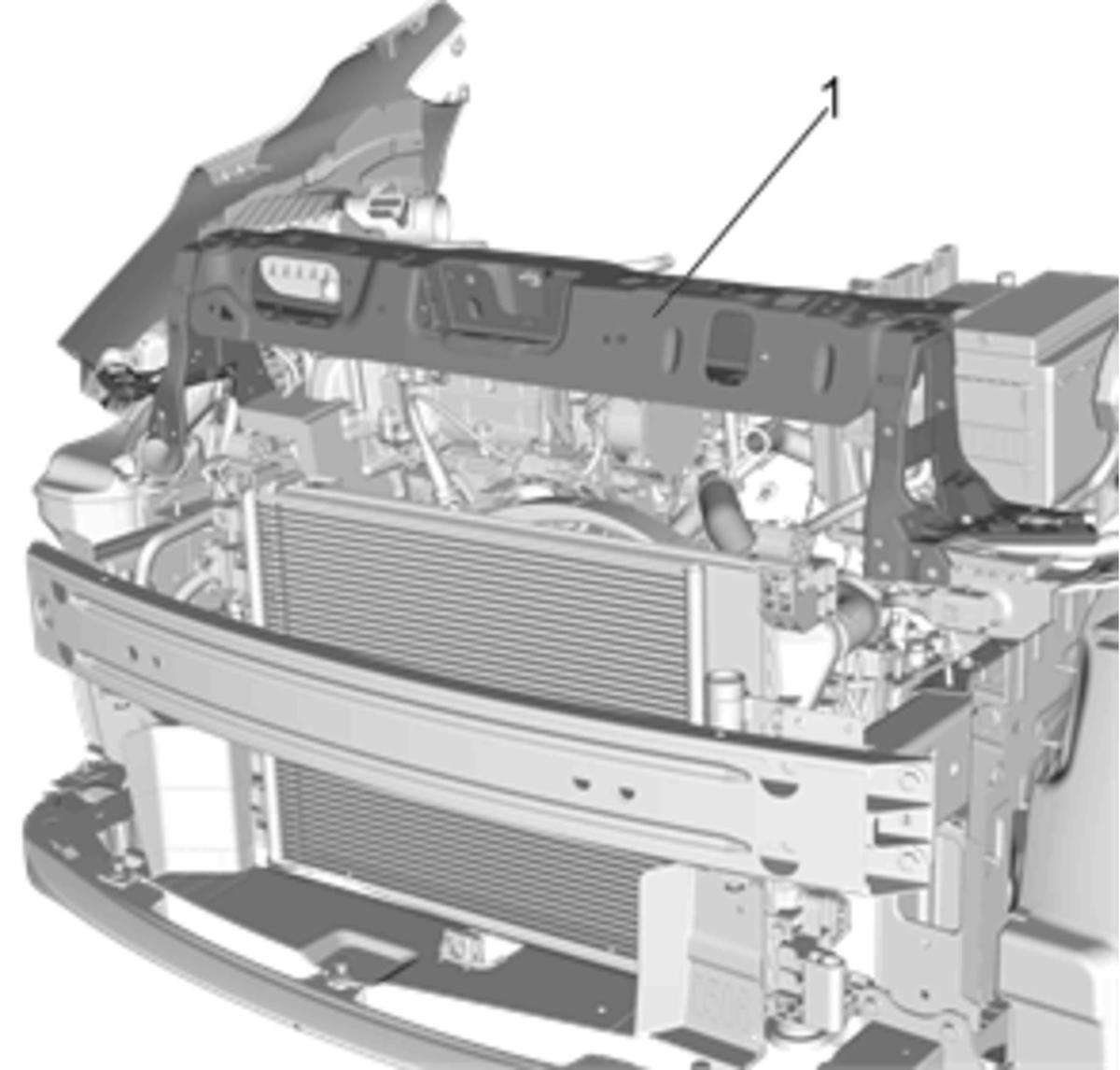

    Fig 2: Upper Tie Bar Assembly
    GM4051706Courtesy of GENERAL MOTORS COMPANY
  5. Clip the electrical wiring harness retaining clips around the front upper tie bar assembly.
  6. Connect any electrical connectors from the radiator.
  7. Install the upper tie bar to front compartment side rail retaining nut right side (1) and tighten to 9 N.m (80 lb in).

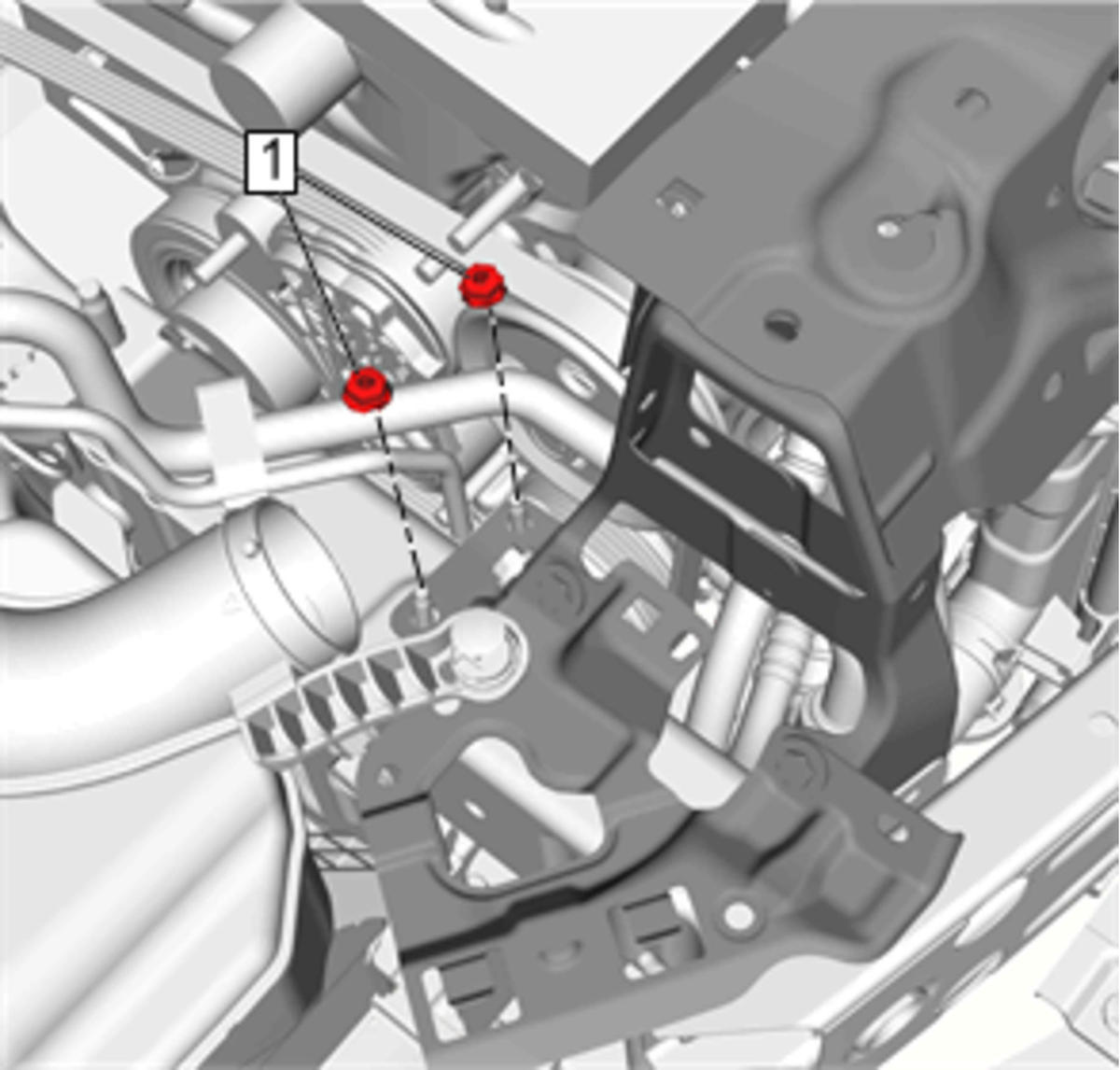

    Fig 3: Front Compartment Side Rail Retaining Nut Right Side
    GM4051703Courtesy of GENERAL MOTORS COMPANY
  8. Install the upper tie bar to front compartment side rail retaining nut left side (1) and tighten to 9 N.m (80 lb in).

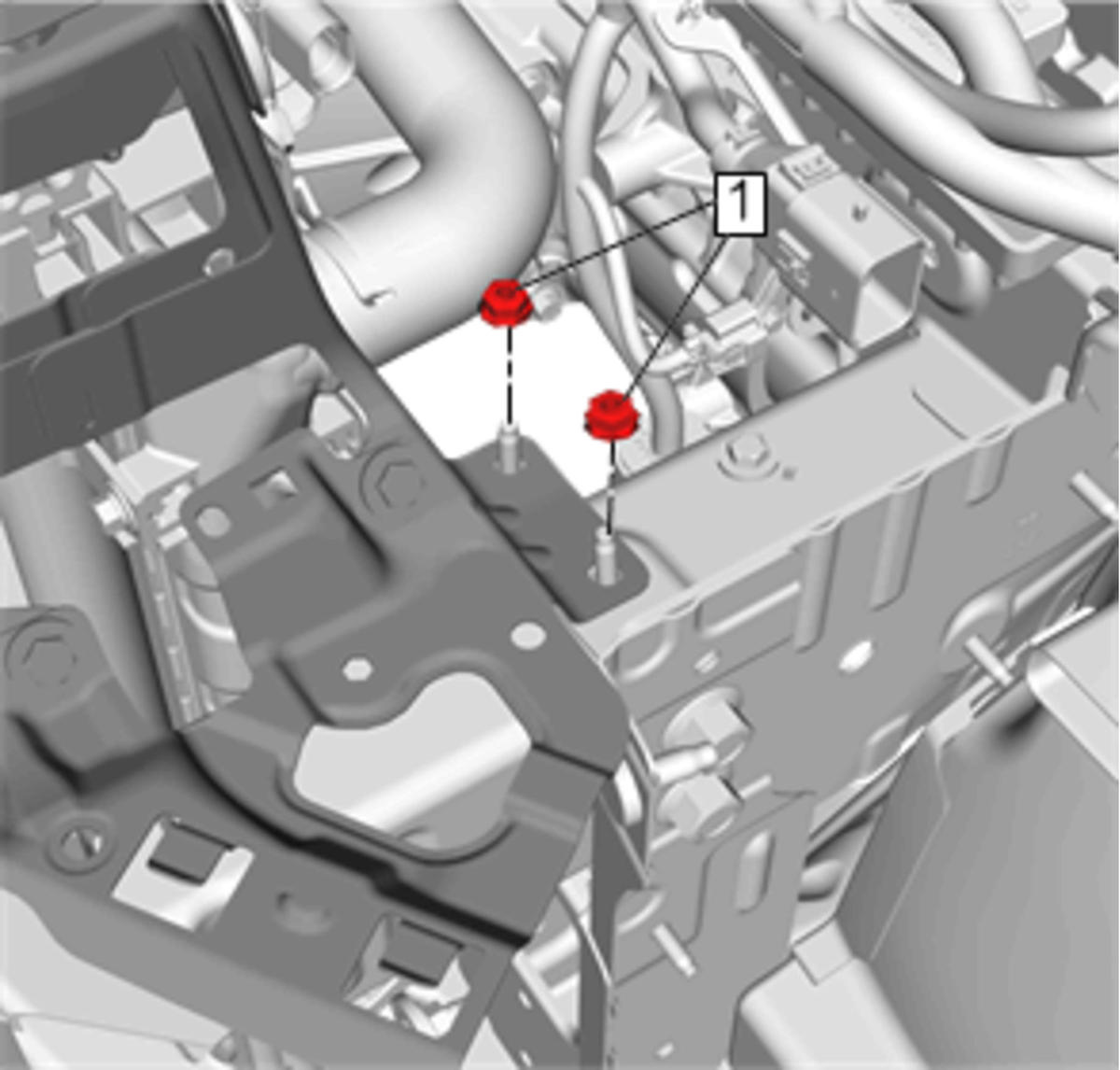

    Fig 4: Upper Tie Bar And Front Compartment Side Rail Retaining Nut Left Side
    GM4051701Courtesy of GENERAL MOTORS COMPANY
  9. Install the upper tie bar to impact bar retaining bolts right side (1) and tighten to 10 N.m (89 lb in).

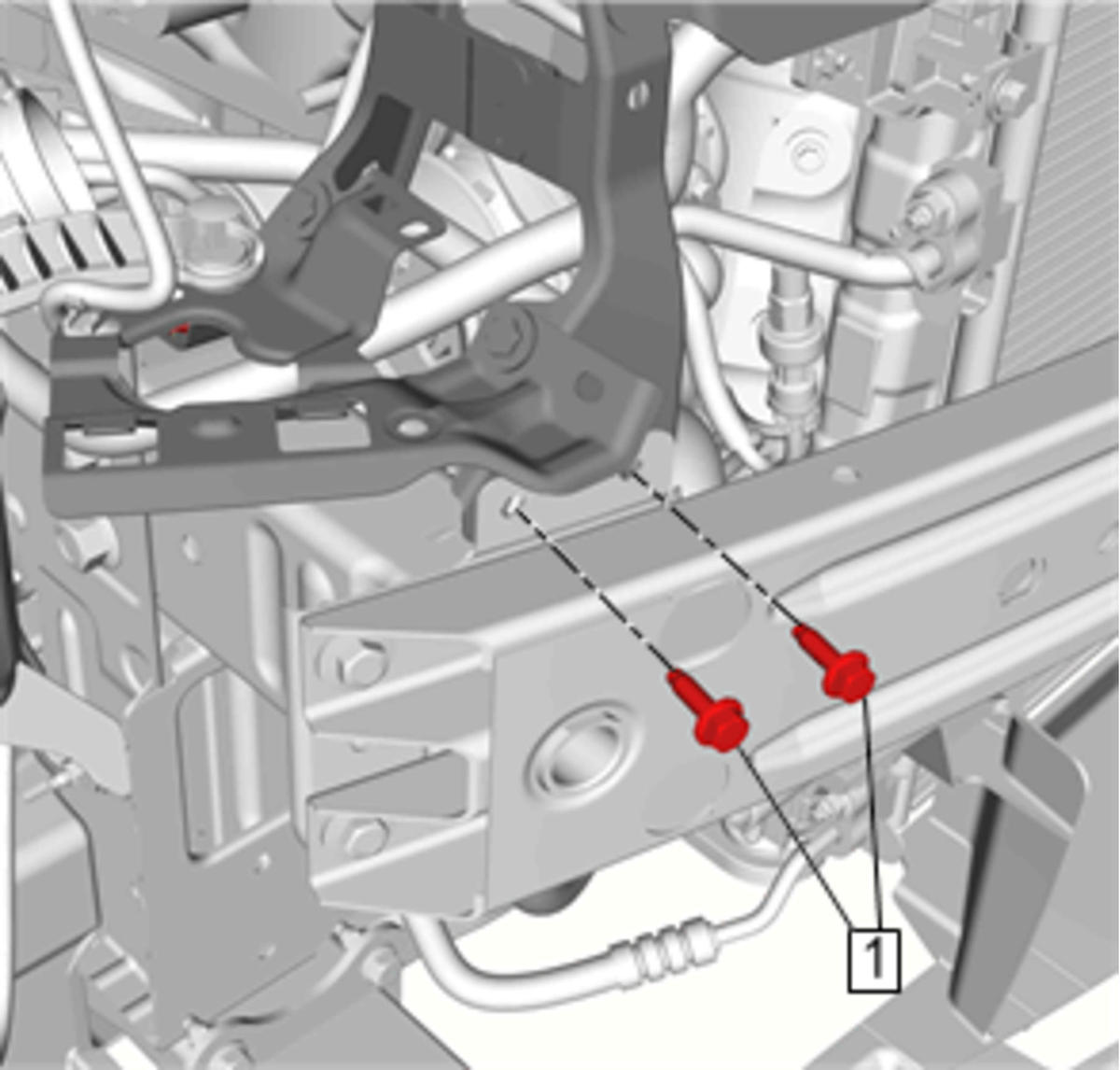

    Fig 5: Upper Tie Bar And Impact Bar Retaining Bolts Right Side
    GM4051697Courtesy of GENERAL MOTORS COMPANY
  10. Install the upper tie bar to impact bar retaining bolts left side (1) and tighten to 10 N.m (89 lb in).

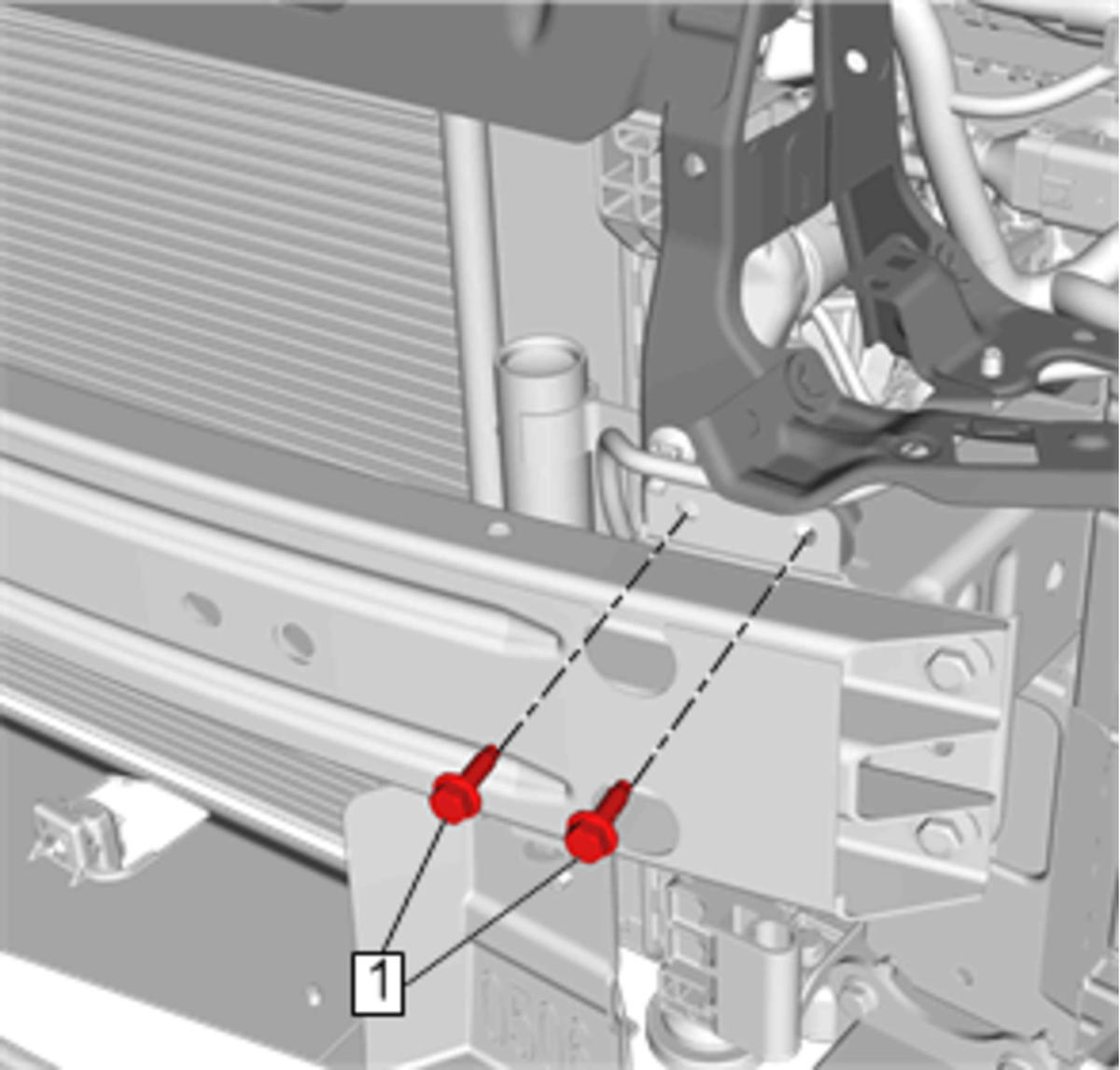

    Fig 6: Upper Tie Bar And Impact Bar Retaining Bolts Left Side
    GM4051694Courtesy of GENERAL MOTORS COMPANY
  11. Install the air cleaner inlet duct on the upper tie bar. Refer to Air Cleaner Inlet Duct Replacement .
  12. Position the surge tank and install the surge tank bolts. Refer to Radiator Surge Tank Replacement .
  13. Install the head lamps. Refer to Headlamp Replacement (Projection/SBV)Headlamp Replacement (BASE/SBM) .
  14. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  15. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
