Cooling Fan and Shroud Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

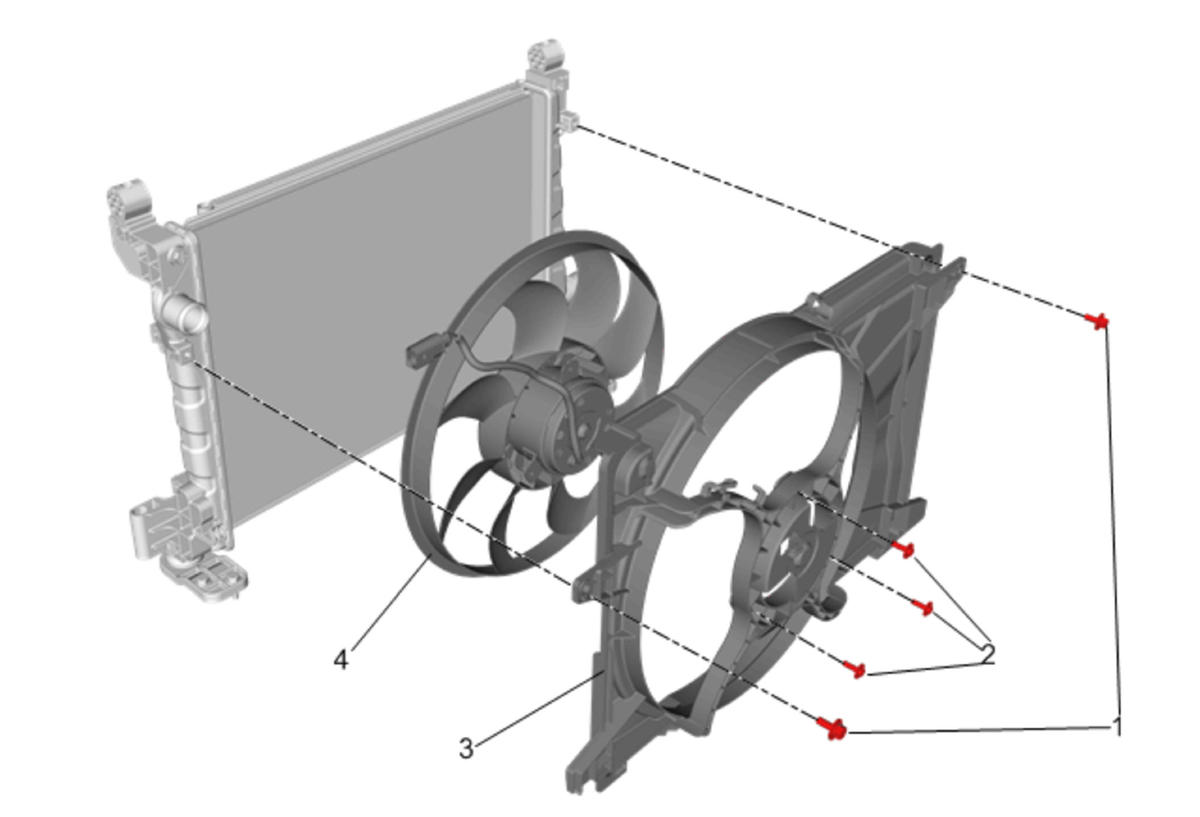

Fig 1: Cooling Fan and Shroud

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Drain the cooling system. Refer to Cooling System Draining and Filling . Remove the radiator surge tank bolts and reposition the surge tank. Refer to Radiator Surge Tank Replacement . Remove the radiator inlet hose from the radiator. Refer to Radiator Inlet Hose Replacement . If equipped, remove the transmission fluid cooler inlet and outlet pipe. Refer to Transmission Fluid Cooler Inlet and Outlet Pipe Replacement . Remove the oxygen sensor connector bracket. Disconnect any electrical connectors from the fan shroud.
1	Engine Coolant Fan Shroud Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Engine Coolant Fan Bolt (Qty: 3)
3	Engine Coolant Fan Shroud Procedure After removing the fan shroud bolts (1), remove the fan shroud assembly with a fan.
4	Engine Coolant Fan
