Transmission Fluid Cooler Inlet and Outlet Pipe Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

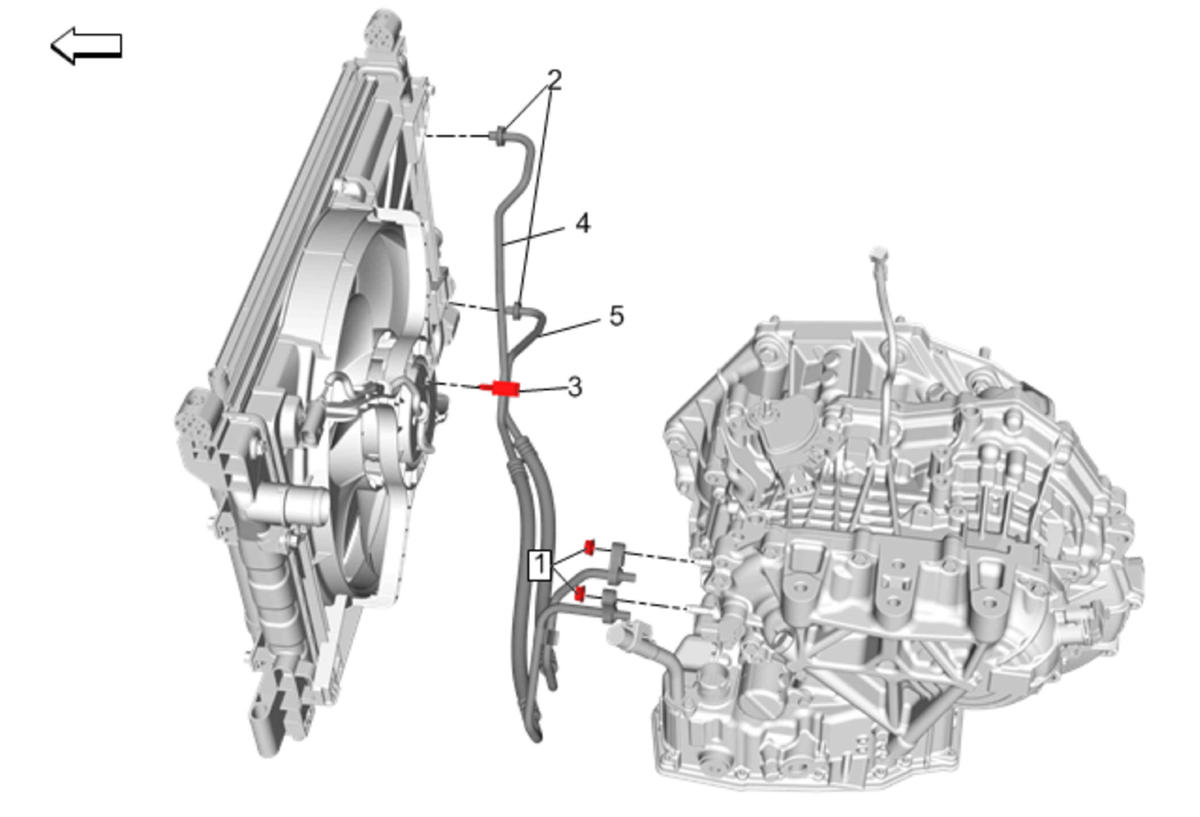

Fig 1: Transmission Fluid Cooler Inlet and Outlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement .
1	Transmission Fluid Cooler Pipe Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Transmission Fluid Cooler Pipe Quick Connect Procedure Remove the quick connect. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
3	Transmission Fluid Cooler Pipe Clip Procedure Remove the transmission fluid cooler pipe clip securing the line to the fan shroud.
4	Transmission Fluid Cooler Inlet Pipe Procedure Note the routing of the transmission line to ensure proper installation.
5	Transmission Fluid Cooler Outlet Pipe Procedure Note the routing of the transmission line to ensure proper installation. Inspect the transmission fluid level. Refer to Transmission Fluid Level and Condition Check .
