Outside Rearview Mirror Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

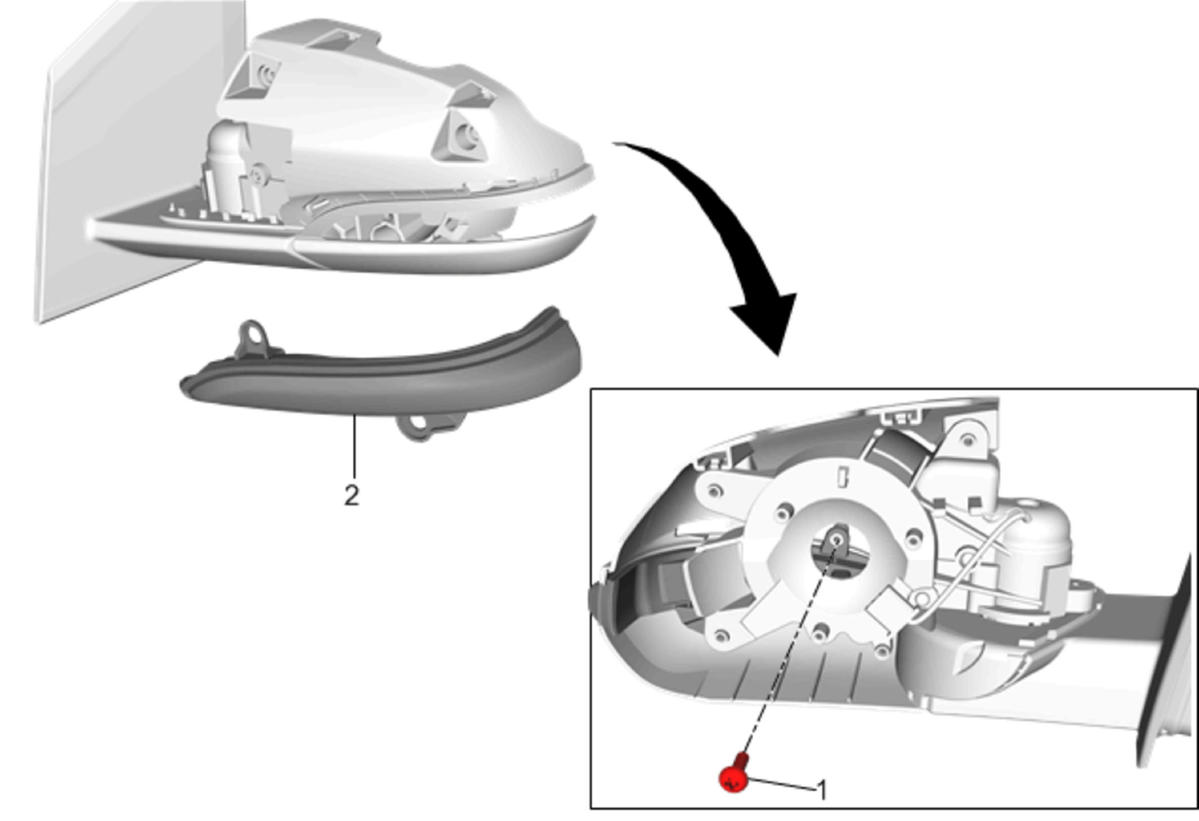

Fig 1: Outside Rearview Mirror Turn Signal Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement . Remove the outside rearview mirror inner actuator. Refer to Outside Rearview Mirror Inner Actuator Replacement . Remove the outside rearview mirror housing bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement . Remove the outside rearview mirror housing cover. Refer to Outside Rearview Mirror Housing Cover Replacement .
1	Outside Rearview Mirror Turn Signal Lamp Screw (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Outside Rearview Mirror Turn Signal Lamp

Callout

Component Name

Preliminary Procedures

Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement .
Remove the outside rearview mirror inner actuator. Refer to Outside Rearview Mirror Inner Actuator Replacement .
Remove the outside rearview mirror housing bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement .
Remove the outside rearview mirror housing cover. Refer to Outside Rearview Mirror Housing Cover Replacement .

Outside Rearview Mirror Turn Signal Lamp Screw (Qty: 1)

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Outside Rearview Mirror Turn Signal Lamp
