Outside Rearview Mirror Inner Actuator Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement . |
|

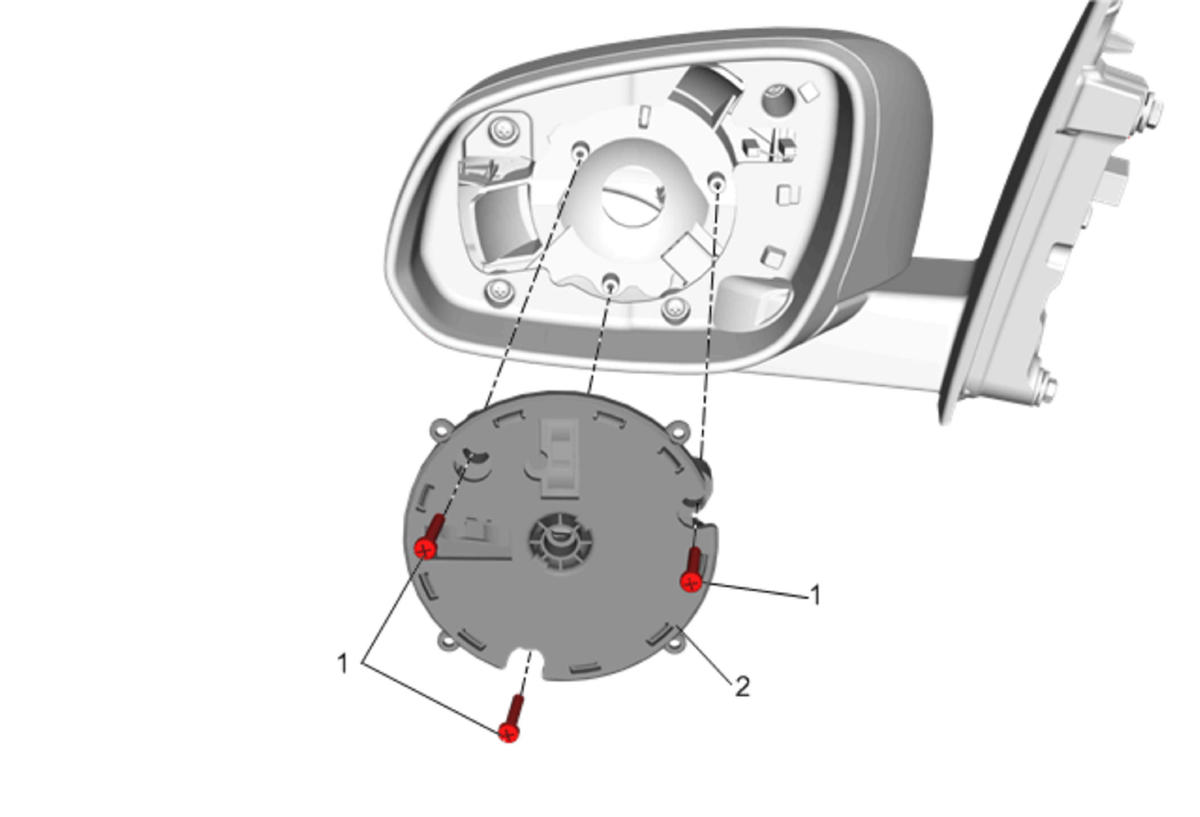

| 1 | Outside Rearview Mirror Inner Actuator Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Procedure Disconnect the outside mirror inner actuator electrical connectors. Tighten 5 N.m (44 lb in) |
| 2 | Outside Rearview Mirror Inner Actuator |
