Outside Rearview Mirror Housing Cover Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

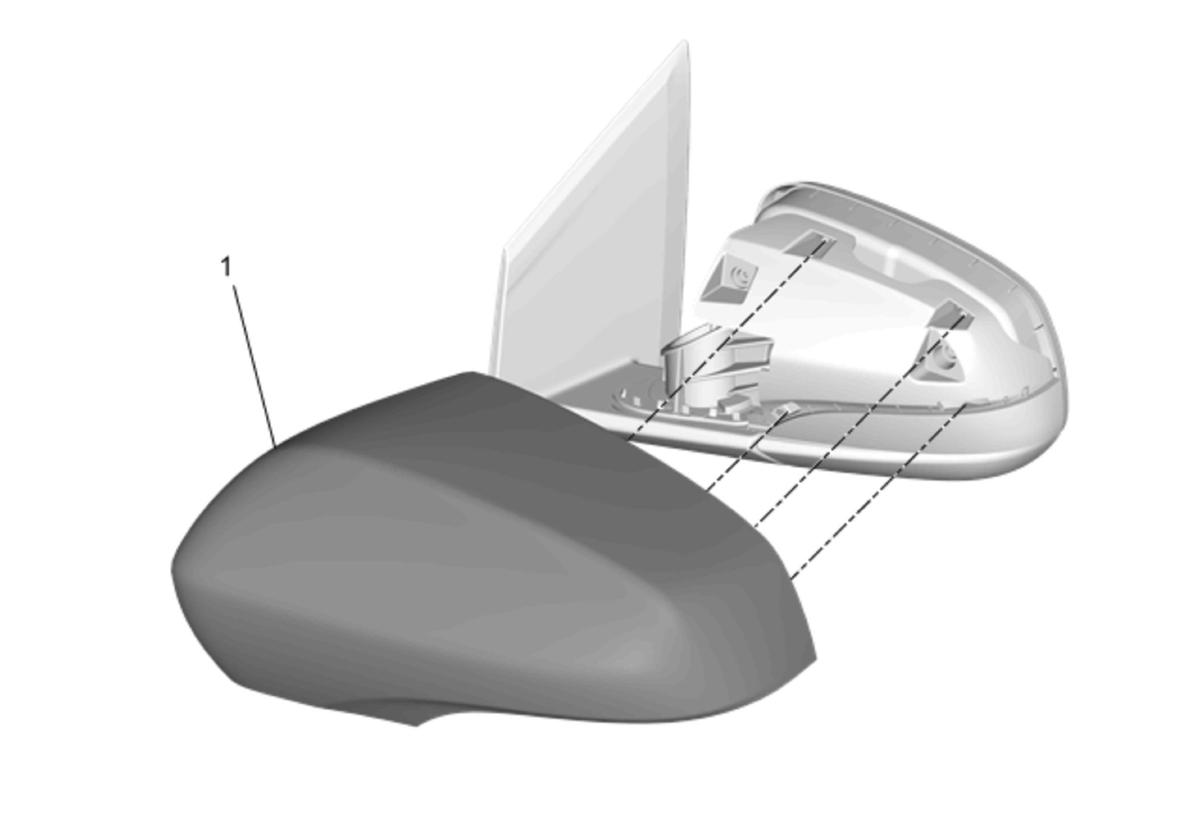

Fig 1: Outside Rearview Mirror Housing Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement . Remove the outside rearview mirror housing bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement .
1	Outside Rearview Mirror Housing Cover Procedure Using plastic pry tools, insert tools on top and bottom between the housing cover and mirror body. Pry carefully and equally on top and bottom to release housing toward the front of vehicle. Install housing cover to mirror body by applying pressure on housing cover toward the rear of vehicle until retainers are engaged.

Callout

Component Name

Preliminary Procedures

Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement .
Remove the outside rearview mirror housing bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement .

Outside Rearview Mirror Housing Cover

Procedure

Using plastic pry tools, insert tools on top and bottom between the housing cover and mirror body.
Pry carefully and equally on top and bottom to release housing toward the front of vehicle.
Install housing cover to mirror body by applying pressure on housing cover toward the rear of vehicle until retainers are engaged.
