Outside Rearview Mirror Glass Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

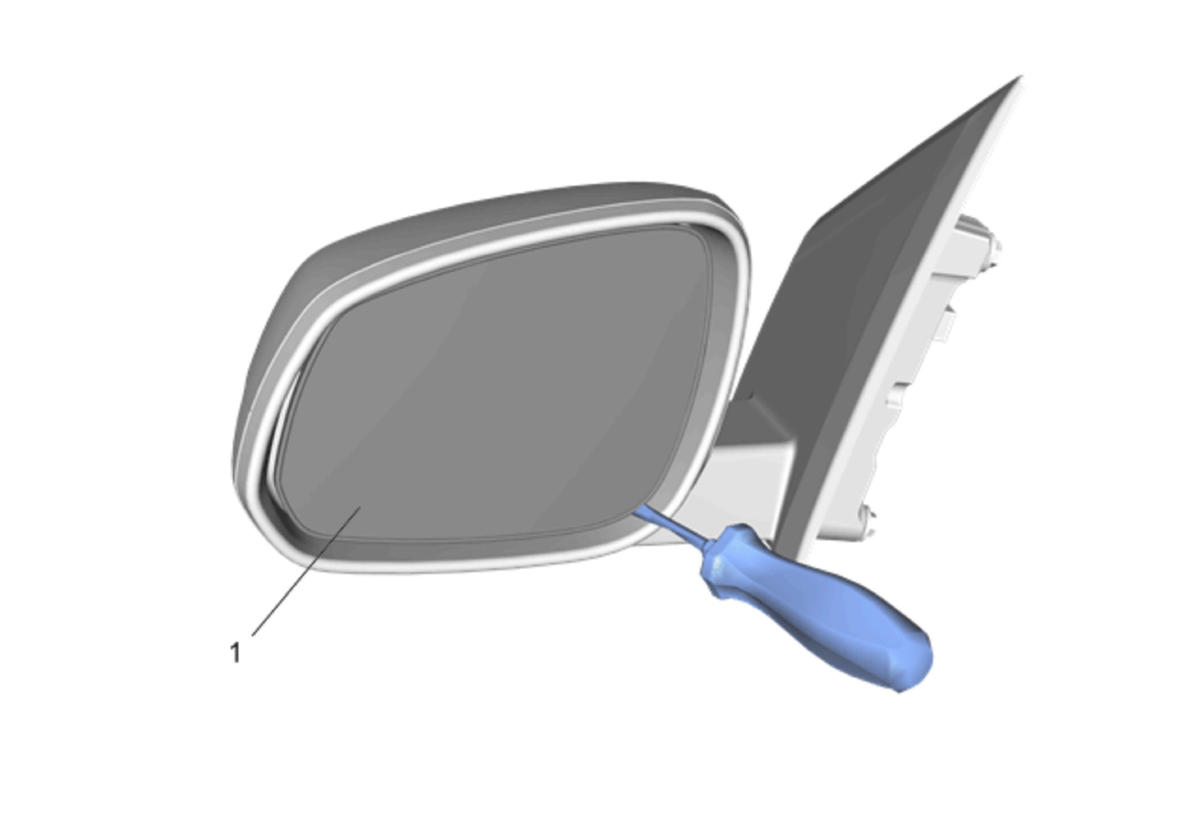

Fig 1: Outside Rearview Mirror Glass

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Outside Rearview Mirror Glass WARNING: Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury. Procedure Push the top outside of the mirror inward, insert a small flat-bladed driver at the bottom inside of mirror and pulling outward until the mirror releases from the motor/actuator. Disconnect the electrical connector. Place your hand on the back of the mirror housing. Using the flat part of your hand press inward until the mirror fully seats on the retaining tabs. Inspect the door for proper operation before installing the door trim panel.

Callout

Component Name

Outside Rearview Mirror Glass

WARNING: Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury.

Procedure

Push the top outside of the mirror inward, insert a small flat-bladed driver at the bottom inside of mirror and pulling outward until the mirror releases from the motor/actuator.
Disconnect the electrical connector.
Place your hand on the back of the mirror housing.
Using the flat part of your hand press inward until the mirror fully seats on the retaining tabs.
Inspect the door for proper operation before installing the door trim panel.
