Front Bumper Upper Fascia Replacement (Active)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

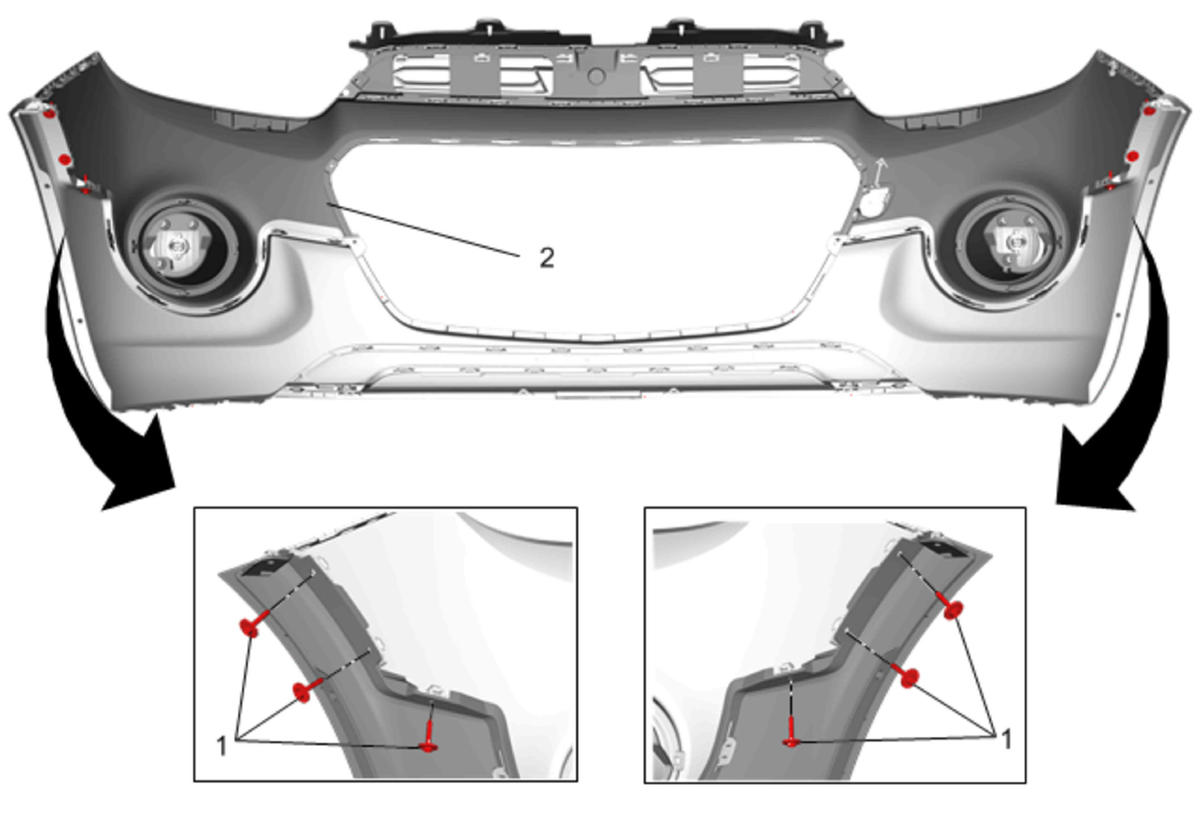

Fig 1: Front Bumper Upper Fascia (Active)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement . Remove the front upper grille. Refer to Front Upper Grille Replacement . Remove the front lower grille. Refer to Front Lower Grille Replacement . Remove the front fog lamp. Refer to Front Fog Lamp Replacement .
1	Front Bumper Fascia Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Bumper Upper Fascia Procedure Use a small flat-bladed tool to release the retainer from the front bumper lower fascia. NOTE: Please be careful to remove the front bumper upper fascia, It can be easily damaged.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement .
Remove the front upper grille. Refer to Front Upper Grille Replacement .
Remove the front lower grille. Refer to Front Lower Grille Replacement .
Remove the front fog lamp. Refer to Front Fog Lamp Replacement .

Front Bumper Fascia Bolt (Qty: 6)

CAUTION: Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Front Bumper Upper Fascia
Procedure
Use a small flat-bladed tool to release the retainer from the front bumper lower fascia.

NOTE: Please be careful to remove the front bumper upper fascia, It can be easily damaged.
