Front Upper Grille Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

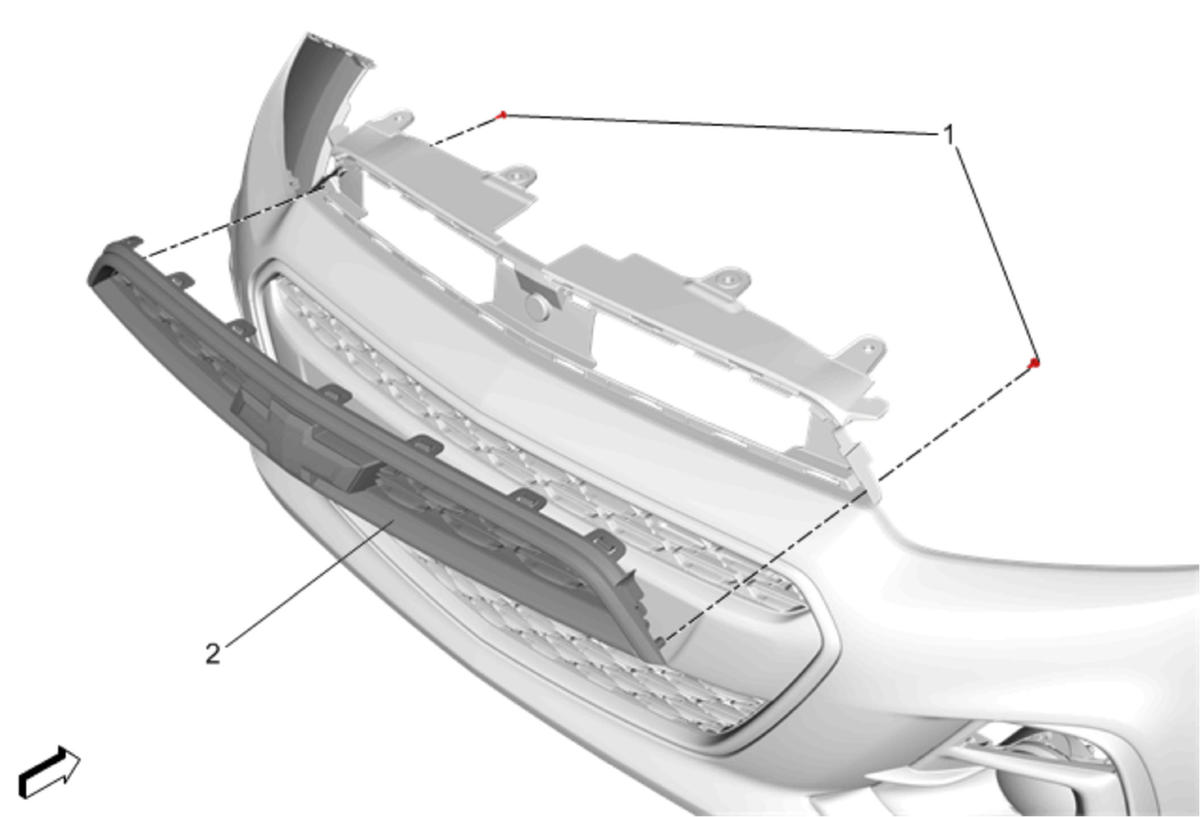

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Grille Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Radiator Grille Upper Procedure Release the locking tabs while pulling the radiator grille upper from the front fascia. |
