Front Lower Grille Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

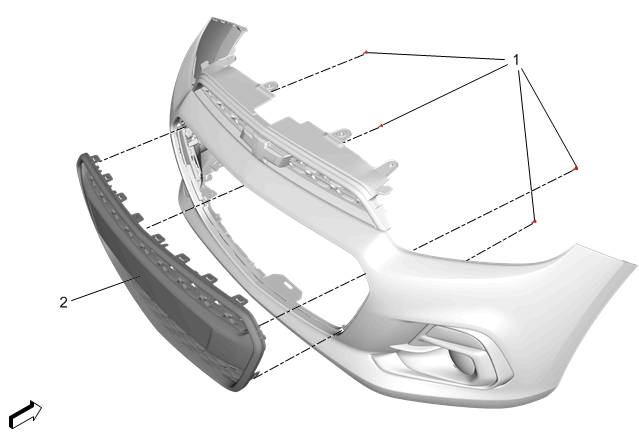

Fig 1: Front Lower Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the front bumper fascia energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement .
1	Front Lower Grille Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Lower Grille Procedure Release the locking tabs while pulling the front lower grille from the front fascia.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the front bumper fascia energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement .

Front Lower Grille Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Front Lower Grille
Procedure
Release the locking tabs while pulling the front lower grille from the front fascia.
