Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reposition the radiator surge tank. Refer to Radiator Surge Tank Replacement .
  2. Remove the hood primary and secondary latch to disconnect the cable. Refer to Hood Primary and Secondary Latch Replacement .
  3. Disconnect the hood primary latch release cable (1) from the hood primary and secondary latch.

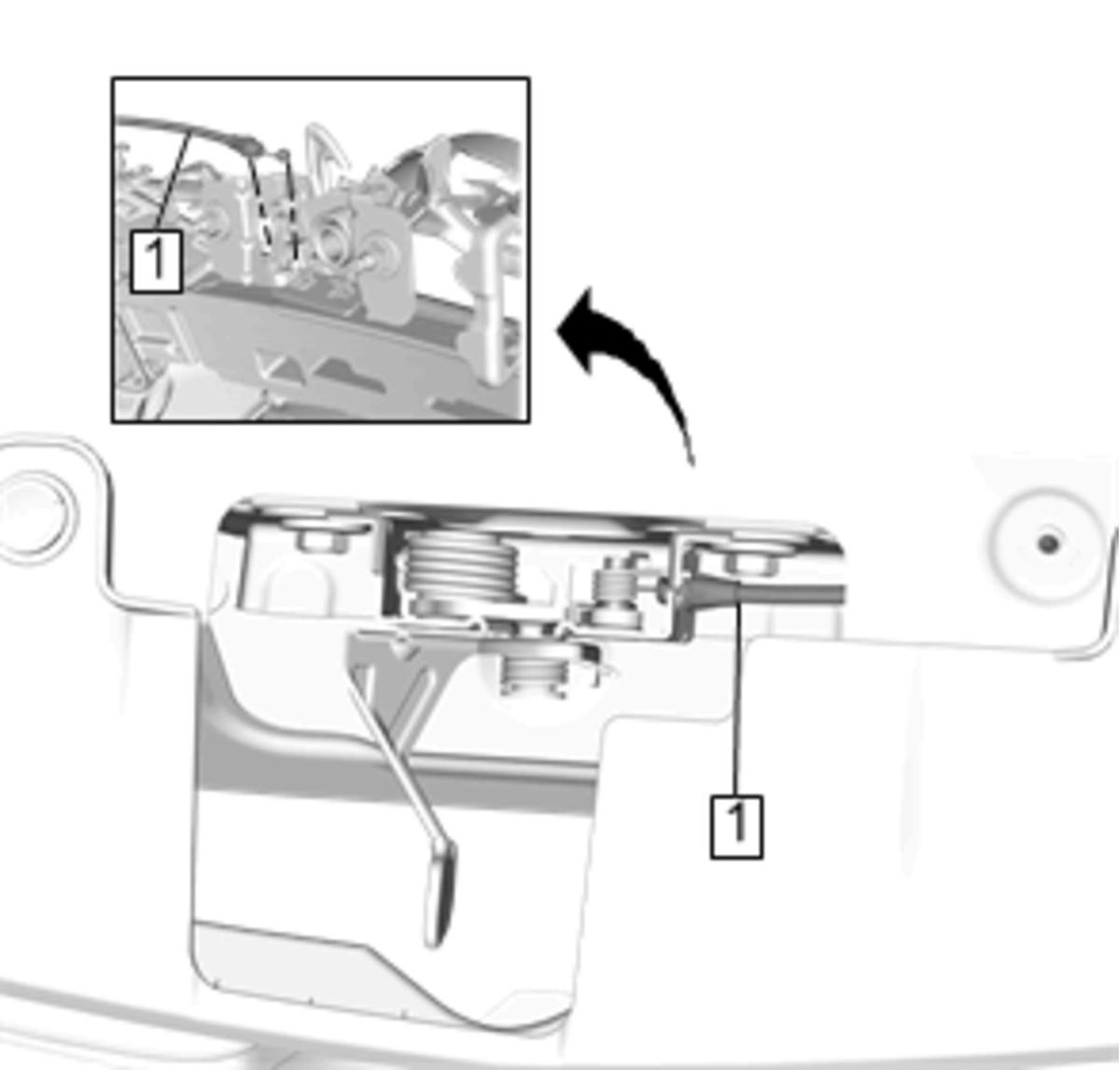

    Fig 1: Hood Primary Latch Release Cable And Hood Primary And Secondary Latch
    GM4024907Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the hood primary latch release cable (1) from the hood release cable retainers (2).

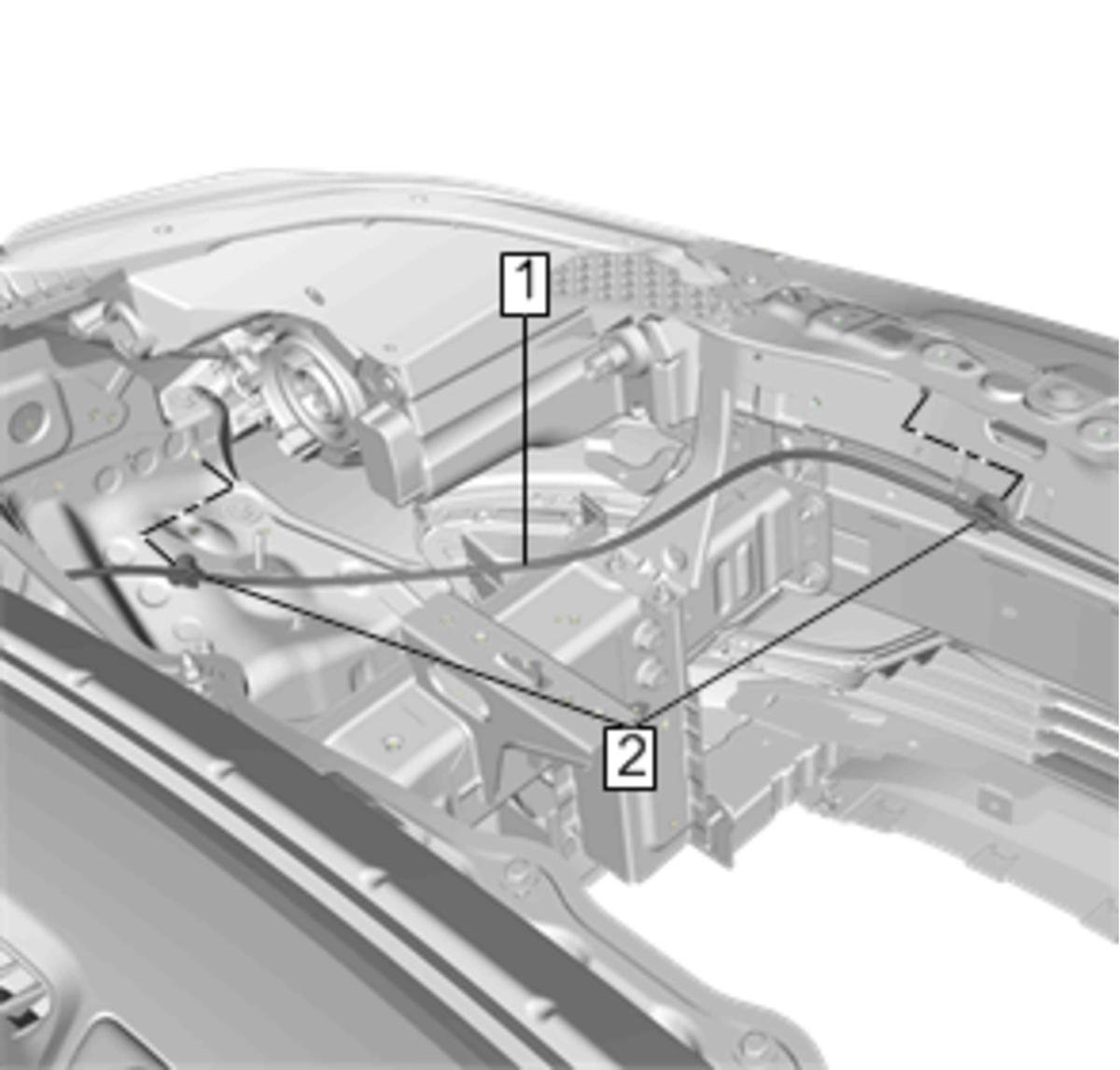

    Fig 2: Hood Primary Latch Release Cable And Hood Release Cable Retainers
    GM4024908Courtesy of GENERAL MOTORS COMPANY
  5. Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
  6. Remove the hood primary latch release cable handle. Refer to Hood Primary Latch Release Cable Handle Replacement .
  7. Remove the front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement .
  8. Remove the body control module bracket. Refer to Body Control Module Bracket Replacement
  9. Remove hood primary latch release cable grommet (3) from the dash panel.

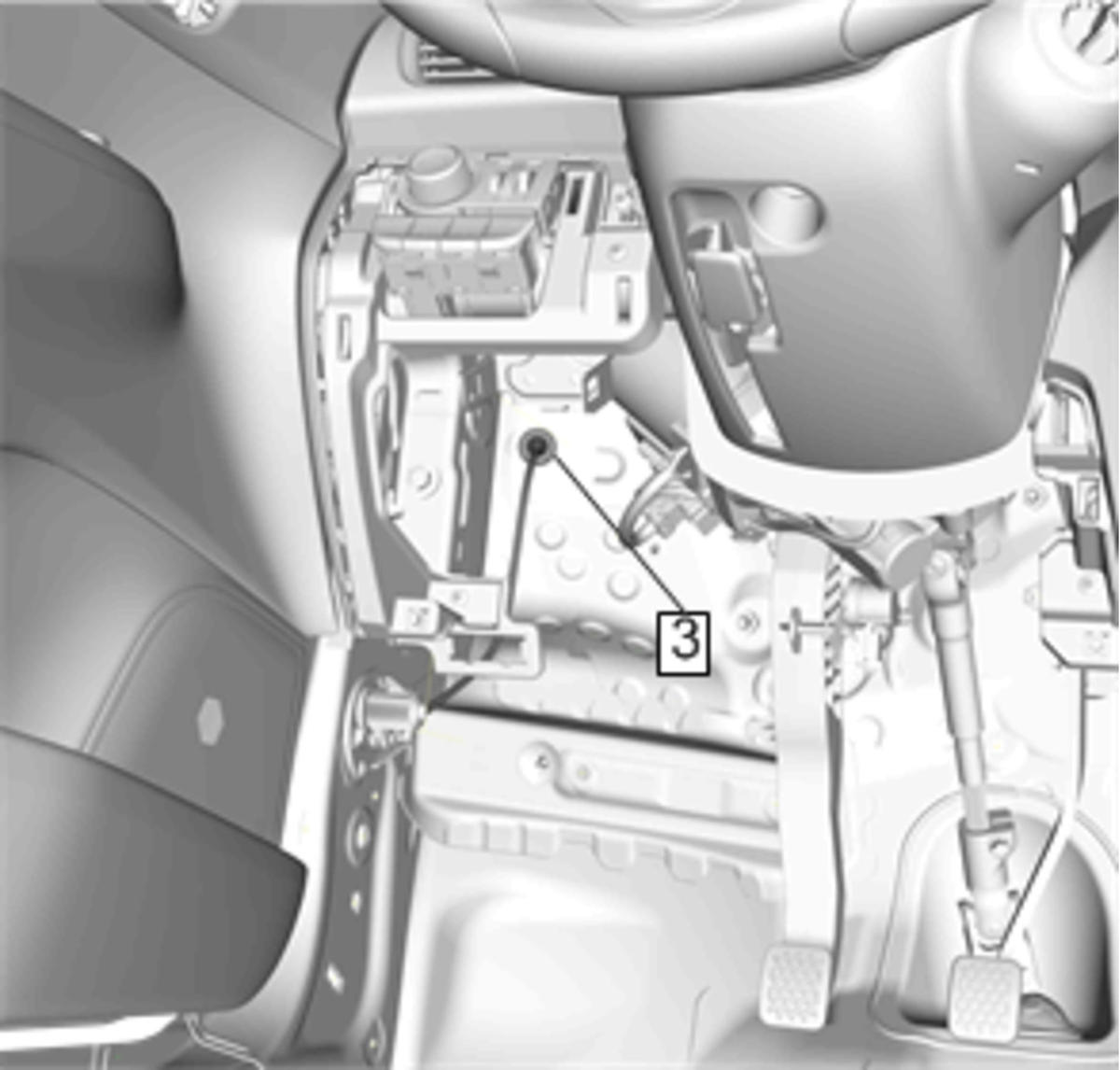

    Fig 3: Hood Primary Latch Release Cable And Hood Release Cable Retainers
    GM4024909Courtesy of GENERAL MOTORS COMPANY
  10. Remove the Hood primary latch release cable handle screw (4) and remove the hood primary latch release cable (1) from the Hinge pillar inner panel

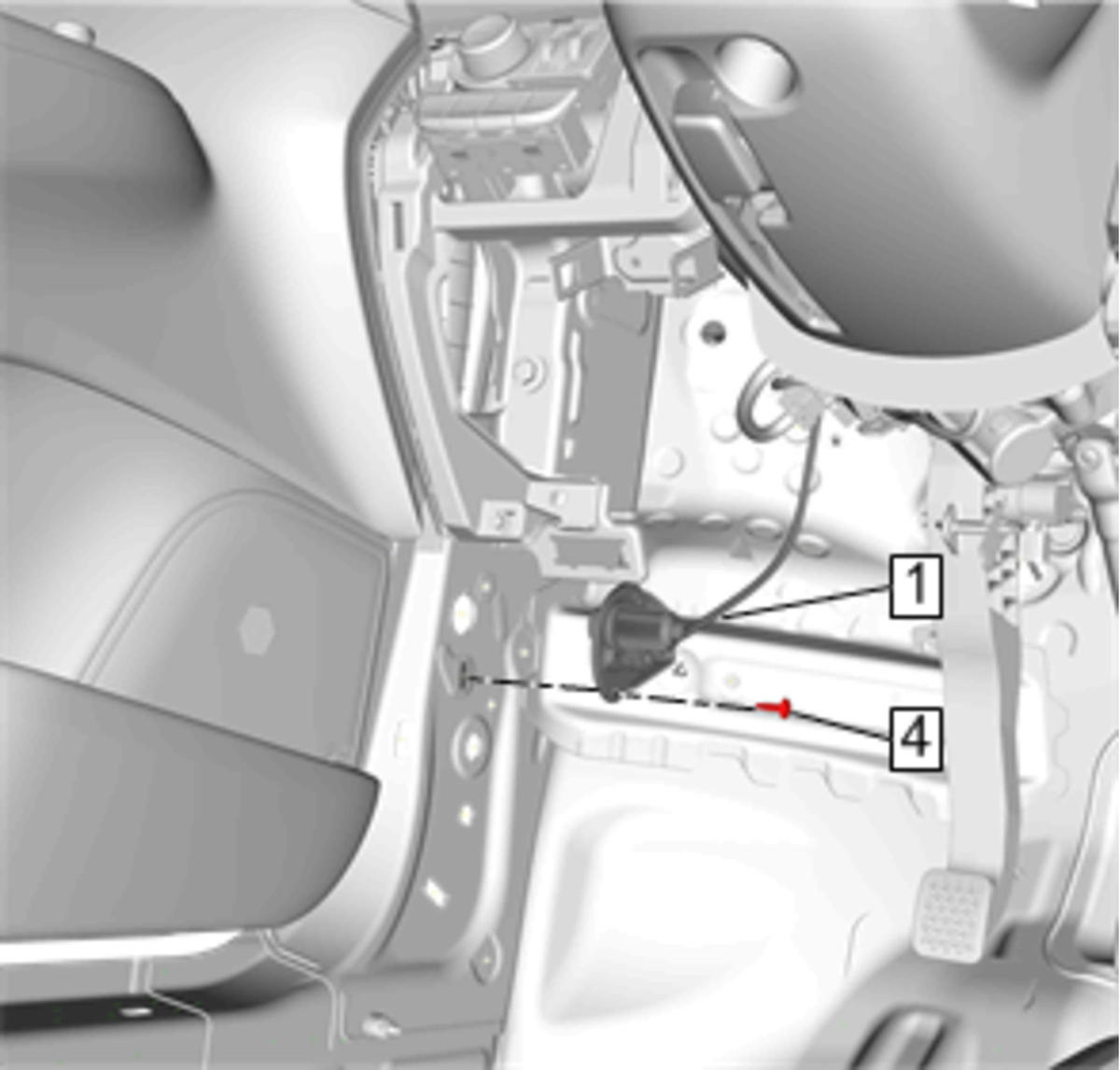

    Fig 4: Hood Primary Latch Release Cable Handle Screw
    GM4024910Courtesy of GENERAL MOTORS COMPANY
