Hood Primary and Secondary Latch Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

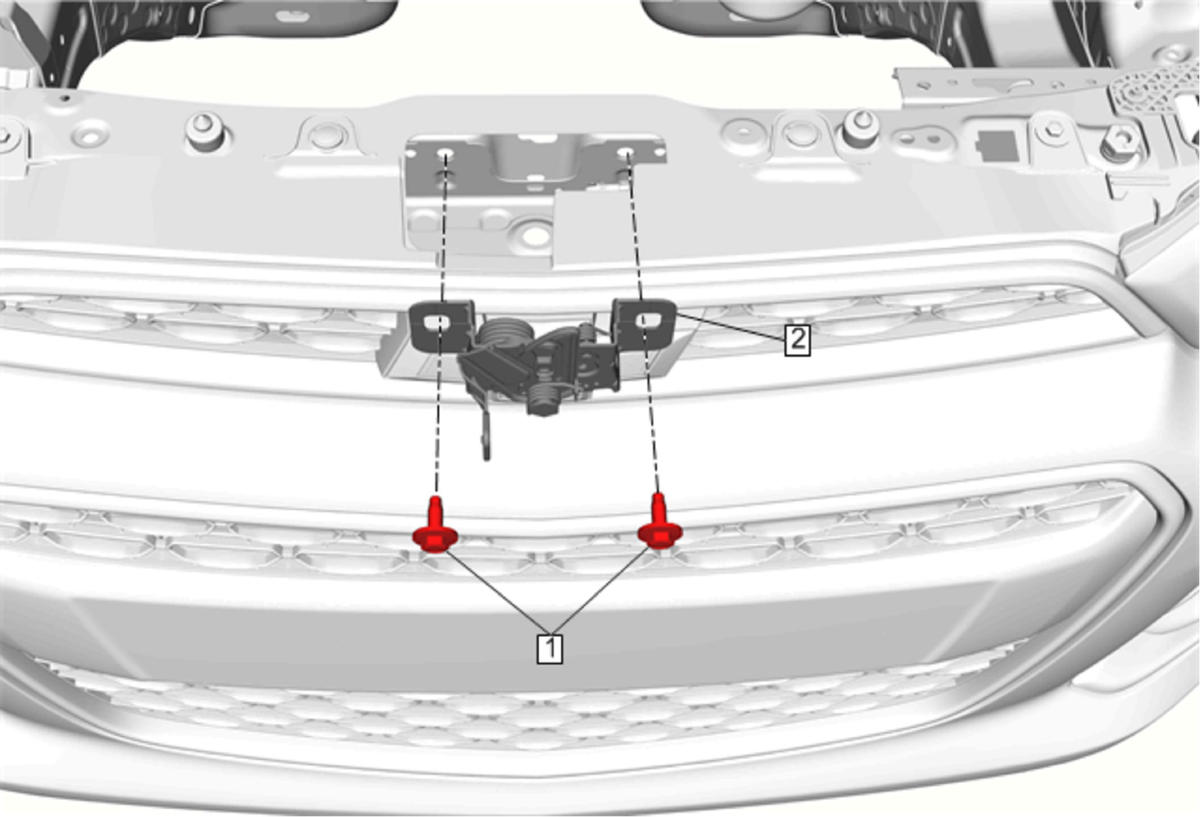

| Callout | Component Name |
|---|---|
| 1 | Hood Primary and Secondary Latch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 22 N.m (16 lb ft) |
| 2 | Hood Primary and Secondary Latch Procedure Disconnect the release cable from the hood primary latch. |
