Hood Hinge Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

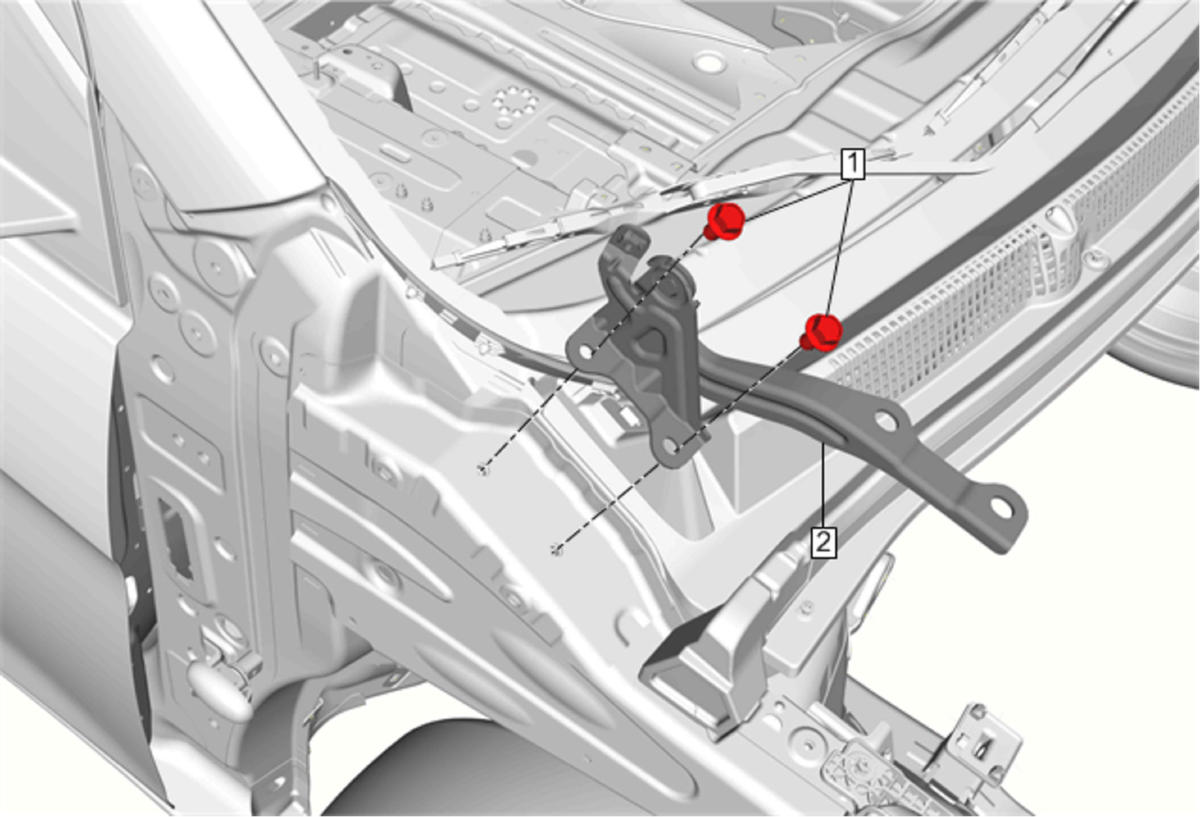

Fig 1: Hood Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood. Refer to Hood Replacement . Remove the front fender. Refer to Front Fender Replacement Front Fender Replacement (Active) .
1	Hood Hinge Bolt (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Hinge Procedure Adjust the hood and hinge if needed. Refer to Hood Adjustment .

Callout

Component Name

Preliminary Procedures

Remove the hood. Refer to Hood Replacement .
Remove the front fender. Refer to Front Fender Replacement Front Fender Replacement (Active) .

Hood Hinge Bolt (Qty 2)

CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Hood Hinge
Procedure
Adjust the hood and hinge if needed. Refer to Hood Adjustment .
